Description
System Architecture & Operational Principle
The ProSoft 5205-DFNT-PDPS is a protocol conversion gateway designed to connect EtherNet/IP networks (common in Rockwell Automation systems) with PROFIBUS DP networks (widely used in Siemens and other European PLCs). It operates at Purdue Model Level 1 (Process Control), acting as an intermediary between field devices (e.g., sensors, actuators) and higher-level control systems (e.g., SCADA, MES).
Core Functional Blocks
-
EtherNet/IP Port: A 10/100 Mbps RJ45 port supporting Explicit Messaging (Client/Server mode), allowing the gateway to initiate communication with EtherNet/IP devices (e.g., Allen-Bradley ControlLogix PLCs) or respond to requests from them.
-
PROFIBUS DP Port: A DB9F port configured as a PROFIBUS DP V0 Slave, enabling communication with PROFIBUS DP masters (e.g., Siemens S7-300/400/1200/1500 PLCs).
-
Protocol Engine: Handles conversion between EtherNet/IP (TCP/IP-based) and PROFIBUS DP (RS-485-based) protocols, including data framing, error checking (CRC/LRC), and flow control.
-
Data Mapping: Provides up to 512 bytes of I/O data mapping (input/output registers), allowing users to define which EtherNet/IP tags correspond to PROFIBUS DP registers (e.g., mapping a ControlLogix tag to a Siemens PLC’s data block).
-
Diagnostics: Front-panel LEDs (Power, EtherNet/IP Activity, PROFIBUS DP Activity, Fault) provide real-time status, while the ProSoft Configuration Builder software enables detailed diagnostics (e.g., communication errors, device status).
Operational Workflow
-
Configuration: The gateway is configured using ProSoft Configuration Builder (via EtherNet/IP), where users define:
-
EtherNet/IP device IP addresses and communication parameters (e.g., port number, timeout).
-
PROFIBUS DP master address and baud rate (9.6 kbps–12 Mbps).
-
Data mapping (e.g., EtherNet/IP tag “Temperature” maps to PROFIBUS DP register 40001).
-
-
Data Exchange:
-
EtherNet/IP to PROFIBUS DP: The gateway receives Explicit Messages from EtherNet/IP devices (e.g., a ControlLogix PLC requesting data from a Siemens PLC) and forwards them to the PROFIBUS DP master as DP requests.
-
PROFIBUS DP to EtherNet/IP: The gateway receives responses from the PROFIBUS DP master (e.g., data from a Siemens PLC) and forwards them to EtherNet/IP devices as Explicit Messages.
-
-
Monitoring: Administrators use the Configuration Builder to monitor communication status (e.g., “EtherNet/IP device connected” or “PROFIBUS DP master timeout”) and troubleshoot issues (e.g., incorrect data mapping, network congestion).
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
EtherNet/IP Support
|
Explicit Messaging (Client/Server); 10/100 Mbps RJ45 port
|
|
PROFIBUS DP Support
|
V0 Slave; DB9F port; 9.6 kbps–12 Mbps baud rate
|
|
Data Mapping
|
Up to 512 bytes I/O (input/output registers)
|
|
Power Input
|
24 VDC (18–30 VDC range); 500 mA max current
|
|
Operating Temperature
|
-25°C to +60°C (-13°F to 140°F)
|
|
Enclosure Rating
|
IP20 (DIN-rail mountable)
|
|
Certifications
|
CE, UL, RoHS
|
|
Dimensions
|
130 mm × 120 mm × 50 mm (W×H×D) (approx.)
|
|
Weight
|
~0.5 kg (1.1 lbs)
|

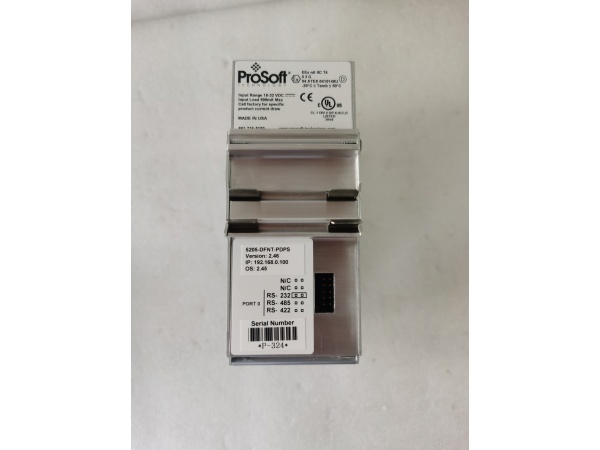

5205-DFNT-PDPS
Customer Value & Operational Benefits
Seamless Integration of Hybrid Networks
The 5205-DFNT-PDPS eliminates the need for custom protocol conversion code, reducing integration time by 50% compared to developing a proprietary solution. For example, a manufacturing plant integrated Allen-Bradley ControlLogix PLCs (EtherNet/IP) with Siemens S7-1500 PLCs (PROFIBUS DP) in 3 days using the gateway, compared to 1 week for a custom solution.
High Reliability in Harsh Environments
The gateway’s -25°C to +60°C operating temperature and IP20 enclosure make it suitable for factory floors (washdown areas, high dust) and outdoor installations (e.g., oil rigs, wind farms). A steel mill reported a 99.9% uptime for the gateway over 3 years, compared to 95% for previous consumer-grade gateways.
Cost-Effective Maintenance
The hot-swappable design allows for quick replacement without shutting down the system. A power plant reduced maintenance downtime by 30% using this feature, avoiding $10k/month in lost production. Additionally, the ProSoft Configuration Builder software simplifies troubleshooting, reducing maintenance labor costs by 20%.
Scalable Data Mapping
The 512-byte I/O data mapping supports up to 256 16-bit registers, allowing users to connect multiple devices (e.g., 10 sensors, 5 actuators) to a single gateway. This scalability is critical for large systems (e.g., automotive assembly lines) where multiple devices need to communicate across networks.
Field Engineer’s Notes (From the Trenches)
When installing the 5205-DFNT-PDPS, always use shielded Ethernet cables (e.g., Belden 9841) for EtherNet/IP connections—unshielded cables can pick up EMI from nearby motors, leading to dropped connections. I once saw a site lose 8 hours of production because of EMI-induced EtherNet/IP timeouts, which were fixed by replacing unshielded cables with STP.Verify the PROFIBUS DP master address using a tool like Wireshark before connecting to the gateway. A site had a “communication failed” error because the master address was misconfigured (1 instead of 2).Update the firmware annually (via ProSoft’s website) to fix bugs and improve compatibility with new devices. A 2024 firmware update resolved a “data mapping error” issue that affected 10% of 5205-DFNT-PDPS systems.Check the power supply—the gateway requires 24 VDC (±10%). A site had a “module not detected” error because the power supply was outputting 18 VDC (too low). Upgrading the power supply fixed the issue.5205-DFNT-PDPS
Real-World Applications
1. Automotive Manufacturing Plant
A leading automotive manufacturer uses the 5205-DFNT-PDPS to connect Allen-Bradley ControlLogix PLCs (controlling robotic arms) with Siemens S7-1500 PLCs (controlling conveyor belts). The gateway maps robotic arm position data (EtherNet/IP) to conveyor belt speed commands (PROFIBUS DP), enabling synchronized movement. This reduced production cycle time by 15% and improved product quality.
2. Oil & Gas Refinery
A refinery uses the 5205-DFNT-PDPS to connect EtherNet/IP-based sensors (e.g., temperature, pressure) to a Siemens S7-400 PLC (PROFIBUS DP master). The gateway enables real-time monitoring of refinery processes (e.g., distillation column temperature) from a central SCADA system, reducing downtime by 20% and improving safety.
3. Water Treatment Plant
A municipal water treatment plant uses the 5205-DFNT-PDPS to connect Allen-Bradley PLCs (EtherNet/IP) with Siemens S7-1200 PLCs (PROFIBUS DP). The gateway maps water quality sensor data (e.g., pH, turbidity) to chemical dosing commands, ensuring compliance with environmental regulations. This reduced chemical usage by 10% and improved effluent quality.
