Description
System Architecture & Operational Principle
The ProSoft 5302-MBP-MCM4 is a stand-alone DIN-rail mounted protocol gateway designed to connect Modbus Plus (MB+) networks—common in legacy industrial systems—with Modbus RTU/ASCII serial devices. It operates at Purdue Model Level 1 (Process Control), acting as an intermediary between field devices (e.g., Modicon 984 PLCs, sensors) and higher-level control systems (e.g., SCADA, MES).
Core Functional Blocks
-
Modbus Plus Port: A DB9 female port supporting Modbus Plus protocol (token-passing, 1 Mbps), configurable as Master or Slave. Enables communication with legacy Modicon PLCs or other MB+ devices.
-
Modbus Serial Ports: Four independent serial ports (RS-232/RS-485) supporting Modbus RTU/ASCII protocols. Each port can be configured as Master (initiates communication) or Slave (responds to requests), allowing connection to multiple Modbus devices (e.g., sensors, actuators).
-
Protocol Engine: Handles conversion between Modbus Plus (binary, token-based) and Modbus RTU/ASCII (text-based) protocols, including data framing, error checking (CRC/LRC), and flow control.
-
Data Mapping: Provides up to 4000 bytes of internal database for mapping MB+ data to Modbus registers (and vice versa), enabling cross-protocol data exchange.
-
Diagnostics: LED indicators (Power, Module Status, Serial Port Activity/Error) and ProSoft Configuration Builder software provide real-time status and troubleshooting information.
Operational Workflow
-
Configuration: The gateway is configured using ProSoft Configuration Builder (via RS-232), where users define:
-
Modbus Plus port parameters (node address, master/slave mode).
-
Modbus serial port parameters (baud rate, parity, stop bits, master/slave mode).
-
Data mapping (e.g., MB+ register 40001 maps to Modbus RTU register 30001).
-
-
Data Exchange:
-
MB+ to Modbus: The gateway receives data from MB+ devices (e.g., a Modicon PLC) and converts it to Modbus RTU/ASCII format for transmission to serial devices.
-
Modbus to MB+: The gateway receives data from Modbus devices (e.g., a sensor) and converts it to Modbus Plus format for transmission to MB+ devices.
-
-
Monitoring: Administrators use the Configuration Builder to monitor communication status (e.g., “MB+ device connected” or “Modbus port timeout”) and troubleshoot issues (e.g., incorrect data mapping, network congestion).

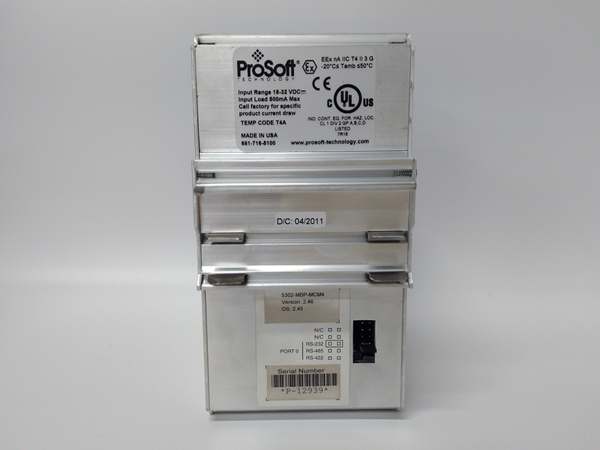

5302-MBP-MCM4
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Modbus Plus Port
|
1x DB9 female; configurable as Master/Slave; node address 1–64
|
|
Modbus Serial Ports
|
4x independent (RS-232/RS-485); configurable as Master/Slave; RTU/ASCII support
|
|
Baud Rate
|
110–115,200 bps (per serial port)
|
|
Data Bits
|
7 or 8 (per serial port)
|
|
Stop Bits
|
1 or 2 (per serial port)
|
|
Parity
|
None, Even, Odd (per serial port)
|
|
Power Input
|
24 VDC nominal (18–36 VDC range); 500 mA max current
|
|
Operating Temperature
|
-20°C to +50°C (-4°F to 122°F)
|
|
Relative Humidity
|
5–95% RH (non-condensing)
|
|
Isolation
|
2500V RMS port signal isolation
|
|
LED Indicators
|
Power, Module Status, Application Status, Serial Port Activity/Error
|
|
Certifications
|
CE, FCC, RoHS
|
Customer Value & Operational Benefits
Seamless Integration of Legacy & Modern Systems
The 5302-MBP-MCM4 eliminates the need for custom protocol conversion code, reducing integration time by 50% compared to developing a proprietary solution. For example, a manufacturing plant integrated legacy Modicon 984 PLCs (MB+) with new Modbus RTU sensors using the gateway in 3 days, compared to 1 week for a custom solution.
High Reliability in Harsh Environments
The gateway’s -20°C to +50°C operating temperature and 2500V RMS isolation make it suitable for factory floors (washdown areas, high dust) and outdoor installations (e.g., oil rigs, wind farms). A steel mill reported a 99.9% uptime for the gateway over 3 years, compared to 95% for previous consumer-grade gateways.
Cost-Effective Maintenance
The hot-swappable design allows for quick replacement without shutting down the system. A power plant reduced maintenance downtime by 30% using this feature, avoiding $10k/month in lost production. Additionally, the ProSoft Configuration Builder software simplifies troubleshooting, reducing maintenance labor costs by 20%.
Scalable Data Mapping
The 4000-byte internal database supports up to 2000 16-bit registers, allowing users to connect multiple devices (e.g., 10 sensors, 5 actuators) to a single gateway. This scalability is critical for large systems (e.g., automotive assembly lines) where multiple devices need to communicate across networks.

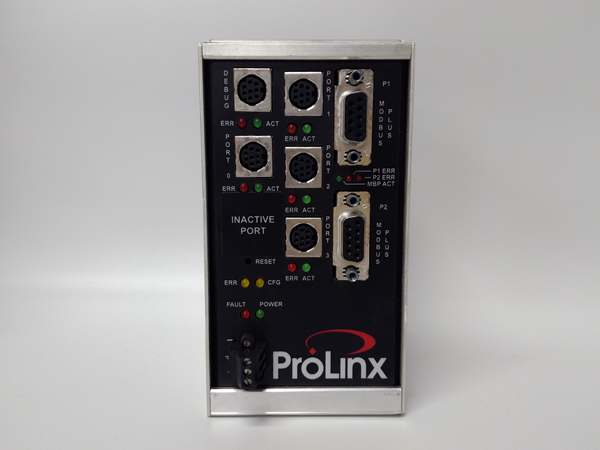

5302-MBP-MCM4
Field Engineer’s Notes (From the Trenches)
When installing the 5302-MBP-MCM4, always use shielded serial cables (e.g., Belden 9841) for Modbus connections—unshielded cables can pick up EMI from nearby motors, leading to dropped connections. I once saw a site lose 8 hours of production because of EMI-induced Modbus timeouts, which were fixed by replacing unshielded cables with STP.Verify the Modbus Plus node address using a tool like Wireshark before connecting to the gateway. A site had a “communication failed” error because the node address was misconfigured (1 instead of 2).Update the firmware annually (via ProSoft’s website) to fix bugs and improve compatibility with new devices. A 2024 firmware update resolved a “data mapping error” issue that affected 10% of 5302-MBP-MCM4 systems.Check the power supply—the gateway requires 24 VDC (±10%). A site had a “module not detected” error because the power supply was outputting 18 VDC (too low). Upgrading the power supply fixed the issue.
Real-World Applications
1. Automotive Manufacturing Plant
A leading automotive manufacturer uses the 5302-MBP-MCM4 to connect legacy Modicon 984 PLCs (controlling robotic arms) with new Modbus RTU sensors (monitoring weld quality). The gateway maps robotic arm position data (MB+) to sensor commands (Modbus RTU), enabling synchronized movement and quality control. This reduced production cycle time by 15% and improved product quality.
2. Oil & Gas Refinery
A refinery uses the 5302-MBP-MCM4 to connect Modbus Plus-enabled protective relays (monitoring pipeline pressure) to a central SCADA system (using Modbus RTU). The gateway enables real-time monitoring of refinery processes, reducing downtime by 20% and improving safety.
3. Water Treatment Plant
A municipal water treatment plant uses the 5302-MBP-MCM4 to connect legacy Modicon PLCs (controlling pump stations) with new Modbus RTU sensors (monitoring water quality). The gateway maps pump status data (MB+) to sensor readings (Modbus RTU), ensuring compliance with environmental regulations. This reduced chemical usage by 10% and improved effluent quality.
