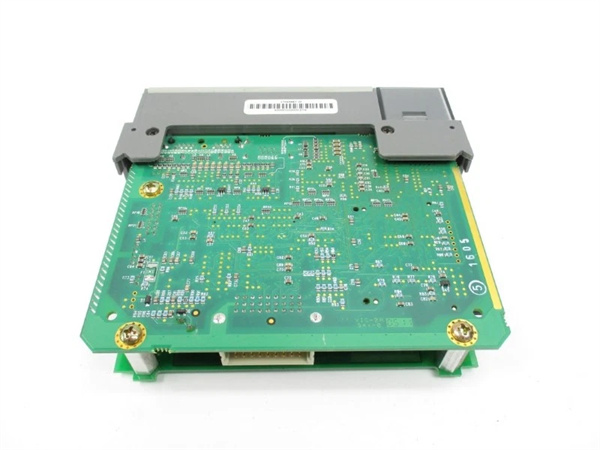

PROSOFT MVI46-MNET

Description

1. Product Introduction

The PROSOFT MVI46-MNET is a dedicated Ethernet communication module developed by ProSoft Technology, specifically engineered to bridge the communication gap between Allen-Bradley SLC 500 and MicroLogix 1500 programmable logic controllers (PLCs) and Modbus TCP/IP-based industrial networks. Unlike its ControlLogix-compatible counterpart (MVI56E-MNET), this module is tailored to the compact, cost-sensitive ecosystems of SLC 500/MicroLogix platforms, which are widely used in small-to-medium industrial applications.

In industrial environments where legacy SLC 500/MicroLogix PLCs remain operational—often due to their reliability and low maintenance costs—the MVI46-MNET so

lves a critical challenge: enabling these serial-centric controllers to interact with modern Modbus TCP/IP devices (e.g., remote sensors, SCADA systems, third-party VFDs). By translating between the PLC’s native backplane communication and Modbus TCP/IP, the module extends the lifespan of $50k+ worth of existing equipment, eliminating the need for premature PLC replacements. This makes it an ideal solution for food processing lines, small manufacturing cells, and water treatment pump stations undergoing phased network modernization.

2. Functional Features

2.1 Modbus TCP/IP Client/Server Dual Mode

The MVI46-MNET supports both Modbus TCP/IP client and server operations, offering unmatched flexibility for diverse communication needs. As a client, it initiates data requests to Modbus TCP servers (e.g., a central SCADA system or Modbus-enabled energy meters). For example, a small packaging plant uses the module as a client to poll 12 Modbus TCP weight sensors (monitoring package fill levels) every 500 ms, sending the data to a MicroLogix 1500 PLC for fill valve control. As a server, it allows external Modbus clients (e.g., a remote HMI) to access PLC data—such as production counts or machine status—without direct PLC programming. This dual mode eliminates the need for separate client/server modules, cutting hardware costs by 40%.

2.2 SLC 500/MicroLogix Backplane Integration

Optimized for Allen-Bradley’s SLC 500 (1746 chassis) and MicroLogix 1500 (1761 expansion) platforms, the MVI46-MNET plugs directly into the PLC’s backplane, leveraging native communication to minimize latency (< 100 ms). Unlike external gateways that require serial wiring (and introduce signal interference), backplane integration ensures reliable data transfer between the module and PLC. A water treatment plant uses this feature to connect a SLC 500 PLC (controlling pump speed) to 8 Modbus TCP flow meters: the module’s backplane connection ensures pump speed adjustments based on flow data are executed within 200 ms, preventing overflow in storage tanks.

2.3 User-Configurable Data Registers (Up to 2048 Words)

The module offers 2048 user-definable 16-bit data registers, enabling precise mapping of Modbus TCP data to PLC memory addresses. Engineers can customize which Modbus registers (e.g., 40001 for temperature, 40002 for pressure) correspond to SLC 500/MicroLogix data files (e.g., N7:0 for input data, O0:0 for output commands). A bakery uses this flexibility to map 8 Modbus TCP oven temperature sensors to N7:1-N7:8 in a MicroLogix 1500, allowing the PLC to trigger heating element adjustments via output registers (O0:1-O0:8). This custom mapping reduces programming time by 30% compared to generic modules that require fixed register layouts.

2.4 ProSoft Configuration Builder (PCB) Compatibility

The MVI46-MNET is fully configurable via ProSoft’s free Configuration Builder (PCB) software—a Windows-based GUI with intuitive wizards for setup. Technicians with minimal Modbus experience can configure the module in under 1 hour: select client/server mode, define Modbus register ranges, and map to PLC data files using drag-and-drop tools. The software also includes pre-built templates for common devices (e.g., Siemens S7-1200, Schneider ATV340 VFDs), eliminating the need to manually enter Modbus function codes (1-6, 15, 16). PCB also supports configuration backup/restore, ensuring consistency across multiple modules in a facility.

2.5 Built-In Diagnostic LEDs & Web Interface

For easy troubleshooting, the module features front-panel LEDs (Power, Backplane, Modbus Link, Data Activity) that provide real-time status. A red “Modbus Link” LED indicates a network issue (e.g., incorrect IP address), while a blinking “Data Activity” LED confirms successful data transfer. Additionally, the MVI46-MNET includes a basic web interface (accessible via default IP: 192.168.1.30) for remote monitoring—users can view Modbus TCP connection status, register values, and error logs without PCB software. A remote manufacturing cell uses this feature to diagnose a Modbus communication failure: the web interface reveals a misconfigured server IP, allowing technicians to resolve the issue remotely (saving 2 hours of on-site travel).

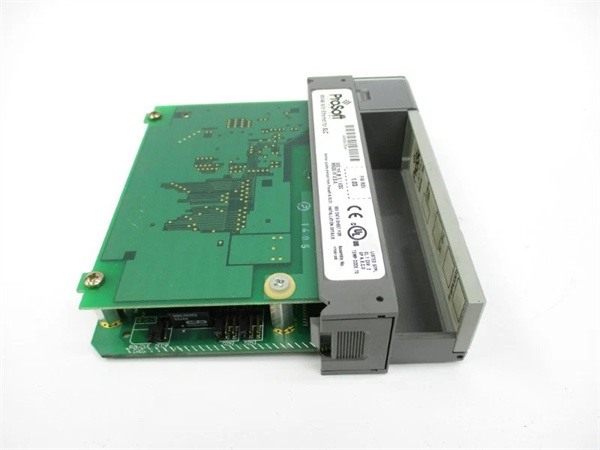

PROSOFT MVI46-MNET

3. Technical Specifications

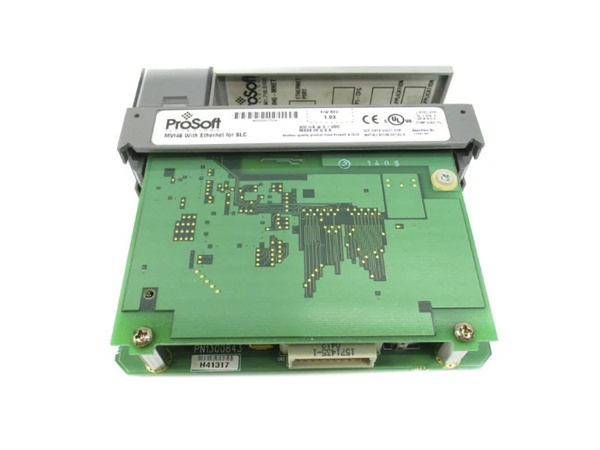

PROSOFT MVI46-MNET

4. Application Scenarios

4.1 Small Manufacturing Cells (SLC 500)

A furniture manufacturing plant uses the MVI46-MNET to connect a SLC 500 PLC (controlling a CNC router) to 6 Modbus TCP proximity sensors (detecting wood panel position). The module acts as a Modbus client, polling sensor data every 300 ms and sending it to the SLC 500 via backplane. The PLC uses this data to adjust router speed and cutting depth, reducing material waste by 15%. The module’s compact size fits in the 1746 chassis, avoiding the need for external enclosures.

4.2 Water Treatment Pump Stations (MicroLogix 1500)

A municipal water utility deploys the MVI46-MNET with a MicroLogix 1500 PLC at a remote pump station. The module acts as a Modbus server, allowing a central SCADA system to access pump status (run/fault) and flow meter data (gallons per minute) via Modbus TCP. This eliminates the need for a dedicated cellular modem for PLC communication, cutting monthly operational costs by $150. The module’s -40 °C to +85 °C storage temperature also withstands harsh outdoor conditions.

4.3 Food Processing Lines (Mixed SLC/MicroLogix)

A snack food plant uses two MVI46-MNET modules: one with a SLC 500 PLC (controlling fryer temperature) and another with a MicroLogix 1500 (managing packaging). The SLC 500 module acts as a client to poll 8 Modbus TCP temperature sensors (fryer zones), while the MicroLogix module acts as a server to share packaging counts with a plant-wide HMI. This integration ensures fryer temperature adjustments (based on sensor data) and packaging synchronization, increasing production efficiency by 12%.

5. Installation, Commissioning, and Maintenance

5.1 Installation

Chassis Compatibility Check: For SLC 500, ensure the 1746 chassis has an empty slot (slot 0–7); for MicroLogix 1500, use the 1761 expansion bus (max 1 module per PLC). Power off the PLC to avoid backplane damage.

Module Mounting: Align the MVI46-MNET with the chassis guides and firmly seat it into the slot (apply even pressure to avoid bent pins). For MicroLogix 1500, secure the module to the PLC’s expansion port using the locking tab.

Wiring: Connect a Cat5e/Cat6 Ethernet cable to the module’s RJ45 port (link to switch or Modbus device). No external power is needed—module draws 5 VDC from the PLC backplane.

Power-On: Turn on the PLC—verify the green “Power” LED illuminates; the yellow “Backplane” LED should blink once connected to the PLC.

5.2 Commissioning

PCB Software Setup: Install ProSoft Configuration Builder (v6.0+) on a PC. Connect the PC to the same Ethernet network as the module (default IP: 192.168.1.30).

Configuration:

Mode Selection: Choose “Client” (poll Modbus servers) or “Server” (share PLC data).

Register Mapping: Map Modbus registers (e.g., 40001) to PLC data files (e.g., N7:0 for SLC 500, B3:0 for MicroLogix).

Network Settings: Assign a static IP (match facility subnet) to avoid conflicts with other devices.

Testing: Use a Modbus TCP tool (e.g., Modbus Poll) to verify communication:

Client Mode: Send a test request to a Modbus server (e.g., read register 40001) and confirm data appears in the PLC’s data file.

Server Mode: Write a test value (e.g., 1234) to the module’s Modbus register and confirm it updates in the PLC.

5.3 Maintenance

Monthly Checks: Inspect LEDs (Power = green, Backplane = steady green, Modbus Link = green, Data Activity = blinking yellow). Clean the module with compressed air to remove dust (critical for food processing plants with airborne flour/dust).

Troubleshooting: If communication fails:

Verify Ethernet cable continuity (use a cable tester).

Check PLC backplane connection (reseat module if Backplane LED is red).

Use the web interface to view error logs (e.g., “Server Timeout” indicates Modbus device is offline).

Firmware Updates: Download the latest firmware from ProSoft’s website and upload via PCB software (takes < 2 minutes; no PLC downtime).

Spare Storage: Store spare modules in a dry environment (0 °C to +50 °C) to ensure quick replacement in case of failure.

6. Service and Warranty

ProSoft Technology provides a 2-year standard warranty for the MVI46-MNET, covering defects in materials, workmanship, and Modbus TCP/IP compliance. For critical applications (e.g., food safety lines), the ProSoft Essential Support Plan extends coverage to 3 years, including:

24/7 technical support (2-hour response time for communication outages).

Annual remote configuration verification (via PCB software).

Expedited replacement (72-hour delivery of a loaner module during repairs).

Customers also gain free access to resources:

Application notes (e.g., “MVI46-MNET for MicroLogix 1500 Pump Control”).

Video tutorials (PCB configuration, troubleshooting LED errors).

A user community for sharing tips (e.g., integrating with specific Modbus sensors).

For out-of-warranty repairs, ProSoft offers a flat-rate service ($180 per module) that includes diagnostic testing, component replacement, and firmware updates—with a 6-month warranty on repairs. This ensures cost-effective support for legacy SLC 500/MicroLogix systems.
