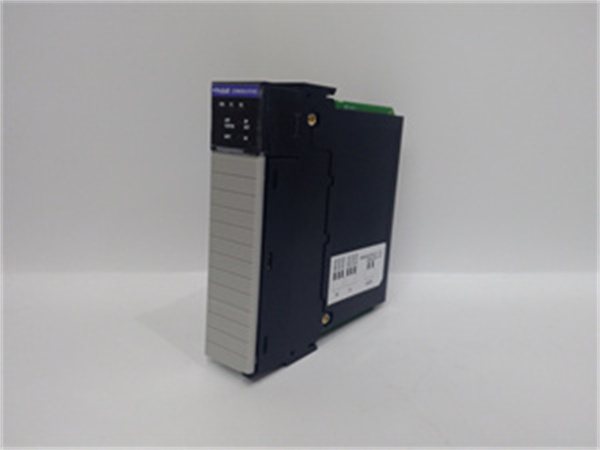

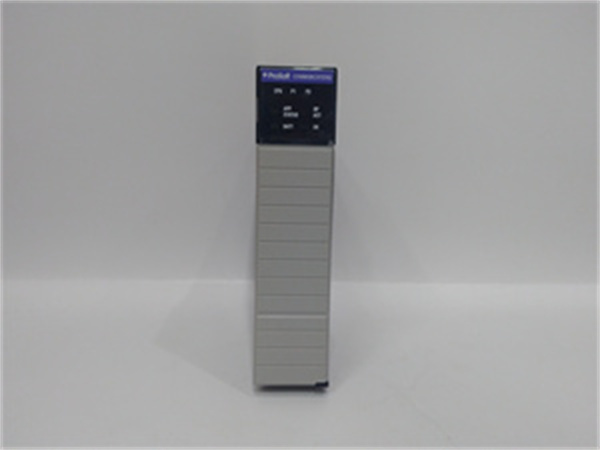

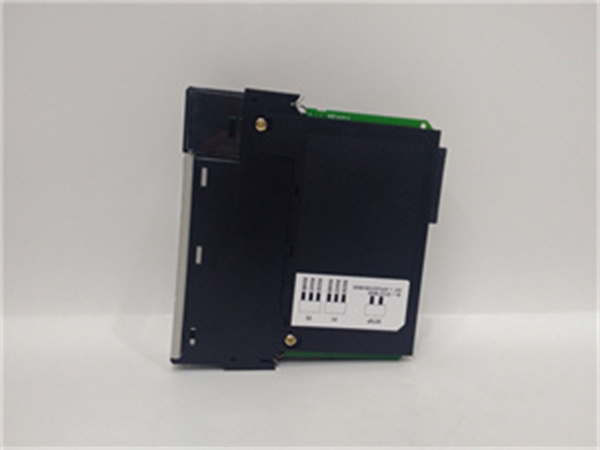

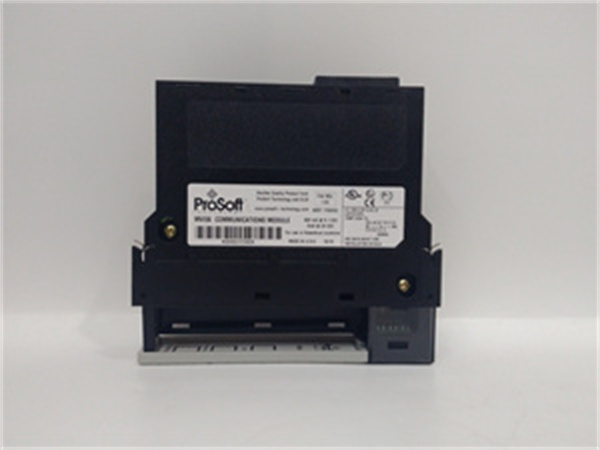

PROSOFT MVI56-LTQ

Description

1. Product Introduction

**

The PROSOFT MVI56 – LTQ is a specialized network interface module designed to facilitate seamless communication between Rockwell Automation’s ControlLogix processors and Limitorque valve actuators, along with other devices compatible with the Limitorque protocol. In industrial settings, especially in sectors such as aerospace, chemical, food & beverage, industrial gases, oil & gas (including production, exploration, processing, and refining), mining, pharmaceutical, power, pulp & paper, and water/wastewater, precise control and monitoring of valves are crucial. The MVI56 – LTQ steps in as a vital component, enabling efficient data exchange between the ControlLogix system and Limitorque – based valve networks.

Functioning as an input/output module, it bridges the gap between the ControlLogix processor and the Limitorque valve network. Data transfer between the processor and the network occurs asynchronously, ensuring smooth operation even during high – load scenarios. With a 1500 – word register space, the module effectively transmits comprehensive valve information from the Limitorque network to the ControlLogix processor. Ladder logic within the ControlLogix system takes charge of valve control, while data sent from the processor to the MVI56 – LTQ module directs it to execute commands on valves within the Limitorque network.

2. Functional Features

2.1 Versatile Valve Network Connectivity

The MVI56 – LTQ module is engineered to interface with a wide range of Limitorque – compliant valves. It can communicate with valves such as the MX/DDC Modbus, UEC – 3 – DDC Modbus, DDC – 100 M I/O module, DDC – 100 M field unit, and Valvcon IVO (in multi – drop mode only). This extensive compatibility allows for integration of diverse valve systems within an industrial plant. For example, in an oil refinery, different types of Limitorque valves used in various processing units can all be connected to the ControlLogix system via the MVI56 – LTQ, enabling centralized control and monitoring.

2.2 Configurable Communication Settings

Communication Ports: It features an RJ – 45 port that supports multiple serial communication standards, including RS – 232, RS – 485, and RS – 422. The choice of communication standard can be easily configured using jumpers, providing flexibility in connecting to different types of Limitorque devices. This is useful when retrofitting an existing system where some devices may already be using a specific serial communication standard.

Baud Rate: The baud rate can be configured within a wide range from 1200 to 115200. This allows for optimization of data transfer speed based on the requirements of the connected devices and the network environment. In a noisy industrial environment, a lower baud rate might be selected to ensure reliable data transmission, while in a more controlled environment with high – speed data requirements, a higher baud rate can be set.

Message Response Timeout: The module allows for the configuration of message response timeout. This is crucial in ensuring that the system does not wait indefinitely for a response from a valve or other Limitorque device. By setting an appropriate timeout value, the system can quickly detect communication failures and take corrective actions.

Number of Active Slaves: The MVI56 – LTQ can support up to 150 active slaves on the network. This makes it suitable for large – scale industrial applications where numerous valves and related devices need to be connected and controlled. For instance, in a large petrochemical plant with hundreds of valves, the MVI56 – LTQ can manage a significant portion of these valves, ensuring efficient operation.

Polling Scheme: It emulates Limitorque’s port A/B polling scheme using both ports on the LTQ module. The network polling scheme can be configured in different modes, such as looped, port 1 only, or port 2 only. Additionally, an active slave table, which is bit – mapped up to 150 slaves, helps in efficiently managing and monitoring the connected devices.

2.3 Command Execution and Data Transfer

Supported Commands: The module supports a comprehensive set of commands. It can continuously poll for important valve – related information, such as reading registers 40008 – 40013, which may contain data like valve position, status and fault registers, digital outputs, digital inputs (registers 1 and 2), communication error code, and comm counter. In terms of control commands, it can execute actions like open, stop, close, initiate network ESD (Emergency Shutdown), terminate network ESD, engage contactors 1 – 6, disengage contactors 1 – 6, and set the valve position (from 0 – 100%).

Data Transfer to Processor: For each valve connected to the module, it transfers detailed data back to the ControlLogix processor. This includes digital outputs, digital inputs from registers 1 and 2, communication error codes, and communication poll counters. This wealth of data enables the processor to make informed decisions regarding valve control and overall system operation.

2.4 Built – in Diagnostic and Monitoring

The MVI56 – LTQ is equipped with built – in diagnostic and status monitoring functions. It can continuously monitor the communication status with the connected Limitorque devices. If a communication error occurs, it can quickly identify the problem and report it back to the ControlLogix system. This helps in minimizing downtime and ensuring the reliable operation of the valve control system. For example, if a cable connection to a valve actuator becomes loose, the module can detect the communication failure and send an alert to the operator, allowing for prompt maintenance.

PROSOFT MVI56-LTQ

3. Technical Specifications

PROSOFT MVI56-LTQ

4. Application Scenarios

4.1 Oil & Gas Production and Refining

In an oil & gas production facility, the MVI56 – LTQ is used to connect ControlLogix processors to a vast network of Limitorque valves. These valves control the flow of oil, gas, and various chemical substances at different stages of production, from wellheads to processing units. For example, at the wellhead, Limitorque valves regulate the flow of crude oil. The MVI56 – LTQ collects data on valve position, pressure, and temperature from these valves and sends it to the ControlLogix processor. Based on this data, the processor can adjust the valve settings to optimize production and ensure safety. In a refinery, the module is used to control valves in distillation columns, ensuring the proper separation of different hydrocarbon fractions.

4.2 Power Generation

In power plants, whether they are coal – fired, gas – fired, or nuclear, valves play a critical role in controlling the flow of steam, water, and fuel. The MVI56 – LTQ enables the integration of Limitorque valves with the ControlLogix – based control system. For instance, in a steam turbine system, Limitorque valves control the steam flow to the turbine. The MVI56 – LTQ monitors the valve position and other relevant parameters and sends this information to the ControlLogix processor. The processor can then adjust the valve opening to regulate the power output of the turbine, ensuring stable and efficient power generation.

4.3 Water/Wastewater Treatment

In water treatment plants, valves are used to control the flow of water, chemicals, and sludge. The MVI56 – LTQ allows for the seamless connection of Limitorque valves to the ControlLogix system. For example, in a water filtration process, Limitorque valves control the flow of raw water into the filters and the backwash process. The MVI56 – LTQ collects data on valve status, water flow rate, and pressure from these valves and transmits it to the ControlLogix processor. Based on this data, the processor can automate the valve operations to ensure proper water treatment and distribution. Similarly, in wastewater treatment plants, the module is used to control valves in processes such as anaerobic digestion and sludge dewatering.

5. Installation, Commissioning, and Maintenance

5.1 Installation

Backplane Preparation: Ensure that the Rockwell Automation ControlLogix 1756 backplane has an available empty slot. Power off the ControlLogix system to prevent any electrical accidents during installation.

Module Mounting: Carefully align the MVI56 – LTQ module with the guides on the 1756 backplane slot. Gently push the module into the slot until it is firmly seated. For installations in remote racks, follow the appropriate cabling and connection procedures to ensure reliable communication between the local and remote racks.

Wiring: Connect the RJ – 45 cable to the appropriate Limitorque devices. Depending on the communication standard (RS – 232, RS – 485, or RS – 422) selected using the jumpers, use the correct type of serial cable to make the connections. Connect the module to the external power supply, ensuring that the power supply meets the specified voltage and current requirements.

Power – On: After all connections are made, power on the ControlLogix system. Check the status LEDs on the MVI56 – LTQ module. The power LED should be lit, indicating that the module is receiving power. Other LEDs may show the communication status, such as whether the module is successfully communicating with the backplane and the connected Limitorque devices.

5.2 Commissioning

Initial Configuration: Use the ControlLogix ladder logic programming software to access the MVI56 – LTQ module’s configuration settings. Set the basic parameters such as baud rate, message response timeout, and the number of active slaves based on the requirements of the Limitorque network.

Polling Scheme Setup: Configure the network polling scheme (looped, port 1 only, or port 2 only) and set up the active slave table. Define which Limitorque devices are active on the network and how the module should poll for data from them.

Testing: Send test commands to the connected Limitorque valves through the MVI56 – LTQ module. For example, send a “close” command to a valve and verify that the valve closes as expected. Monitor the data received from the valves, such as valve position feedback and status registers, to ensure that the data transfer is accurate. Check the status LEDs on the module for any error indications during testing.

5.3 Maintenance

Regular Checks: Periodically inspect the status LEDs on the MVI56 – LTQ module. The power LED should always be on, and the communication – related LEDs should show normal operation. Check for any signs of physical damage to the module, such as loose connections or cracks in the casing.

Troubleshooting: If communication problems occur, first check the physical connections of the cables. Use the diagnostic functions of the module to identify the source of the problem. For example, if the communication error LED is lit, refer to the module’s documentation to determine the cause of the error. Check the configuration settings to ensure that they match the requirements of the Limitorque network and the connected devices.

Firmware Updates: Periodically visit ProSoft Technology’s website to check for firmware updates for the MVI56 – LTQ module. Follow the provided instructions carefully to update the firmware. Firmware updates can improve the module’s performance, add new features, or fix known bugs.

Spare Parts Management: Keep spare MVI56 – LTQ modules on hand, especially in critical applications. Store spare modules in a clean, dry environment within the specified temperature range. Label spare modules with their configuration settings to facilitate quick replacement in case of a module failure.

6. Service and Warranty

ProSoft Technology offers a standard warranty for the MVI56 – LTQ module, covering defects in materials and workmanship. The exact duration of the warranty can be obtained from ProSoft’s official documentation or by contacting their customer support. In addition to the warranty, ProSoft provides a range of services to support customers:

Technical Support: ProSoft’s technical support team is available to assist with installation, configuration, and troubleshooting issues. Customers can reach out via phone, email, or through an online support portal. Response times are typically within [specify typical response time] for urgent issues, ensuring that any problems are addressed promptly.

Training Resources: ProSoft provides comprehensive training materials, including user manuals, application notes, and video tutorials. These resources help customers understand how to install, configure, and maintain the MVI56 – LTQ module effectively. There are also online training courses available for more in – depth learning, enabling customers to maximize the capabilities of the module.

Spare Parts Availability: ProSoft ensures the availability of spare parts for the MVI56 – LTQ module. In case of a module failure, customers can quickly order replacement parts through ProSoft’s authorized distributors or directly from ProSoft. The delivery time for spare parts is typically within [specify typical delivery time], minimizing downtime for critical applications.

For out – of – warranty repairs, ProSoft offers repair services. The cost of repairs depends on the nature of the problem. Repaired modules are typically covered by a [specify warranty period for repairs] warranty, giving customers confidence in the reliability of the repaired module for continued operation.
