Description
System Architecture & Operational Principle
The ProSoft MVI56-LTQ is a purpose-built communication module designed to integrate Limitorque valve actuators with Allen-Bradley ControlLogix PLCs. It resides in a single slot of a ControlLogix chassis, connecting to the Limitorque valve network via RS-232 or RS-485 (jumper-selectable) and communicating with the PLC through the chassis backplane.
Upstream, the ControlLogix processor sends commands (e.g., open/close valve, set position) to the MVI56-LTQ via ladder logic, which translates them into Limitorque protocol messages. Downstream, the module polls valve status (position, fault, digital inputs) and returns data to the PLC using a 1500-word register space—this asynchronous data transfer ensures the PLC can handle other tasks while waiting for valve responses.
The module emulates Limitorque’s Port A/B polling scheme, using both ports to optimize network traffic and support up to 150 valves. Its key advantage is seamless integration: it acts as a “translator” between the PLC’s backplane protocol and the Limitorque valve network, eliminating the need for custom gateways or complex programming. For example, in a petrochemical plant, the MVI56-LTQ might connect a ControlLogix PLC to 50 Limitorque MX/DDC Modbus valves, enabling the PLC to adjust valve positions in real time based on process sensor data.
Core Technical Specifications
-
Backplane Compatibility: Single-slot 1756 ControlLogix chassis (local or remote rack)
-
Communication Interfaces: RS-232/RS-485 (jumper-selectable), 2 ports (Port A/B)
-
Baud Rate: 1200–38400 bps (software-configurable)
-
Valve Support: Up to 150 Limitorque valves (MX/DDC Modbus, UEC-3-DDC Modbus, DDC-100M, Valvcon IVO)
-
Register Space: 1500-word (stores valve position, status, fault codes)
-
Backplane Current Draw: 800 mA @ 5 V DC
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Polling Schemes: Cyclic, Port 1 only, Port 2 only (configurable)
-
Commands Supported: Open/close/stop valve, initiate/terminate ESD, engage/disengage contactors, set valve position (0–100%)
-
Indicators: LED status lights (power, communication, fault)

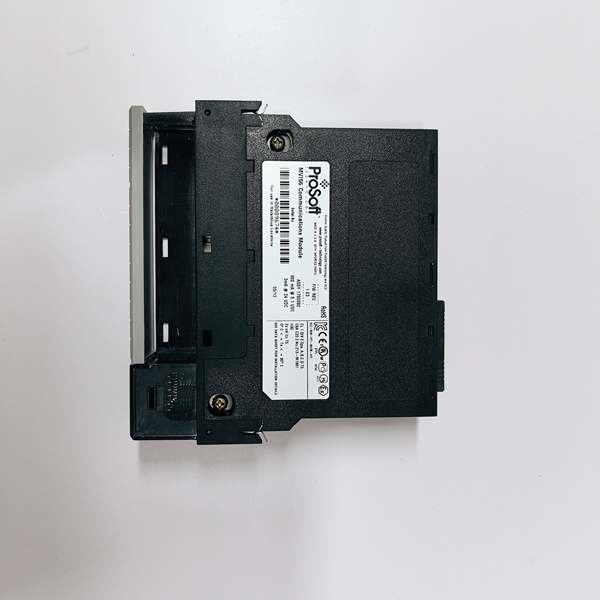

PROSOFT MVI56-LTQ
Customer Value & Operational Benefits
Reduced Integration Complexity
The MVI56-LTQ eliminates the need for custom protocol converters or extensive ladder logic programming. Its pre-built Limitorque protocol support and RSLogix 5000 integration (via sample ladder files) cut commissioning time by up to 50% compared to manual gateway setups. For example, a water treatment plant saved 20 hours of engineering time by using the MVI56-LTQ to connect ControlLogix to 30 Limitorque valves instead of developing a custom solution.
Improved Valve Network Reliability
With support for 150 valves and dual-port polling, the module distributes network traffic evenly, reducing the risk of communication bottlenecks. The 1500-word register space ensures the PLC has real-time access to critical valve data (e.g., fault codes, position), enabling faster response to issues like stuck valves or leaks. In a power plant, this meant reducing valve-related downtime by 30% due to quicker fault diagnosis.
Flexible Configuration for Diverse Applications
The module’s software-configurable baud rate, polling scheme, and valve type support make it adaptable to various industrial environments. For instance, a food and beverage plant uses the MVI56-LTQ to connect ControlLogix to 20 Valvcon IVO valves (multi-drop mode), while a mining operation uses it for 100 MX/DDC Modbus valves—all with the same hardware.
Field Engineer’s Notes (From the Trenches)
When configuring the MVI56-LTQ, always match the baud rate to the Limitorque valve’s setting—a mismatch will cause constant communication errors. I once spent 3 hours troubleshooting a plant’s valve network only to find the valve was set to 9600 bps while the module was at 19200 bps.Label the module’s ports clearly (Port A/Port B) and document the valve addresses in the ProSoft Configuration Builder—this saves hours when adding new valves later. Also, use shielded twisted-pair cable for RS-485 connections; unshielded cables pick up too much noise in industrial environments.If a valve isn’t responding, check the “Active Slave Table” in the module’s configuration—a missing entry is a common cause of “no communication” errors. And remember: the module’s 1500-word register space resets when power is cycled, so save your configuration to a file using ProSoft’s software.
Real-World Applications
-
Petrochemical Pipeline ControlA refinery uses the MVI56-LTQ to connect a ControlLogix PLC to 80 Limitorque MX/DDC Modbus valves. The PLC adjusts valve positions based on pressure sensor data from the pipeline, ensuring safe and efficient flow. The module’s fault register data helps technicians quickly identify stuck valves, reducing unplanned shutdowns by 25%.
-
Municipal Water TreatmentA city’s water treatment plant deploys the MVI56-LTQ to link a ControlLogix PLC with 40 Limitorque UEC-3-DDC Modbus valves. The PLC uses valve position data to optimize chemical dosing, while the module’s ESD (Emergency Shutdown) command support ensures rapid response to leaks. This integration cut chemical waste by 15% and improved compliance with EPA regulations.
-
Power Plant Steam Turbine ControlA coal-fired power plant uses the MVI56-LTQ to connect a ControlLogix PLC to 60 Limitorque DDC-100M valves. The PLC adjusts steam flow to the turbine based on load demands, and the module’s real-time position data helps optimize efficiency. The module’s ability to handle 150 valves means the plant can expand its valve network without replacing hardware.

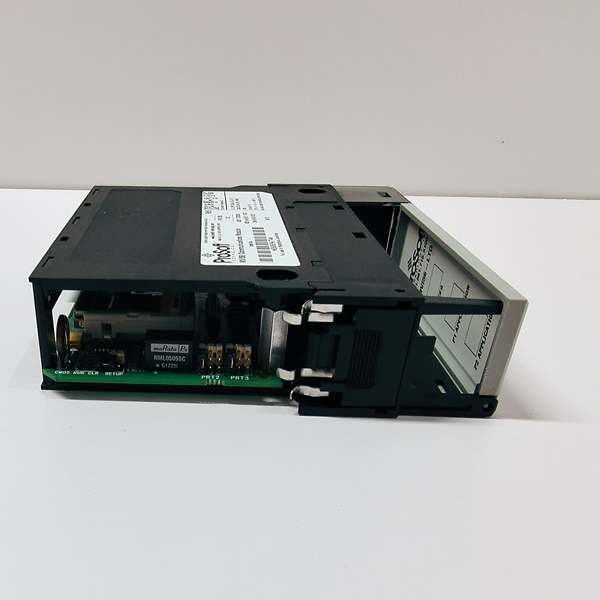

PROSOFT MVI56-LTQ
High-Frequency Troubleshooting FAQ
Q: What is the correct migration path for a legacy Limitorque communication module to ProSoft MVI56-LTQ?
A: The MVI56-LTQ is a drop-in replacement for older ProSoft Limitorque modules (e.g., MVI56-LT). The main difference is increased valve support (150 vs. 100) and a larger register space (1500 words vs. 1000). To migrate: (1) Transfer the existing valve configuration from the old module to the MVI56-LTQ using ProSoft’s Configuration Builder; (2) Update the PLC ladder logic to use the new register addresses (if needed); (3) Test communication with a single valve before scaling up. No changes to the ControlLogix chassis are required.

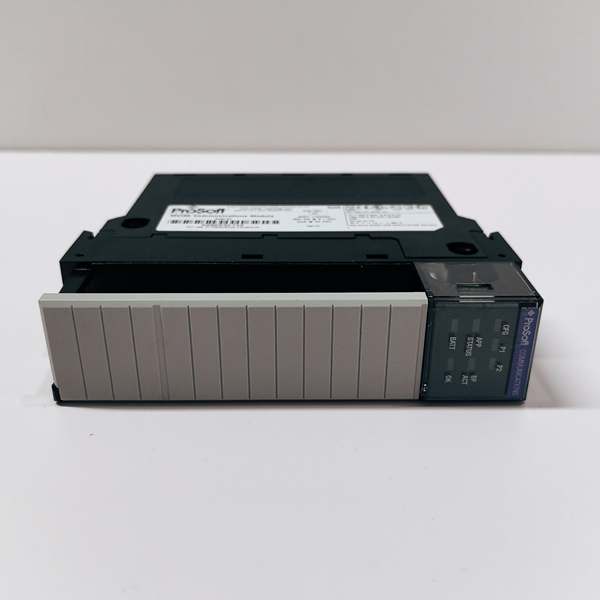

Q: How do I interpret the LED status indicators on a ProSoft MVI56-LTQ?
A: The module has three LEDs:
-
Power (Green): Solid = Module has power; Blinking = Low backplane voltage (check 5 V supply).
-
Communication (Yellow): Solid = Communicating with PLC; Blinking = Polling valves (normal operation).
-
Fault (Red): Solid = Critical error (e.g., invalid configuration); Blinking = Non-critical error (e.g., valve not responding).If the Fault LED blinks, check the ProSoft Configuration Builder’s log for details (e.g., “Valve 5 not found”).
Q: Why am I getting “timeout” errors when polling Limitorque valves with the MVI56-LTQ?
A: Timeout errors usually stem from three issues: (1) Baud rate mismatch (verify the valve and module use the same baud rate); (2) Incorrect valve address (check the “Active Slave Table” in the module’s configuration); (3) Poor cabling (use shielded twisted-pair cable and check for loose connections). To diagnose, use the module’s “Test Communication” feature in ProSoft’s software—this sends a ping to each valve and reports errors.
Q: Can the MVI56-LTQ be used with non-Limitorque valves?
A: No, the MVI56-LTQ is specifically designed for Limitorque protocol-compatible valves. For non-Limitorque valves (e.g., Modbus RTU), use a ProSoft MVI56-MNET module instead. Attempting to use the MVI56-LTQ with non-Limitorque devices will result in communication errors.
