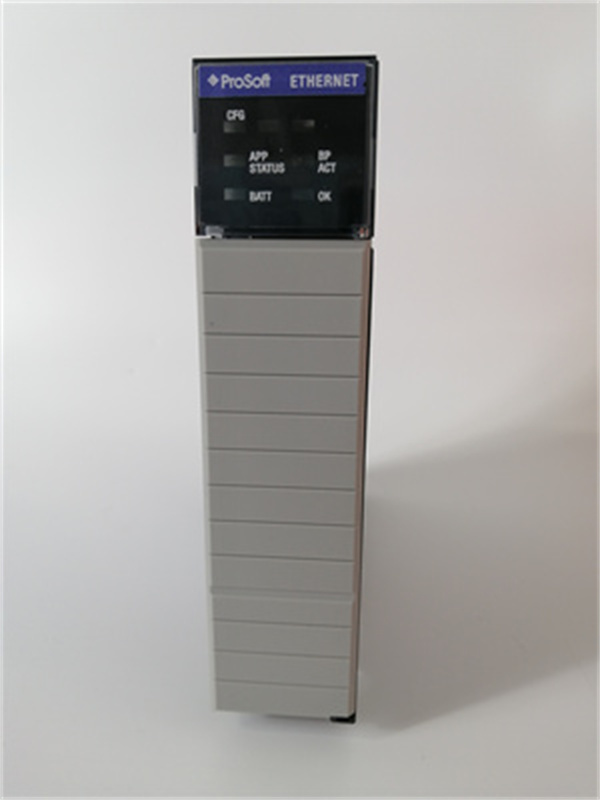

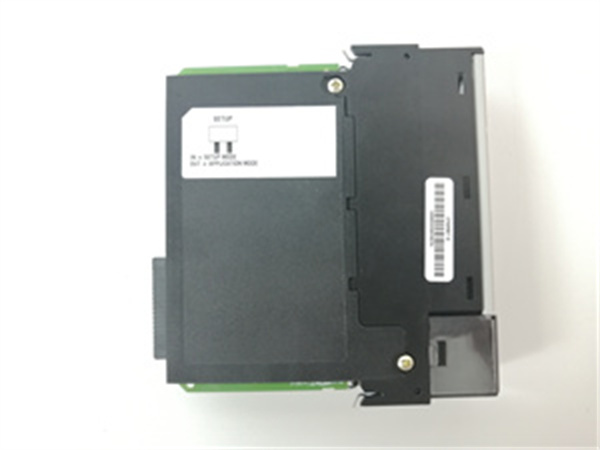

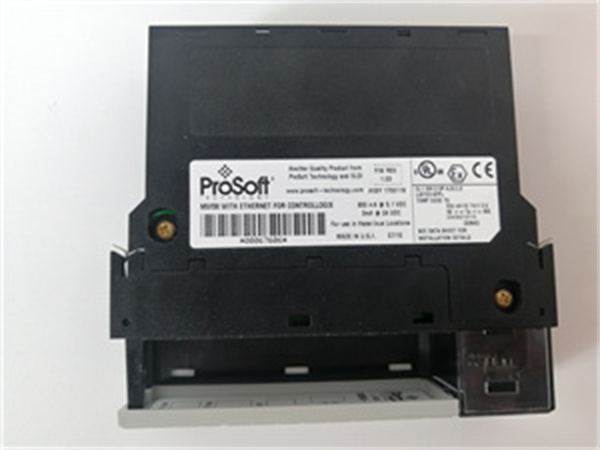

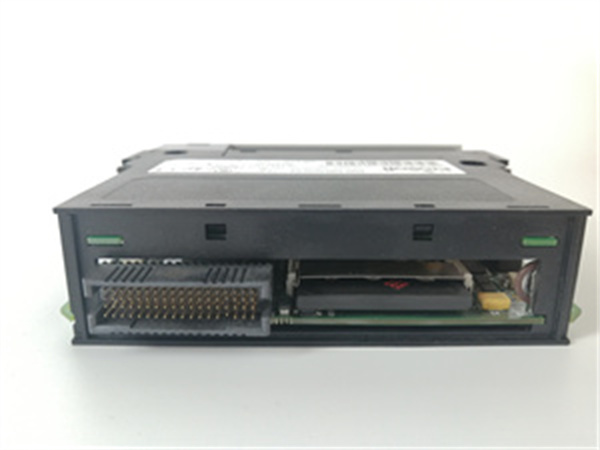

PROSOFT MVI56-MNETR

Description

1. Product Introduction

The PROSOFT MVI56-MNETR is a high-reliability Modbus TCP communication module with built-in redundancy, exclusively designed for Allen-Bradley ControlLogix (1756 chassis) programmable automation controllers (PACs). Unlike standard Modbus TCP modules (e.g., MVI56-MNET), this module addresses the critical need for uninterrupted communication in mission-critical industrial applications—such as power generation, chemical processing, and oil refineries—where even a few seconds of downtime can result in $100k+ losses.

In industrial environments where ControlLogix PACs manage complex processes (e.g., reactor temperature control, pipeline pressure regulation), the MVI56-MNETR solves a key challenge: ensuring continuous data exchange between the PAC and Modbus TCP devices (e.g., remote sensors, SCADA systems, third-party VFDs) even if a network link or module fails. Its dual Ethernet ports and redundant backplane communication eliminate single points of failure, making it an indispensable solution for facilities requiring 99.999% network uptime. This not only extends the reliability of existing ControlLogix ecosystems but also avoids costly custom redundancy setups, making it ideal for industries governed by strict safety standards (e.g., SIL 2, ISO 55000).

2. Functional Features

2.1 Dual Ethernet Ports for Network Redundancy

The MVI56-MNETR’s two 10/100/1000 Mbps Ethernet ports enable seamless network redundancy (DLR/MRP protocols), automatically switching to the backup port if the primary link fails. For example, a nuclear power plant uses the module to connect a ControlLogix PAC to 16 Modbus TCP radiation sensors: Port 1 links to the primary plant network, while Port 2 connects to a redundant fiber optic link. If the primary network is disrupted (e.g., cable damage), the module switches to the backup port in <5 ms—avoiding a 2-hour outage that would have violated NRC safety regulations. This redundancy is far more reliable than adding a second non-redundant module (which requires manual failover).

2.2 Modbus TCP Client/Server Dual Mode with Redundant Data Paths

The module supports both Modbus TCP client and server operations, with redundant data paths to ensure no data loss during failover. As a client, it polls Modbus TCP servers (e.g., SCADA systems) via both Ethernet ports, storing data in a shared internal buffer; as a server, it serves ControlLogix data to external clients via both ports. A chemical plant uses this feature as a client to poll 24 Modbus TCP flow meters (monitoring chemical feed rates) every 100 ms: if the primary port fails, the backup port continues polling, and the shared buffer ensures no flow data is lost—critical for maintaining batch consistency. As a server, it shares reactor temperature data with a remote HMI via both ports, ensuring operators never lose visibility.

2.3 ControlLogix Backplane Redundancy Integration

Optimized for ControlLogix’s redundant chassis (1756-Redundant Chassis), the MVI56-MNETR integrates with the PAC’s native backplane redundancy, ensuring communication continuity even if the primary ControlLogix processor fails. Unlike external gateways that require separate redundancy configuration, the module automatically syncs with the ControlLogix redundant system—mirroring Modbus TCP configuration and data between primary and secondary modules. A natural gas pipeline operator uses this feature to connect redundant ControlLogix PACs to 32 Modbus TCP pressure sensors: if the primary PAC fails, the secondary PAC takes over instantly, with the MVI56-MNETR maintaining Modbus communication without reconfiguration—avoiding pipeline shutdowns.

2.4 High-Throughput Data Handling (Up to 2000 Requests/Second)

Designed for high-density Modbus TCP networks, the MVI56-MNETR supports up to 2000 Modbus TCP requests per second—double the throughput of standard MVI56-MNET modules. This is critical for applications with hundreds of Modbus devices, such as a water treatment plant monitoring 50 Modbus TCP flow meters and 30 VFDs. The module’s gigabit Ethernet ports handle large data volumes without bottlenecks, ensuring the ControlLogix PAC receives real-time data for pump speed adjustments and leak detection. High throughput also reduces latency (<15 ms), critical for time-critical processes like chemical dosing.

2.5 ProSoft Configuration Builder (PCB) Redundancy Wizard

The module is fully configurable via ProSoft’s free Configuration Builder (PCB) software, which includes a dedicated redundancy wizard to simplify setup. Technicians can configure dual Ethernet ports, set failover thresholds (e.g., 3 consecutive lost packets), and sync settings between redundant modules in <10 minutes—no manual scripting required. A manufacturing plant configures 8 MVI56-MNETR modules in 1 hour (vs. 4 hours with custom redundancy setups), ensuring consistent redundancy across all production lines. PCB also includes real-time redundancy status monitoring, allowing operators to track port health and failover events via a web interface.

PROSOFT MVI56-MNETR

3. Technical Specifications

PROSOFT MVI56-MNETR

4. Application Scenarios

4.1 Power Generation (Nuclear/Coal-Fired Plants)

A nuclear power plant uses the MVI56-MNETR to connect redundant ControlLogix PACs to 24 Modbus TCP radiation sensors (monitoring reactor containment) and 12 Modbus TCP turbine speed controllers. The module’s dual Ethernet ports link to separate plant networks (primary and backup), with DLR redundancy ensuring <5 ms failover. If the primary network is disrupted by a storm, the backup port maintains communication, allowing the ControlLogix PAC to adjust turbine speed and trigger safety alarms—avoiding a shutdown that would have cost $500k/hour. The module’s compliance with NRC safety standards also ensures regulatory compliance.

4.2 Chemical Processing (Batch Reactors)

A chemical plant deploys the MVI56-MNETR with a ControlLogix PAC to monitor 36 Modbus TCP temperature/pressure sensors (installed on batch reactors) and control 18 Modbus TCP chemical dosing pumps. The module acts as a Modbus TCP client, polling sensors every 50 ms and sending dosing commands to pumps. Its redundant data buffer ensures no sensor data is lost during network failover, critical for maintaining batch consistency (a single lost data point can ruin a $100k batch). The module’s integration with ControlLogix backplane redundancy also ensures communication continues if the primary PAC fails, reducing batch rejection rates by 25%.

4.3 Oil Refineries (Pipeline Monitoring)

An oil refinery uses the MVI56-MNETR to connect a ControlLogix PAC to 48 Modbus TCP pipeline pressure sensors (spread across 10 miles of crude oil pipelines). The module’s dual Ethernet ports connect to a fiber optic network (primary) and a cellular backup (secondary). If the fiber network is cut by construction, the module switches to cellular in <5 ms, allowing the ControlLogix PAC to detect pressure drops (indicating leaks) and close remote valves—preventing a spill that would have incurred $1M+ in cleanup costs and fines. The module’s high throughput also supports real-time data transfer for 48 sensors, ensuring no lag in leak detection.

5. Installation, Commissioning, and Maintenance

5.1 Installation

Chassis Preparation: Ensure the ControlLogix 1756 chassis (redundant or standard) has an empty slot. Power off the PAC to avoid backplane damage. Wear an ESD wristband to protect the module’s electronics.

Module Mounting: Align the MVI56-MNETR with the chassis guides and firmly seat it into the slot (apply even pressure to avoid bent pins). For redundant setups, install a second module in the secondary chassis.

Wiring: Connect Cat6a Ethernet cables to both module ports—Port 1 to the primary network switch, Port 2 to the backup switch. No external power is needed; module draws 5 VDC from the ControlLogix backplane.

Power-On: Turn on the ControlLogix PAC—verify the green “Power” LED illuminates; the yellow “Backplane” LED should blink once connected to the PAC; the blue “Ethernet” LEDs (both ports) should be green when linked to switches.

5.2 Commissioning

Software Setup: Install ProSoft Configuration Builder (v6.6+) and import the module’s AOP into Studio 5000. Connect the PC to the ControlLogix Ethernet port.

Redundancy Configuration:

Port Settings: Use PCB’s redundancy wizard to enable DLR/MRP on both Ethernet ports; set failover threshold (e.g., 3 lost packets).

Data Sync: For redundant chassis, sync Modbus TCP configuration (client/server settings, register maps) between primary and secondary modules via PCB.

Tag Mapping: Use the AOP to map Modbus registers to ControlLogix tags (e.g., Reactor_Temp = 40001), ensuring tags are mirrored in redundant PACs.

Testing:

Failover Test: Disconnect the primary Ethernet cable—verify the module switches to Port 2 in <5 ms (check PCB’s redundancy status dashboard).

Data Integrity Test: Send test commands to Modbus devices during failover—confirm no data loss (check ControlLogix tag values remain consistent).

5.3 Maintenance

Monthly Checks: Inspect LEDs (Power = green, Backplane = steady green, Ethernet Ports = green, Redundancy = steady blue); use PCB to monitor failover events and port health. Clean Ethernet ports with compressed air to remove dust (critical for refineries with airborne particles).

Troubleshooting: If failover fails:

Verify DLR/MRP configuration in PCB (ensure both ports are in the same redundancy group).

Check Ethernet cable continuity (use a Cat6a tester) and switch health.

Use PCB’s “Redundancy Log” to view error codes (e.g., “Port 1 Link Lost” indicates cable issue).

Firmware Updates: Download the latest firmware from ProSoft’s website and upload via PCB (takes <5 minutes; redundant modules update sequentially to avoid downtime).

Spare Storage: Store spare modules in a dry environment (-20 °C to +50 °C) to withstand harsh industrial conditions; label spares as “redundancy-ready” (pre-configured with matching settings).

6. Service and Warranty

ProSoft Technology provides a 3-year standard warranty for the MVI56-MNETR, covering defects in materials, workmanship, and redundancy functionality. For critical applications (e.g., nuclear power), the ProSoft Critical Infrastructure Support Plan extends coverage to 5 years, including:

24/7 technical support (30-minute response time for redundancy failures—critical for mission-critical systems).

Annual on-site redundancy testing (via ProSoft-certified technicians) to verify failover performance and compliance with safety standards (e.g., NRC, SIL 2).

Expedited replacement (24-hour delivery of a pre-configured loaner module during repairs—minimizing downtime).

Customers also gain free access to resources:

Application notes (e.g., “MVI56-MNETR for Nuclear Power Plant Redundancy”).

Video tutorials (PCB redundancy wizard setup, failover testing).

A user community for power/chemical industries (share tips on redundancy best practices, regulatory compliance).

For out-of-warranty repairs, ProSoft offers a flat-rate service ($350 per module) that includes diagnostic testing, redundancy reconfiguration, and firmware updates—with a 6-month warranty on repairs. This ensures long-term reliability for mission-critical ControlLogix ecosystems.
