Description
System Architecture & Operational Principle
The ProSoft MVI56-PDPMV1 is a critical communication component in industrial automation systems, residing in a single slot of an Allen-Bradley ControlLogix chassis. It connects the PLC to PROFIBUS DPV1 networks, functioning as a master (to poll data from PROFIBUS devices like Siemens S7-300 or ET200M remote I/O) or slave (to share ControlLogix data with SCADA systems).
Upstream, the ControlLogix processor sends configuration commands and data requests via the chassis backplane. The module translates these into PROFIBUS DPV1 messages, transmitting them over a 10/100 Mbps Ethernet link. Downstream, it receives responses from PROFIBUS devices (e.g., VFD speed feedback) or sends commands (e.g., setpoint adjustments) to actuators.
The module integrates with RSLogix 5000/Studio 5000 using a supplied Add-On Instruction (AOI), which maps PROFIBUS data to ControlLogix tags for seamless data exchange. Its single-slot design minimizes chassis space usage, while CIPconnect technology enables remote configuration and diagnostics over EtherNet/IP or ControlNet—eliminating the need for additional gateways.
The inherent advantage lies in its ability to bridge Rockwell’s proprietary ControlLogix ecosystem with the widely adopted PROFIBUS DPV1 protocol, ensuring interoperability with third-party devices without compromising system performance. Hot-swappable capability allows for module replacement without shutting down the PLC, reducing downtime during maintenance.

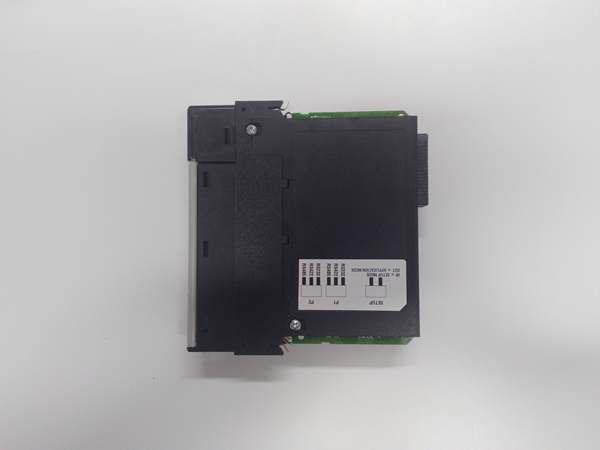

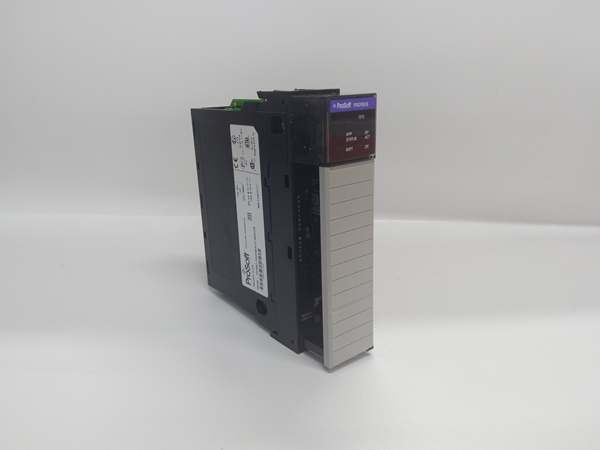

PROSOFT MVI56-PDPMV1
Core Technical Specifications
-
Backplane Compatibility: Single-slot 1756 ControlLogix chassis (local or remote rack)
-
Ethernet Port: 10/100 Base-T, RJ45 connector (CAT5 cable), auto crossover detection
-
PROFIBUS Modes: Supports both Master (Client) and Slave (Server) modes
-
Slave Connections: Up to 125 (with repeater)
-
Data Registers: 1536-byte input/output capacity (user-definable mapping)
-
Backplane Current Draw: 800 mA @ 5 V DC, 3 mA @ 24 V DC
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
-
Shock Resistance: 30 g operational, 50 g non-operational
-
Vibration Resistance: 5 g from 10 Hz to 150 Hz
-
Relative Humidity: 5% to 95% (non-condensing)
-

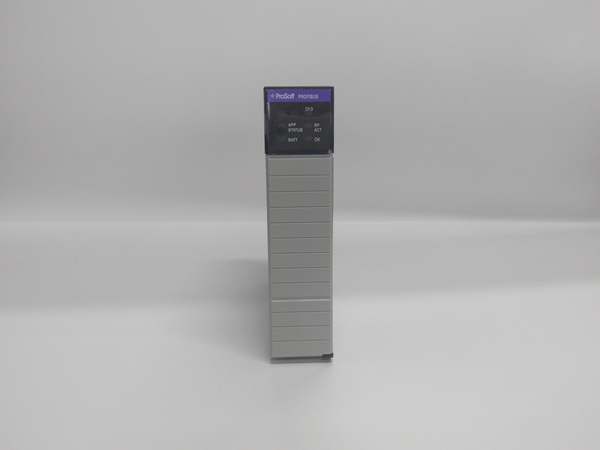

LED Indicators: Application Status (APP), Module Status (OK), Error (ERR)
-
Display: 4-character alphanumeric scrolling LED (shows IP address, port status, errors)
Customer Value & Operational Benefits
Reduced Downtime Through Hot-Swap Capability
The MVI56-PDPMV1’s hot-swappable design allows technicians to replace a faulty module without powering down the ControlLogix chassis. This eliminates costly production stops—critical in industries like automotive manufacturing, where every minute of downtime translates to lost revenue.
Streamlined Integration with Third-Party Devices
By supporting PROFIBUS DPV1 (the de facto standard for industrial serial communication), the module eliminates the need for custom gateways or protocol converters. This reduces integration complexity and cost, while its compatibility with RSLogix 5000/Studio 5000 ensures seamless data mapping to ControlLogix tags. Technicians can quickly configure the module using ProSoft’s Configuration Builder software, cutting commissioning time by up to 50%.
Enhanced Diagnostic Visibility
The module’s 4-character LED display provides real-time status updates (e.g., “IP OK” or “ERR: COMM”), while the APP and OK LEDs indicate application and module health. For deeper diagnostics, technicians can use ProSoft’s remote configuration software to view error logs and network performance—reducing root-cause analysis time from hours to minutes. This visibility is invaluable in preventing unplanned outages caused by communication failures.
Field Engineer’s Notes (From the Trenches)

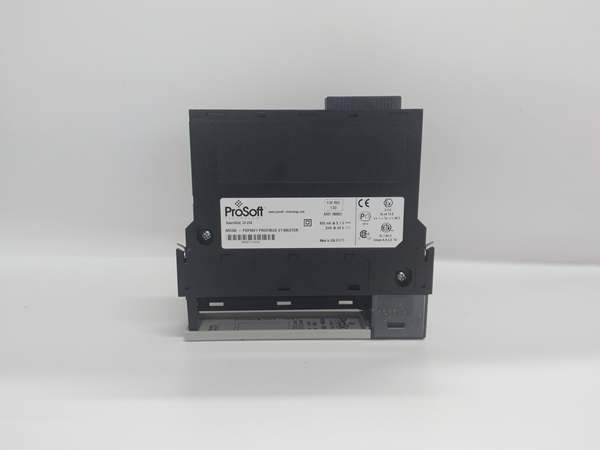

When installing the MVI56-PDPMV1, always verify the ControlLogix chassis backplane power supply first. A marginal 5 V supply (below 4.9 V) can cause intermittent communication faults that mimic a bad module. Use a multimeter to measure the backplane voltage at the slot before inserting the module—this simple step saves hours of troubleshooting.Another gotcha: the module’s Ethernet port requires a straight-through CAT5 cable (not crossover) for most networks. While the module supports auto crossover detection, some industrial switches don’t play nice with it. Stick to straight-through cables unless you’ve confirmed the switch supports auto-MDI/MDIX.Finally, label the module’s IP address on the chassis—nothing’s worse than hunting for a misconfigured module in a crowded cabinet. Use a permanent marker to write the IP on the front panel; it’ll save you time during future diagnostics.PROSOFT MVI56-PDPMV1
Real-World Applications
-
Railway Rapid Quantitative Loading StationA coal mine machinery company uses the MVI56-PDPMV1 to connect a ControlLogix PLC to Siemens ET200M remote I/O stations. The module enables the PLC to control胶带 (belt conveyors) and给煤机 (coal feeders) via PROFIBUS, while receiving real-time status feedback (e.g., running/fault signals) from field devices. This integration eliminated the need for custom communication software, reducing design costs by 30%.
-
Steel Mill Converter Charging SystemA steel mill uses the MVI56-PDPMV1 to link a ControlLogix PLC with Siemens S7-300 controllers (for RH furnaces and LF refining stations). The module acts as a PROFIBUS master, polling data from S7-300 devices (e.g., temperature, pressure) and sending commands to adjust charging sequences. This solution resolved interoperability issues between AB and Siemens systems, improving production efficiency by 20%.
High-Frequency Troubleshooting FAQ
Q: What is the correct migration path for a legacy PROFIBUS master module to ProSoft MVI56-PDPMV1?
A: The MVI56-PDPMV1 is a drop-in replacement for older ProSoft PROFIBUS modules (e.g., MVI56-PDPM). Key differences include: (1) Enhanced DPV1 support (for non-cyclic data exchange); (2) Larger data register capacity (1536 bytes vs. 1024 bytes); (3) Improved diagnostics (4-character LED display vs. basic LEDs). To migrate: (1) Export the legacy module’s configuration file using ProSoft’s Configuration Builder; (2) Import the file into the MVI56-PDPMV1; (3) Update the ControlLogix ladder logic to use the new module’s tag structure (if needed). No changes to the ControlLogix chassis are required.
Q: How do I interpret the LED status indicators on a ProSoft MVI56-PDPMV1?
A: The module has three LEDs:
-
APP (Green): Solid = Application running normally; Blinking = Application initializing.
-
OK (Green): Solid = Module communicating with ControlLogix; Blinking = Module detected but not configured.
-
ERR (Red): Solid = Critical error (e.g., backplane power failure); Blinking = Non-critical error (e.g., invalid IP address).The 4-character LED display provides additional context (e.g., “IP ERR” or “COMM OK”). For a full list of codes, refer to the module’s user manual.
Q: Why am I getting “timeout” errors when polling PROFIBUS devices with the MVI56-PDPMV1?
A: Timeout errors usually stem from three issues: (1) Baud rate mismatch (verify the device and module use the same baud rate); (2) Incorrect PROFIBUS address (check the “Slave Address” in the module’s configuration); (3) Poor cabling (use shielded twisted-pair cable and check for loose connections). To diagnose, use the module’s “Test Communication” feature in ProSoft’s Configuration Builder—this tool sends a ping to each device and reports errors.
Q: Can the MVI56-PDPMV1 be used in a redundant ControlLogix system?
A: Yes, the MVI56-PDPMV1 supports redundant ControlLogix configurations (e.g., 1756-RM2). Install one MVI56-PDPMV1 in each redundant chassis, and configure them to mirror each other’s settings. The module’s CIPconnect technology ensures seamless failover—if one chassis fails, the other takes over communication without interrupting data flow.
