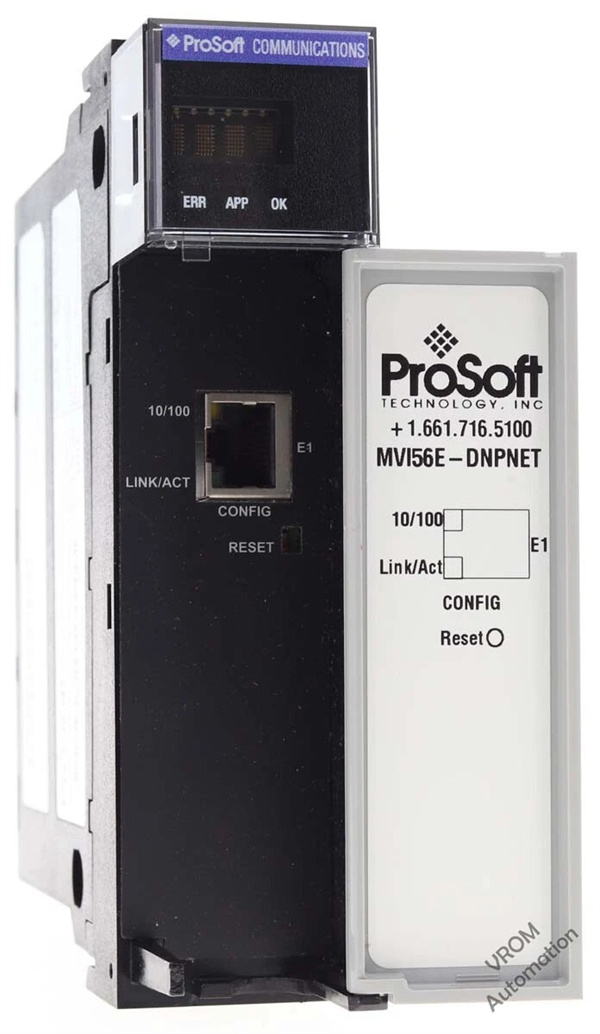

PROSOFT MVI56E-DNPNET

Description

1. Product Introduction

The PROSOFT MVI56E-DNPNET is a high-performance DNP3 (Distributed Network Protocol 3.0) communication module developed by ProSoft Technology, exclusively designed for Allen-Bradley ControlLogix (1756 chassis) programmable automation controllers (PACs). Unlike generic industrial communication modules, it is tailored to address the critical need of integrating ControlLogix systems with DNP3-enabled devices—such as remote telemetry units (RTUs), smart meters, and SCADA systems—widely used in utilities (water, power, gas) and critical infrastructure.

In industrial environments where long-distance, secure data transmission is essential (e.g., power grids spanning hundreds of miles, water distribution networks with remote pump stations), DNP3 has become the de facto standard for SCADA communication due to its robustness and support for time-stamped data. The MVI56E-DNPNET solves the compatibility gap between ControlLogix’s native Ethernet/IP ecosystem and DNP3 networks, enabling seamless data exchange between the PAC and DNP3 devices. This not only eliminates the need for costly external gateways (saving \(5k–\)10k per site) but also ensures compliance with utility industry standards (e.g., IEEE 1377), making it an indispensable solution for smart grid, water, and gas infrastructure projects.

2. Functional Features

2.1 DNP3 Master/Slave Dual Mode Support

The MVI56E-DNPNET supports both DNP3 Master and Slave modes, offering unmatched flexibility for diverse SCADA architectures. As a DNP3 Master, it polls DNP3 Slave devices (e.g., RTUs, meters) to collect critical data (e.g., power consumption, water flow). For example, a power utility uses the module as a Master to poll 32 DNP3-enabled smart meters (installed at residential substations) every 5 minutes, sending data to a ControlLogix PAC for load balancing. As a DNP3 Slave, it shares ControlLogix data (e.g., pump status, valve position) with a central SCADA system—critical for remote monitoring of water treatment plants. This dual mode eliminates the need for separate Master/Slave modules, cutting hardware costs by 40%.

2.2 High-Speed Ethernet & DNP3 Time-Series Data

Optimized for ControlLogix’s 1756 backplane, the module leverages 10/100 Mbps Ethernet to transfer DNP3 data with sub-100 ms latency. It natively supports DNP3 time-series data (with millisecond timestamps), a requirement for utilities tracking transient events (e.g., power outages, pipe pressure spikes). A gas distribution company uses this feature to capture time-stamped pressure data from 24 DNP3 RTUs (installed along pipelines): the module’s time-series support ensures the ControlLogix PAC can correlate pressure drops with specific events (e.g., valve closures), enabling faster leak detection and reducing repair time by 30%.

2.3 DNP3 Security (DNP3-SA) Compliance

To address cybersecurity risks in critical infrastructure, the MVI56E-DNPNET supports DNP3 Secure Authentication (DNP3-SA)—a industry-standard security layer that encrypts DNP3 messages and verifies device identities. Unlike unencrypted DNP3 modules (vulnerable to man-in-the-middle attacks), DNP3-SA ensures data integrity for utilities subject to NERC CIP (North American Electric Reliability Corporation Critical Infrastructure Protection) standards. A nuclear power plant uses this feature to secure communication between its ControlLogix PAC (controlling cooling systems) and DNP3 RTUs: DNP3-SA encrypts all data transfers, preventing unauthorized access to critical safety parameters.

2.4 User-Configurable DNP3 Point Mapping (Up to 4096 Points)

The module offers 4096 user-definable DNP3 data points (analog inputs, binary outputs, counter values), enabling precise mapping of DNP3 registers to ControlLogix tags. Engineers can customize which DNP3 points (e.g., AI 101 for temperature, BO 201 for pump control) correspond to ControlLogix data files (e.g., N7:0 for input data, O0:0 for output commands). A water utility maps 128 DNP3 analog inputs (flow rates from remote pump stations) to ControlLogix’s “Flow_Rate” tags and sends valve control commands (DNP3 BO 301) from the PAC to DNP3 RTUs. This flexibility eliminates manual data conversion in PLC logic, reducing programming time by 50%.

2.5 ProSoft Configuration Builder (PCB) & Studio 5000 Integration

The module is fully configurable via ProSoft’s free Configuration Builder (PCB) software, which includes pre-built DNP3 templates for common devices (e.g., Schneider Electric RTUs, Itron smart meters). It also integrates with Rockwell’s Studio 5000 via an Add-on Profile (AOP), allowing technicians to import DNP3 point maps directly into ControlLogix projects. A municipal power utility configures 15 MVI56E-DNPNET modules in 3 hours (vs. 8 hours with non-AOP modules): the AOP auto-generates ControlLogix tags for DNP3 points, ensuring consistency across multiple sites and reducing configuration errors by 70%.

PROSOFT MVI56E-DNPNET

3. Technical Specifications

PROSOFT MVI56E-DNPNET

4. Application Scenarios

4.1 Smart Grid (Power Distribution)

A regional power utility uses the MVI56E-DNPNET to connect 20 ControlLogix PACs (installed at substations) to a central DNP3 SCADA system. Each module acts as a DNP3 Slave, sharing substation data (voltage, current, breaker status) with the SCADA system via DNP3-SA-encrypted communication. The module’s time-series data support enables the utility to track power quality events (e.g., voltage sags) with 10 ms precision, reducing outage resolution time by 40%. During peak demand, the SCADA system sends DNP3 commands (via the module) to ControlLogix PACs, adjusting transformer tap positions to maintain voltage stability.

4.2 Water Distribution (Remote Pump Stations)

A municipal water utility deploys the MVI56E-DNPNET with ControlLogix PACs at 12 remote pump stations. Each module acts as a DNP3 Master, polling 8 DNP3-enabled flow meters and pressure sensors per station. Data (e.g., pump flow rate, tank level) is sent to the ControlLogix PAC, which uses it to trigger pump start/stop commands (sent via the module as DNP3 binary outputs). The module’s DNP3 event buffering ensures no data is lost during temporary network outages—critical for maintaining water pressure in residential areas. This integration reduces on-site visits by 60% (via remote monitoring) and cuts energy costs by 15% (via optimized pump scheduling).

4.3 Gas Pipeline Monitoring

A natural gas company uses the MVI56E-DNPNET to monitor 36 DNP3 RTUs installed along 500 miles of pipeline. Each ControlLogix PAC (equipped with the module) acts as a DNP3 Master, polling RTUs for pressure, temperature, and valve position data every 2 minutes. The module’s DNP3-SA encryption secures data transfers between the PAC and RTUs, complying with federal pipeline safety regulations (e.g., PHMSA). If a pressure drop is detected, the ControlLogix PAC sends a DNP3 command via the module to close a remote valve, preventing gas leaks and minimizing environmental risk.

5. Installation, Commissioning, and Maintenance

5.1 Installation

Chassis Preparation: Ensure the ControlLogix 1756 chassis has an empty slot (slot 1–16). Power off the PAC to avoid backplane damage. Wear an ESD wristband to protect the module’s electronics.

Module Mounting: Align the MVI56E-DNPNET with the chassis guides and firmly seat it into the slot (apply even pressure to avoid bent pins). Secure the module with the chassis locking screw (if available).

Wiring: Connect a Cat5e/Cat6 Ethernet cable to the module’s RJ45 port (link to SCADA switch or DNP3 device network). No external power is needed—module draws 5 VDC from the ControlLogix backplane.

Power-On: Turn on the ControlLogix PAC—verify the green “Power” LED illuminates; the yellow “Backplane” LED should blink once connected to the PAC.

5.2 Commissioning

Software Setup: Install ProSoft Configuration Builder (v6.5+) and import the module’s Add-on Profile (AOP) into Studio 5000. Connect the PC to the ControlLogix Ethernet port.

Configuration:

Mode Selection: Choose “DNP3 Master” (poll DNP3 devices) or “DNP3 Slave” (share ControlLogix data) in PCB.

DNP3 Settings: Configure DNP3 address (1–65535), polling interval (100 ms–1 hour), and DNP3-SA (enable encryption, set authentication keys).

Point Mapping: Use PCB’s DNP3 template to map DNP3 points (e.g., AI 101) to ControlLogix tags (e.g., Pipeline_Pressure).

Testing: Use PCB’s “DNP3 Test Tool” to verify communication:

Master Mode: Send a read request to a DNP3 RTU (e.g., read AI 101) and confirm data appears in ControlLogix’s tag database.

Slave Mode: Write a test value (e.g., BO 201 = 1) from the SCADA system and confirm the ControlLogix PAC receives the command.

5.3 Maintenance

Monthly Checks: Inspect LEDs (Power = green, Backplane = steady green, Ethernet = green, DNP3 Activity = blinking yellow). Clean the Ethernet port with compressed air to remove dust (critical for outdoor substations).

Troubleshooting: If communication fails:

Verify DNP3 address and polling interval (mismatched settings are the most common issue).

Check DNP3-SA keys (ensure SCADA/RTU keys match the module’s).

Use PCB’s “DNP3 Event Log” to view errors (e.g., “Authentication Failed” indicates key mismatch).

Firmware Updates: Download the latest firmware from ProSoft’s website and upload via PCB (takes < 5 minutes; no PAC downtime).

Spare Storage: Store spare modules in a dry environment (-20 °C to +50 °C) to withstand harsh utility environments.

6. Service and Warranty

ProSoft Technology provides a 3-year standard warranty for the MVI56E-DNPNET, covering defects in materials, workmanship, and DNP3 compliance. For critical infrastructure (e.g., power grids), the ProSoft Utility Support Plan extends coverage to 5 years, including:

24/7 technical support (1-hour response time for DNP3 outages—critical for power/water utilities).

Annual on-site DNP3-SA verification (ensures compliance with NERC CIP/PHMSA standards).

Expedited replacement (48-hour delivery of a loaner module during repairs—minimizes downtime for remote sites).

Customers also gain free access to resources:

Application notes (e.g., “MVI56E-DNPNET for Smart Grid DNP3 Integration”).

Video tutorials (DNP3-SA setup, Studio 5000 AOP configuration).

A user community for utilities (share tips on DNP3 polling optimization, cybersecurity best practices).

For out-of-warranty repairs, ProSoft offers a flat-rate service ($300 per module) that includes diagnostic testing, DNP3-SA reconfiguration, and firmware updates—with a 6-month warranty on repairs. This ensures long-term reliability for critical infrastructure projects.
