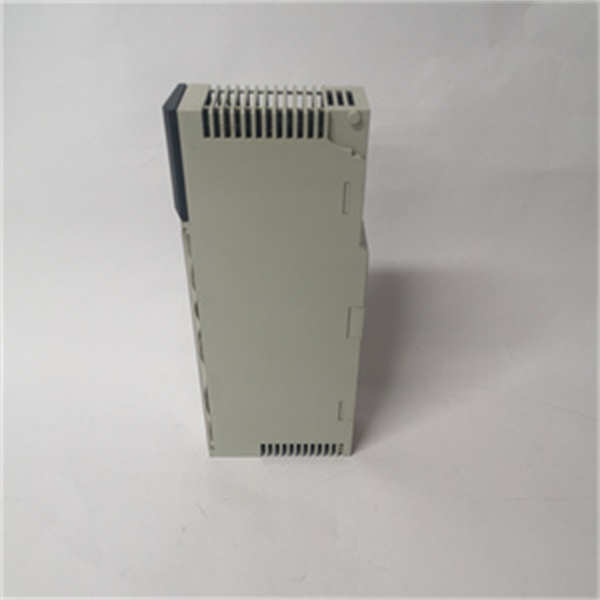

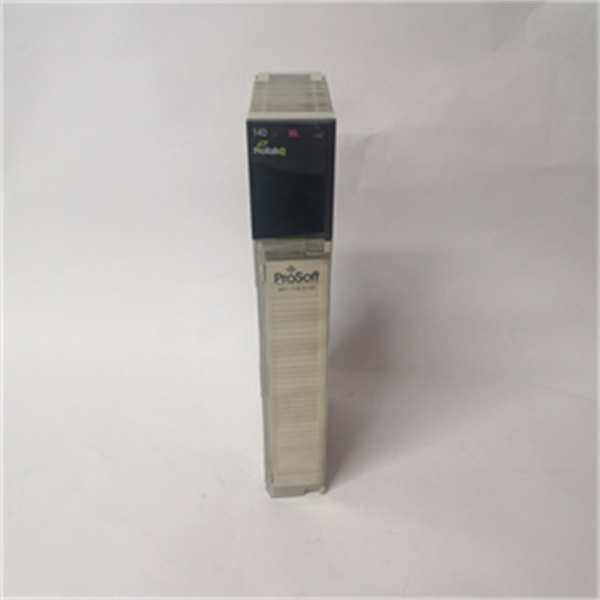

PROSOFT PTQ-PDPMV1

Description

1. Product Introduction

The PROSOFT MVI94 – MCM – MHI is a high – performance Modbus master/slave communication module specifically designed for Allen – Bradley 1794 Flex I/O systems. In the complex landscape of industrial automation, seamless communication between different devices is crucial. This module serves as a vital bridge, enabling efficient data exchange between the Allen – Bradley 1794 Flex I/O systems and a vast array of Modbus – compatible devices.

ProSoft Technology, the manufacturer, has a long – standing reputation for developing reliable and innovative industrial communication solutions. The MVI94 – MCM – MHI is a testament to their commitment to providing products that meet the evolving needs of modern industrial environments. It adheres to industry – recognized standards, ensuring compatibility and interoperability with a wide range of equipment.

2. Parameter Details

PROSOFT PTQ-PDPMV1

3. Functional Highlights

3.1 Versatile Protocol Support

The ability of the MVI94 – MCM – MHI to support both Modbus RTU and ASCII protocols is a significant advantage. In an industrial facility with a mix of legacy and modern equipment, this versatility allows it to communicate with a wide variety of Modbus – enabled devices. For example, older sensors that use the ASCII protocol can co – exist and communicate seamlessly with newer actuators that operate on the RTU protocol. This eliminates the need for complex protocol – conversion gateways, reducing system complexity and cost.

3.2 User – Defined Memory Mapping

With user – defined memory mapping, engineers have the flexibility to configure the module according to the specific requirements of their industrial application. In a manufacturing plant where different production lines have unique data – handling needs, the user – defined memory mapping enables efficient organization of data. For instance, if one production line requires quick access to a specific set of Modbus registers for real – time control, the memory can be mapped in a way that optimizes the data transfer for that particular application.

3.3 LED – Based Diagnostics

The LED indicators on the MVI94 – MCM – MHI provide real – time visual feedback on the module’s operation. In a noisy industrial environment where audible alarms may go unnoticed, these LEDs are invaluable. A green LED for module status indicates normal operation, while a red error LED can quickly alert maintenance personnel to potential issues. This helps in reducing downtime as problems can be identified and addressed promptly. For example, if the serial activity LED stops blinking, it may indicate a communication issue with the connected Modbus device, prompting immediate investigation.

4. Application Scenarios

4.1 Manufacturing Industry

In a manufacturing plant, the MVI94 – MCM – MHI can be used to connect the Allen – Bradley 1794 Flex I/O system to Modbus – compatible sensors and actuators on the production line. It can monitor the status of conveyor belts, control the speed of motors, and receive data from temperature and pressure sensors. For example, in a food – packaging factory, the module can communicate with Modbus – enabled weighing scales to ensure accurate product packaging weights. It can also control the operation of filling machines by receiving commands from the central control system and sending control signals to the Modbus – compatible actuators of the filling equipment.

4.2 Energy Sector

In power generation plants or oil and gas facilities, the module plays a crucial role. In a power plant, it can connect the control system to Modbus – based power meters, circuit breakers, and other electrical equipment. It enables real – time monitoring of power consumption, voltage levels, and equipment status. For example, it can receive data from Modbus – compatible smart meters installed at different points in the power distribution network and transmit this information to the SCADA system for analysis. In an oil and gas refinery, the MVI94 – MCM – MHI can communicate with Modbus – enabled flow meters, pressure sensors, and valves, helping to optimize the refining process.

4.3 Building Automation

In large commercial buildings, the MVI94 – MCM – MHI can be integrated into the building management system. It can connect to Modbus – compatible devices such as HVAC (Heating, Ventilation, and Air – Conditioning) controllers, lighting systems, and access control panels. For example, it can receive temperature and humidity data from Modbus – enabled sensors in different zones of the building and send control signals to the HVAC system to adjust the indoor climate. It can also interface with Modbus – based lighting control panels to manage energy – efficient lighting schedules, contributing to overall building energy management.

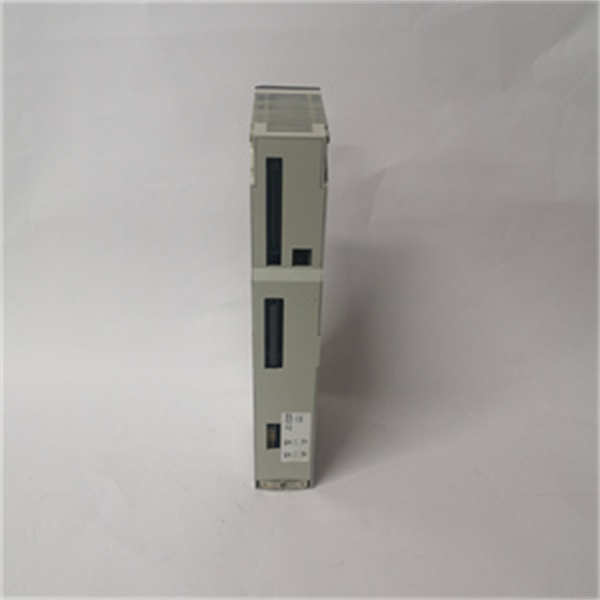

PROSOFT PTQ-PDPMV1

5. Installation, Commissioning, and Maintenance

5.1 Installation

Before installation, ensure that the 1794 Flex I/O system is powered off to prevent electrical accidents. Wear an electrostatic discharge (ESD) wristband to protect the module from static electricity damage. Locate an available single – slot in the 1794 backplane. Align the MVI94 – MCM – MHI module with the slot and firmly insert it, making sure all pins are properly seated. Connect the external power supply within the specified voltage range (12 – 24 VDC). For the serial connections, use appropriate cables according to the selected interface (RS – 232, RS – 422, or RS – 485) and ensure proper grounding to minimize electromagnetic interference.

5.2 Commissioning

After installation, power on the 1794 Flex I/O system. Use the appropriate configuration software to set up the module. Define the communication protocol (Modbus RTU or ASCII), set the device address, and configure the user – defined memory mapping. Test the connection by communicating with a known Modbus – compatible device. Check the LED indicators to confirm proper operation. If there are any issues, review the configuration settings and ensure that all connections are secure. For example, if the module fails to communicate with a Modbus slave device, double – check the baud rate and parity settings, as well as the physical connection.

5.3 Maintenance

Regular maintenance is essential to ensure the reliable operation of the MVI94 – MCM – MHI. Periodically inspect the module for any signs of physical damage, such as cracks or loose connectors. Check the LED indicators regularly to monitor the module’s status. If there are any communication issues, use the configuration software to review the data transfer logs and network settings. Clean the module and its connectors to remove dust and debris, which can affect performance over time. Update the module’s firmware as recommended by ProSoft Technology to ensure compatibility with the latest Modbus devices and to benefit from any bug fixes or performance improvements. Keep spare modules in a suitable storage environment, protected from extreme temperatures and humidity, for quick replacement in case of module failure.

6. Service and Warranty

ProSoft Technology offers a standard 1 – year warranty for the MVI94 – MCM – MHI, covering defects in materials and workmanship. In case of a defective module within the warranty period, ProSoft will repair or replace the module free of charge. For customers who require additional support, ProSoft provides comprehensive technical support services. Their team of experts can assist with installation, configuration, and troubleshooting of the module in industrial applications. They also offer training resources, including user manuals, application notes, and online tutorials, to help customers make the most of the module’s features. For out – of – warranty repairs, ProSoft has a reliable repair service that can diagnose and fix issues with the module, providing customers with a cost – effective solution to keep their industrial communication systems running smoothly.
