Description
System Architecture & Operational Principle

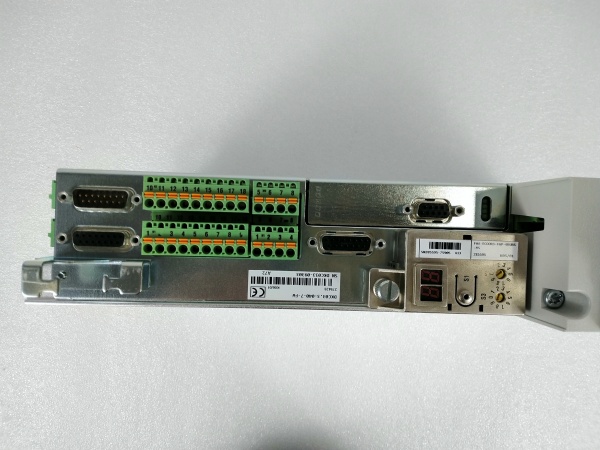

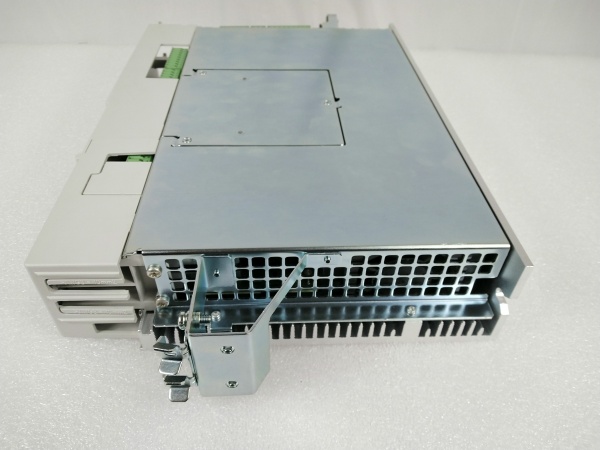

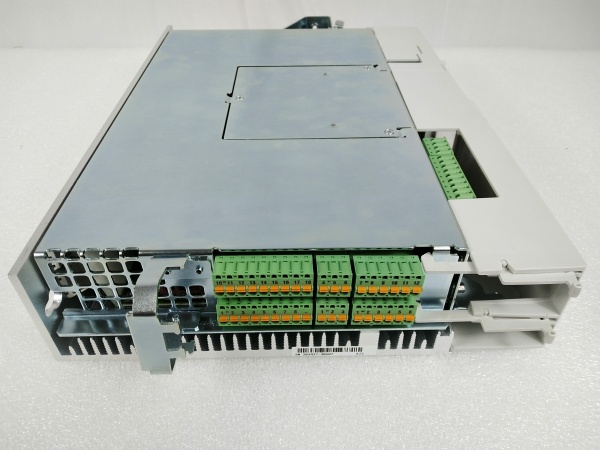

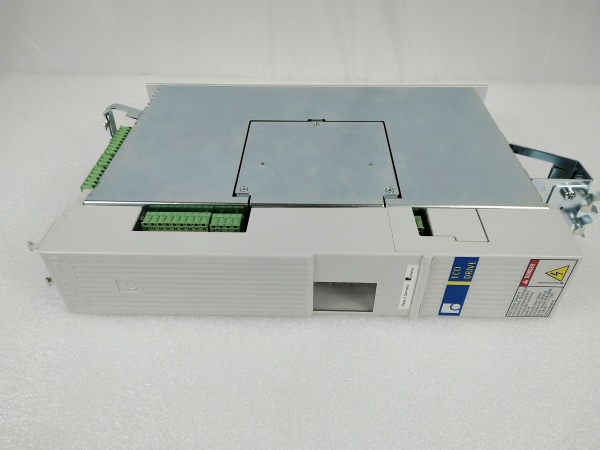

The REXROTH DKC03.3-040-7-FW is a digital AC servo drive designed to sit at the Purdue Model Level 1 (Basic Control), interfacing directly with servo motors (e.g., REXROTH MSK series) and upstream controllers (e.g., Siemens SIMOTION, Allen-Bradley Kinetix). It connects to the motor via a power cable (L1/L2/L3) and to the controller via a fieldbus (e.g., SERCOS, Profibus).
Upstream Communication: Receives motion commands (speed, position, torque) from a PLC or motion controller. The drive decodes these commands into digital signals for processing.
Downstream Operation: Converts the commands into PWM (Pulse-Width Modulation) signals, which drive the servo motor’s IGBT (Insulated Gate Bipolar Transistor) modules. The motor’s encoder feedback (e.g., 1 µm resolution) is sent back to the drive for closed-loop control, ensuring precise motion.
Inherent Advantages:
-
Modular Design: Fits into standard 19-inch racks, allowing easy expansion or replacement.
-
Hot-Swap Capability: Can be replaced without shutting down the system, reducing downtime during maintenance.
-
Fieldbus Compatibility: Supports multiple protocols (SERCOS, Profibus), enabling seamless integration with legacy systems.
REXROTH DKC03.3-040-7-FW
Core Technical Specifications
-
Physical Interface: Screw terminals (power/control signals), fieldbus port (SERCOS/Profibus).
-
Signal Type: PWM (motor control), analog (0-10V/4-20mA for auxiliary signals).
-
Rated Current: 40A (continuous), 80A (peak).
-
Bus Voltage: 300V DC (nominal).
-
Communication Bus: SERCOS (supports real-time data transfer up to 16 Mbps), Profibus (optional).
-
Power Draw: 10-50W (typical, depending on load).
-
Operating Temperature: 0°C to 45°C (32°F to 113°F).
-
Storage Temperature: -40°C to 85°C (-40°F to 185°F).
-
Weight: ~7.5 kg (16.5 lbs).
-
Certifications: CE, UL, RoHS (compliant with industrial safety standards).
Customer Value & Operational Benefits
Reduced Downtime with Hot-Swap Design
The DKC03.3-040-7-FW’s modular design allows technicians to replace a faulty drive in under 30 minutes—critical for industries like automotive manufacturing, where every minute of downtime costs thousands of dollars.
Precise Motion Control for Quality Improvement
With support for closed-loop control (via encoder feedback), the drive achieves ±0.001 mm positioning accuracy. A manufacturer reported a 20% reduction in defective parts after upgrading to this drive.
Flexible Integration with Legacy Systems
The drive’s support for SERCOS and Profibus protocols makes it easy to integrate with older PLCs. A packaging line upgraded from a legacy servo system to the DKC03.3-040-7-FW in 2 hours, with no changes to the existing PLC program.
Field Engineer’s Notes (From the Trenches)
When installing the DKC03.3-040-7-FW, always verify the 24V DC control power with a multimeter before connecting it to the drive. I once skipped this step and got a “F8070” fault (external 24V error)—took an hour to debug.Use shielded twisted-pair cable for the encoder feedback. In a steel mill, unshielded cables picked up EMI from nearby motors, causing the drive to lose position feedback. Ground the shield at one end only.Label the power terminals clearly (“L1/L2/L3” for motor power, “24V” for control power). I’ve seen technicians reverse the polarity, frying the drive’s power supply. Use a permanent marker to write on the terminal block.
Real-World Applications
-
Automotive Welding Robot ControlThe DKC03.3-040-7-FW is used to control 6-axis welding robots in an automotive assembly line. It receives G-code commands from a Siemens SIMOTION controller and drives REXROTH MSK060C servo motors, achieving ±0.005 mm positioning accuracy for weld seams.
-
CNC Milling Machine Axis ControlA CNC milling machine uses the drive to control 3 linear axes (X/Y/Z) and 2 rotary axes (A/B). The SERCOS interface ensures real-time communication with the controller, allowing the machine to mill complex parts with tight tolerances (±0.01 mm).
REXROTH DKC03.3-040-7-FW
High-Frequency Troubleshooting FAQ
Q: What is the correct way to diagnose a “F8070” fault on the DKC03.3-040-7-FW?
A: The “F8070” fault indicates an external 24V DC power error. First, check the 24V power supply with a multimeter (should be 24V ±10%). Next, verify the wiring between the power supply and the drive—loose connections are a common cause. If the power supply is working, replace the drive’s 24V rectifier module (part number: 109-0785-4A19-04).
Q: Can the DKC03.3-040-7-FW be used with non-REXROTH servo motors?
A: Yes, but only if the motor supports encoder feedback (e.g., 1 µm resolution). For example, Siemens 1FK7 servo motors are compatible—you’ll need a SERCOS-to-Ethernet converter (e.g., REXROTH CSB01.1N-PB-ENS-NNNN-NN) to integrate them.
Q: How do I update the firmware on the DKC03.3-040-7-FW?
A: Use REXROTH’s IndraWorks software (version 5.0 or later). Connect the drive to a PC via USB, open IndraWorks, and follow the firmware update wizard. Make sure the drive is in “service mode” (set via the front panel) before updating.
Q: What is the maximum cable length for the SERCOS interface?
A: The maximum cable length for SERCOS is 100 meters (328 feet) per segment. For longer distances, use a SERCOS repeater (e.g., REXROTH CSB01.1N-PB-ENS-NNNN-NN) to extend the network.
