REXROTH HCS02.1E-W0028-A-03-NNNN

High Precision and Reliability:



The REXROTH HCS02.1E-W0028-A-03-NNNN offers high-precision frequency control with ±0.1% accuracy, ensuring reliable performance in demanding industrial environments.



Robust Industrial Design:



The converter is designed to operate reliably within a wide temperature range (0°C to 40°C) and can withstand harsh industrial conditions.



Versatile Applications:



The REXROTH HCS02.1E-W0028-A-03-NNNN is suitable for a wide range of applications, including manufacturing, energy, and material handling.



Easy Integration:



The converter features multiple communication interfaces, ensuring seamless integration with existing systems.



Advanced Safety Features:



The converter includes safety features such as safe torque off (STO), ensuring enhanced safety in industrial environments.

Manufacturer:
Part number: REXROTH HCS02.1E-W0028-A-03-NNNN
Our extensive catalogue, including : REXROTH HCS02.1E-W0028-A-03-NNNN , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

Detailed Parameter Table

Parameter Name Parameter Value
Product model REXROTH HCS02.1E-W0028-A-03-NNNN
Manufacturer Bosch Rexroth
Product category Single-Axis Converter
Operating Voltage 3 x AC 200…500 V ±10%
Output Frequency 0-1600 Hz (at 16 kHz switching frequency)
Overload Capacity 150% x 60 seconds, 200% x 3.5 seconds
Communication Interface Not specified
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -25°C to 70°C
Dimensions (W x H x D) 65 mm x 251.5 mm x 265 mm
Weight 4.3 kg
Certifications CE, UL
I/O Channels 2 x Analogue/Digital Inputs, 5 x Digital Inputs, 1 x Analogue Output, 2 x Relay Contact sets
Cooling Method Air, internal (through integrated blower)
IP Rating IP20
Power Range 1.5 to 11 kW
Maximum Current 28 A

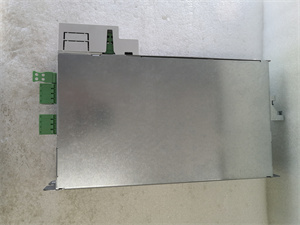

REXROTH HCS02.1E-W0028-A-03-NNNN

REXROTH HCS02.1E-W0028-A-03-NNNN

Product Introduction

The REXROTH HCS02.1E-W0028-A-03-NNNN is a high-performance single-axis converter designed for precise and efficient control in industrial automation applications. It is part of the HCS IndraDrive Controllers series, known for its compact design and robust performance. This converter is suitable for handling and mounting systems, providing reliable and precise control over a wide range of power outputs.

Core Advantages and Technical Highlights

High Precision and Reliability:



The REXROTH HCS02.1E-W0028-A-03-NNNN offers high-precision frequency control with ±0.1% accuracy, ensuring reliable performance in demanding industrial environments.



Robust Industrial Design:



The converter is designed to operate reliably within a wide temperature range (0°C to 40°C) and can withstand harsh industrial conditions.



Versatile Applications:



The REXROTH HCS02.1E-W0028-A-03-NNNN is suitable for a wide range of applications, including manufacturing, energy, and material handling.



Easy Integration:



The converter features multiple communication interfaces, ensuring seamless integration with existing systems.



Advanced Safety Features:



The converter includes safety features such as safe torque off (STO), ensuring enhanced safety in industrial environments.

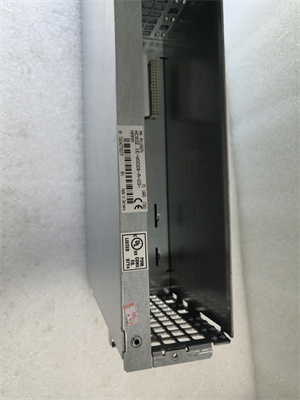

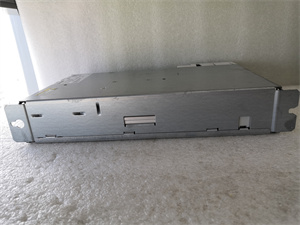

REXROTH HCS02.1E-W0028-A-03-NNNN

REXROTH HCS02.1E-W0028-A-03-NNNN



Typical Application Scenarios

The REXROTH HCS02.1E-W0028-A-03-NNNN is widely used in various industrial sectors:

Manufacturing: For precise control in assembly lines and machine tools.

Energy: For pump control in water treatment plants.

Material Handling: For conveyor speed control in automotive assembly lines.

Food and Beverage Production: For controlling motion equipment on production lines.

Related Model Recommendations

REXROTH HCS02.1E-W0012-A-03-NNNN: A similar model with a lower maximum current of 12 A, suitable for applications requiring lower power.

REXROTH HCS02.1E-W0054-A-03-NNNN: A model with a higher maximum current of 54 A, suitable for applications requiring higher power.

Installation, Commissioning, and Maintenance Instructions

Installation Preparation:

Ensure the installation environment meets the specified temperature and humidity requirements. The converter should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (3 x AC 200…500 V ±10%) to avoid damage to the converter.

Maintenance Suggestions:

Regularly inspect the installation to ensure the converter is securely mounted and all connections are tight. Monitor the operational status of the converter to detect any signs of malfunction early. Conduct functional testing on the converter at least once a year to ensure optimal performance.

Service and Guarantee Commitment

Bosch Rexroth provides comprehensive support for the REXROTH HCS02.1E-W0028-A-03-NNNN, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. Bosch Rexroth’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
