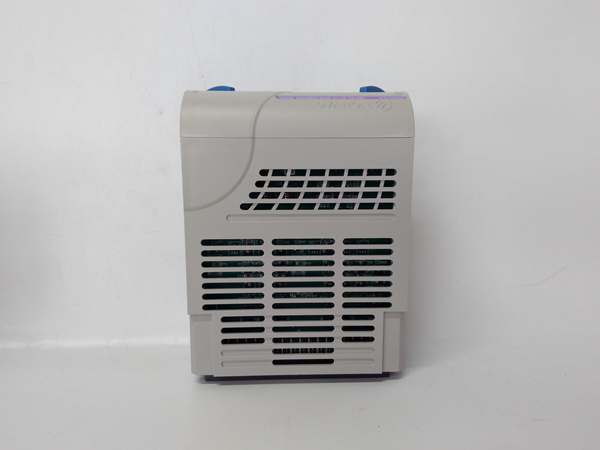

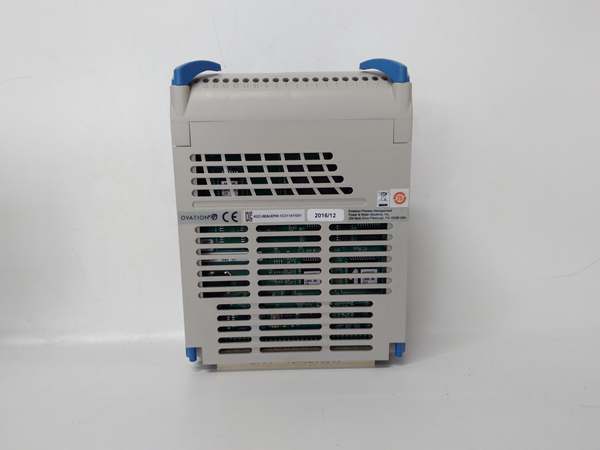

Westinghouse 1C31147G01 | High-Speed Pulse Input Card for Industrial Automation

  • Model: 1C31147G01
  • Alt. P/N: None listed (verify with Emerson for legacy equivalents)
  • Series: Ovation (Emerson)
  • Type: 16-Channel Pulse Accumulator Module
  • Key Feature: 16 isolated pulse input channels (5/12V/24/48V) with 32-bit counting and millisecond-level time-stamping
  • Primary Use: Interface between Ovation DCS and field devices (flow meters, encoders, sensors) for critical pulse signal acquisition
Get a Quote
Manufacturer:
Part number: 1C31147G01
Our extensive catalogue, including : 1C31147G01 , is available now for dispatch to the worldwide.

Description

Key Technical Specifications

  • Model Number: 1C31147G01
  • Manufacturer: Emerson (formerly Westinghouse)
  • Number of Channels: 16 independent pulse input channels
  • Input Voltage Ranges: 5V, 12V, 24V, 48V DC (configurable per channel)
  • Counting Speed: Up to 2 kHz (medium speed) / 100 MHz (high speed, with de-bounce disabled)
  • Counter Resolution: 32-bit (supports large pulse counts without overflow)
  • Isolation: Optical isolation (channel-to-channel and channel-to-backplane) for noise immunity
  • Time-Stamping: Millisecond-level precision (critical for Sequence of Events (SOE) recording)
  • Response Time: ≤10ms (On/Off transitions, typical)
  • Power Supply: 24V DC (±10% tolerance) via Ovation backplane
  • Power Consumption: ~5W (low-power design for centralized cabinets)
  • Operating Temperature: –20°C to +70°C (IEC 60068-2 compliant)
  • Storage Temperature: –40°C to +85°C
  • Humidity Range: 0–95% RH (non-condensing)
  • Dimensions: ~121mm × 52mm × 165mm (single-slot Ovation chassis)
  • Weight: ~0.32 kg (0.71 lbs)
  • Certifications: CE, RoHS, UL 508 (industrial safety)

    WESTINGHOUSE 1C31147G01

    WESTINGHOUSE 1C31147G01

Field Application & Problem Solved

In industrial automation—from power plants to chemical refineries—precise pulse signal acquisition​ is essential for monitoring flow rates, rotational speeds, and position feedback. The biggest challenge with legacy pulse input modules is finding a solution that balances high-speed counting​ (for accurate data) with reliable signal integrity​ (to withstand harsh environments). Solid-state modules often fall short: they lack sufficient isolation, leading to noise-induced false counts, or they cannot capture high-frequency pulses without degradation.
The 1C31147G01 solves this by providing 16 isolated pulse input channels​ with 32-bit counting and millisecond-level time-stamping. You’ll find it in:
  • Power generation: Monitoring turbine speed (via encoders), generator frequency, and fuel flow rates (via flow meters).
  • Chemical/petrochemical: Tracking distillation column reflux ratios (via flow meters) and reactor agitation speeds (via tachometers).
  • Manufacturing: Measuring conveyor belt speeds (via encoders) and robotic arm positions (via potentiometers).
Its core value is precision and reliability in mission-critical applications. The optical isolation prevents cross-talk and surge damage, ensuring stable operation in high-EMI environments like power plants. The 32-bit counting allows for tracking large pulse volumes (e.g., millions of pulses from a flow meter) without overflow, while the millisecond-level time-stamping enables accurate SOE recording—critical for diagnosing faults (e.g., identifying the root cause of a turbine trip).

Installation & Maintenance Pitfalls (Expert Tips)

1. Ignoring Optical Isolation Requirements​
A common rookie mistake is assuming all pulse input modules have adequate isolation. The 1C31147G01’s optical isolation is critical for preventing noise from nearby devices (e.g., motors, relays) from corrupting pulse signals. Always verify isolation with a megger (insulation tester) before installation—we once had a client skip this step, and a surge from a nearby motor damaged the module’s input channels, causing a 4-hour downtime in a power plant.
2. Incorrect Wiring of Pulse Inputs​
Pulse inputs (e.g., from encoders) require proper wiring to avoid signal degradation. Always use shielded twisted-pair cables for field wiring, and ground the shield at one end (preferably the module end). Un-shielded cables can pick up EMI, leading to false counts—we fixed a recurring flow meter discrepancy in a refinery by replacing un-shielded cables with shielded ones.
3. Overlooking De-Bounce Configuration​
The 1C31147G01 has a software-configurable de-bounce circuit to filter out noise from mechanical switches. For high-speed pulses (e.g., from encoders), disable the de-bounce circuit to avoid missing counts. For low-speed pulses (e.g., from pushbuttons), enable the de-bounce circuit to prevent false triggers—we once had a client use the wrong setting, leading to missed encoder pulses and incorrect speed readings.
4. Forgetting Hot-Swap Procedure​
The 1C31147G01 supports hot-swapping, but you must follow the correct procedure:
  1. Remove the module from the chassis.
  2. Wait 5 seconds (to allow the backplane to discharge).
  3. Insert the new module.
    If you skip the 5-second wait, you risk damaging the backplane’s connector pins. We had a junior engineer yank a module out mid-operation—this fried the backplane connector, requiring a $500 repair and 8 hours of downtime.

    WESTINGHOUSE 1C31147G01

    WESTINGHOUSE 1C31147G01

Technical Deep Dive & Overview

The 1C31147G01 is a 16-channel pulse accumulator module​ designed exclusively for Emerson’s Ovation Distributed Control System (DCS). It acts as a bridge between the DCS’s backplane (which carries power and data) and the field devices (which provide pulse signals). Here’s how it works:
  1. Signal Reception: The module receives pulse signals from field devices (e.g., flow meters, encoders) via 5V, 12V, 24V, or 48V DC inputs.
  2. Optical Isolation: Each channel uses an optocoupler to isolate the field wiring from the DCS backplane, preventing surge damage and cross-talk.
  3. Signal Conditioning: The module’s internal circuitry filters out noise (via the de-bounce circuit) and converts the analog pulse signal to a digital value.
  4. Counting & Time-Stamping: A 32-bit counter tracks the number of pulses, while a built-in real-time clock (RTC) assigns a millisecond-level timestamp to each pulse.
  5. Digital Conversion: The module converts the counted pulses and timestamps to digital data and sends it to the Ovation controller via the backplane.
  6. Status Indication: Front-panel LEDs provide real-time feedback for each channel (ON/OFF), aiding in troubleshooting.
What sets the 1C31147G01 apart is its integration with Ovation DCS. The module works seamlessly with Ovation’s SOE software, which allows engineers to view pulse sequences in chronological order. This is critical for diagnosing faults—for example, if a turbine trips, the SOE log can show exactly when the encoder pulses stopped, when the flow meter pulses dropped, and when the generator fault was detected.
Another key feature is configurability. The module supports multiple input voltages (5V, 12V, 24V, 48V) and counting modes (medium/high speed), eliminating the need for multiple module types. This reduces inventory costs and simplifies maintenance—something we appreciate in the field, where time is money.

Final Notes

The 1C31147G01 is a workhorse module for critical pulse signal acquisition in industrial automation. Its combination of 16 isolated channels, 32-bit counting, and millisecond-level time-stamping makes it ideal for mission-critical applications where reliability is non-negotiable. Whether you’re upgrading a legacy system or building a new one, this module will handle the tough jobs—just remember to follow the installation tips to avoid common pitfalls.
