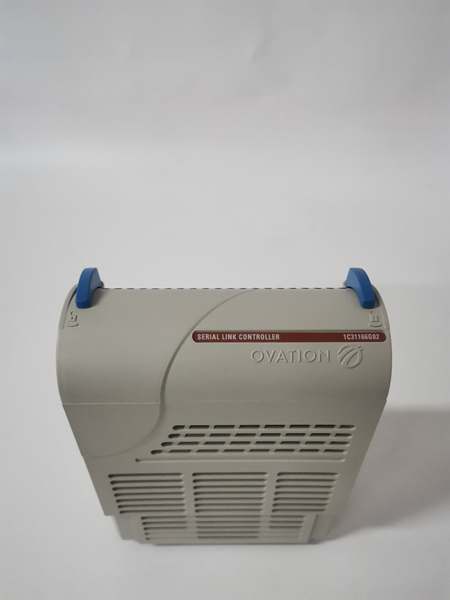

Westinghouse 1C31166G02 | Ovation DCS Serial Link Controller for High-Speed Data Exchange

Description

Product Overview

Key Technical Specifications

• Communication Protocols: Supports EtherNet/IP, Profinet, and Modbus TCP (industry-standard protocols for seamless integration with field devices).
• Data Transfer Rate: Real-time control (latency <1ms), suitable for time-critical processes like turbine speed regulation.
• Input Voltage: 24V DC (nominal, ±10% tolerance; compatible with Ovation system power requirements).
• Operating Temperature: –40°C to +70°C (IEC 60068-2 compliant, suitable for extreme environments).
• Storage Temperature: –40°C to +85°C (withstanding extreme storage conditions).
• Humidity Range: 5–95% RH (non-condensing, resistant to moisture in humid environments).
• Dimensions: Compact form factor (varies by source; typical: ~100mm × 160mm × 25mm).
• Weight: ~0.3 kg (0.66 lbs, lightweight for easy handling during maintenance).
• Certifications: CE, UL (compliant with international safety standards).



  1C31166G02

Field Application & Problem Solved

1. Supporting Multiple Protocols: It accepts EtherNet/IP, Profinet, and Modbus TCP, eliminating the need for protocol converters and simplifying system integration.
2. Ensuring High Reliability: The module’s robust design (wide temperature range, anti-vibration) ensures reliable communication in harsh environments, reducing downtime caused by communication failures.
3. Enabling Real-Time Control: The low latency (<1ms) ensures that control commands are executed promptly, which is critical for processes like turbine speed regulation or chemical reactor temperature control.

• Power Generation: Connecting Ovation DCS controllers to turbine sensors (e.g., speed, temperature) and actuators (e.g., fuel valves) for real-time process control.
• Chemical Processing: Linking Ovation DCS to field devices (e.g., flow meters, pressure transmitters) for accurate process monitoring and control.
• Water Treatment: Integrating Ovation DCS with pump actuators and sensor networks for efficient water quality management.

Installation & Maintenance Pitfalls (Expert Tips)

1. Verify Compatibility:
   • Always confirm that the 1C31166G02 is compatible with your Ovation DCS controller (e.g., Ovation 5X00 series). Mismatched components can lead to communication errors—we once had a client experience intermittent connectivity due to using an incompatible controller.
2. Ensure Proper Wiring:
   • Use shielded twisted-pair cables​ for communication links to reduce electromagnetic interference (EMI). Avoid running cables alongside power lines—this is a classic cause of “ghost” signals (false readings).
   • Tip: Ground the cable’s shield at one end (preferably the module end) to ensure effective shielding.
3. Test Communication Links:
   • After installation, test the communication link using Emerson’s diagnostic tools (e.g., Ovation Explorer) to ensure that data is being transmitted correctly. Check for error rates (e.g., CRC errors) and address any issues immediately.
4. Perform Regular Maintenance:
   • Inspect the module regularly for signs of wear (e.g., cracked casings, loose connections). Clean the module’s connectors with isopropyl alcohol to remove dirt and debris, which can cause communication failures.



     1C31166G02

Technical Deep Dive & Overview

1. Ovation Controller: Located in the central control room, it processes data from the 1C31166G02 and sends commands to field devices.
2. 1C31166G02 Communication Module: Installed in a remote I/O node or control cabinet, it manages communication between the controller and field devices.
3. Field Devices: Sensors (e.g., temperature, pressure) and actuators (e.g., valves, pumps) connected to the 1C31166G02.

• Signal Reception: The 1C31166G02 receives data from field devices via EtherNet/IP, Profinet, or Modbus TCP.
• Data Processing: The module processes the data (e.g., filtering noise) and sends it to the Ovation controller via the Ovation network.
• Command Execution: The controller sends commands (e.g., “open valve 50%”) to the 1C31166G02, which forwards them to the appropriate field device.
• Feedback: The field device sends a status signal back to the 1C31166G02, which transmits it to the controller—critical for diagnostic purposes.

• Reliability: The module’s robust design and protocol support ensure reliable communication, even in harsh environments.
• Flexibility: Supports multiple protocols, allowing for easy integration with field devices from different manufacturers.
• Ease of Use: Hot-swappable design and intuitive configuration (via Ovation Explorer) simplify maintenance and reduce downtime.

Final Notes
