Name: Westinghouse 1C31169G02 | High-Precision Analog Output Card for Ovation DCS - XINYEDA
Brand: Westinghouse

Description

Product Overview

The Emerson Ovation 1C31169G02 is an 8-channel HART analog output module designed exclusively for Emerson’s Ovation Distributed Control System (DCS). It acts as a critical bridge between the DCS’s digital control logic and field-level actuators, converting digital commands into precise analog signals (4-20mA or 0-10V) to drive valves, pumps, and other process control equipment. As part of the Ovation ecosystem, the 1C31169G02 is widely used in industries requiring high-precision process control and reliable actuator communication, such as power generation, chemical processing, and water treatment.

The 1C31169G02’s primary role is to enable accurate control of field devices while supporting HART communication for smart device diagnostics. Its 8 independent channels allow flexible configuration for different signal types and ranges, making it suitable for complex control systems with multiple output points. The module’s compliance with IEC 61508 (SIL 2) safety standards ensures it meets the demands of safety-critical applications where uninterrupted operation is non-negotiable.

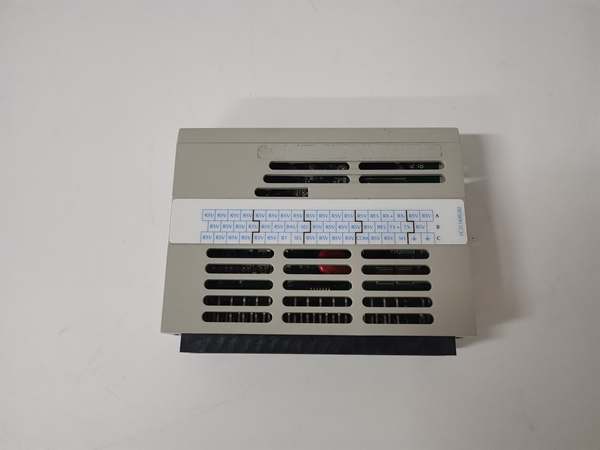

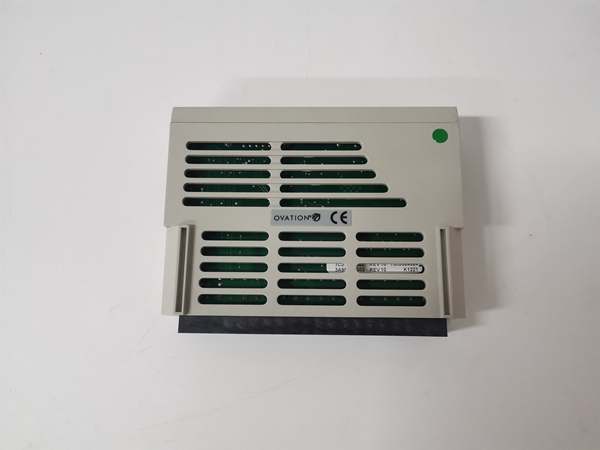

1C31169G02

Key Technical Specifications

The 1C31169G02’s technical specifications are tailored for high-reliability analog output in industrial environments, with a focus on precision, flexibility, and compatibility:

Number of Channels: 8 independent analog output channels (configurable for 4-20mA current loops or 0-10V voltage signals).
Output Signal Types: 4-20mA DC (2-wire/4-wire), 0-10V DC (supports scaled bipolar signals).
Accuracy: ±0.1% of full scale (typical at 25°C ambient), ensuring precise control of field devices.
Resolution: 16-bit digital-to-analog conversion (DAC), providing high stability for output signals.
HART Protocol Support: Yes (enables bidirectional communication with HART-enabled actuators, allowing diagnostic data retrieval).
Isolation: Channel-to-channel (500 V AC) and channel-to-system (1500 V AC) isolation (protects the DCS from field transients and noise).
Operating Temperature: -40°C to +70°C (-40°F to +158°F), suitable for harsh industrial environments.
Power Supply: 24 V DC (18-32 V DC tolerance), with redundant power support for enhanced reliability.
Output Load Capacity: Up to 600 Ω (4-20mA), compatible with most field devices.
Hot Swap Capability: Yes (allows module replacement without system shutdown, minimizing downtime).

Field Application & Problem Solved

In industrial automation, analog output signals are the backbone of process control, regulating everything from valve positions to pump speeds. The biggest challenge with legacy analog output modules is finding a solution that balances high precision (for accurate control) with intelligence (for predictive maintenance). Solid-state modules often fall short: they lack the resolution for fine-tuned adjustments, and their inability to communicate with smart devices limits diagnostic capabilities.

The 1C31169G02 solves this by combining 16-bit resolution (for precise 4-20mA output) with HART protocol support (for smart actuator communication). Here are its key applications:

Power Generation: Controlling steam valves, feedwater pump speed regulators, and fuel flow control valves in coal-fired, gas-fired, and nuclear power plants. The 16-bit resolution allows for incremental adjustments (e.g., 0.01% of full scale), which is essential for maintaining optimal turbine efficiency.
Chemical Processing: Regulating process valves (e.g., control valves in distillation columns) and variable-speed compressors. HART support enables predictive maintenance—you can read diagnostic data from smart valves (e.g., valve position, stem friction) without interrupting the process, reducing downtime and repair costs.
Water Treatment: Adjusting pump speeds and chemical dosing valves. The module’s high accuracy ensures consistent water quality, while HART communication allows for real-time monitoring of pump health.

Its core value is precision and intelligence in mission-critical applications. The 16-bit DAC ensures that the output signal is accurate to within 0.01% of full scale, which is essential for processes like chemical blending where small changes can affect product quality. The HART support also allows you to detect issues like sticking valves before they cause a process upset, enabling proactive maintenance.

Installation & Maintenance Pitfalls (Expert Tips)

To ensure optimal performance and reliability, follow these best practices for installing and maintaining the 1C31169G02:

Incorrect Wiring of Current Loops

A common mistake is reversing the polarity of the 4-20mA current loop. Always connect the positive terminal (+) of the module to the positive terminal of the field device (e.g., valve positioner) and the negative terminal (–) to the negative terminal. Reversing polarity will cause the device to misinterpret the signal—we once had a client burn out a valve positioner because of this error.
Ignoring HART Configuration

The 1C31169G02 supports HART, but you must enable it in the Ovation software. If HART is disabled, you won’t be able to read diagnostic data from smart devices. To enable HART, go to the module’s configuration page in Ovation Explorer and check the “Enable HART” box. We’ve seen technicians skip this step, leading to missed opportunities for predictive maintenance.
Poor Shielding of Field Cables

Analog signals are susceptible to electromagnetic interference (EMI) from nearby power cables or motors. Always use shielded twisted-pair cables for field wiring, and ground the shield at one end (preferably the module end). Un-shielded cables can pick up noise, causing the output signal to fluctuate—we fixed a recurring valve oscillation in a refinery by replacing un-shielded cables with shielded ones.
Skipping Calibration Checks

Even though the 1C31169G02 has high accuracy, it’s important to calibrate it annually using a precision multimeter. Check the output signal (4-20mA) against the module’s display in Ovation Explorer. If the signal deviates by more than ±0.1%, recalibrate the module using Emerson’s calibration tool. We once found a module with a 0.3% error that was causing a 5% variation in product quality—calibration fixed the issue.

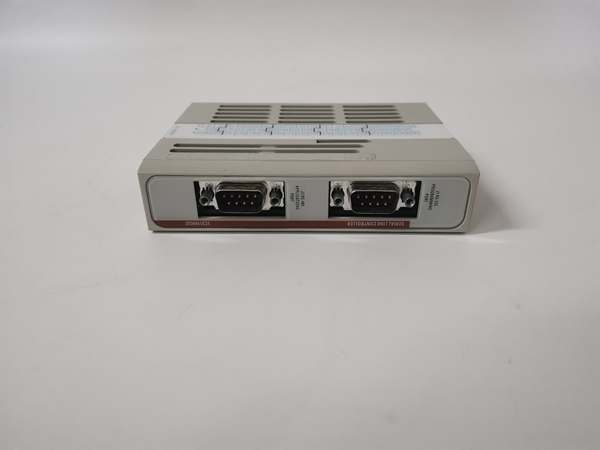

1C31169G02

Technical Deep Dive & Overview

The Emerson Ovation 1C31169G02 is an 8-channel HART analog output module designed exclusively for Emerson’s Ovation DCS. It acts as a bridge between the DCS’s digital control signals (generated by the controller) and the analog signals required by field actuators. Here’s how it works:

Signal Reception: The Ovation controller sends a digital command (e.g., “open valve 50%”) to the 1C31169G02 via the backplane.
Digital-to-Analog Conversion (DAC): The module’s internal 16-bit DAC converts the digital command into a proportional 4-20mA or 0-10V analog signal.
HART Communication: If the field device is HART-enabled, the module transmits diagnostic data (e.g., valve position, temperature) back to the DCS via the same current loop.
Output to Field Device: The analog signal is sent to the field device (e.g., valve positioner), which adjusts its position accordingly.
Feedback to DCS: The module sends a status signal back to the DCS indicating whether the output is active—critical for diagnostic purposes.

What sets the 1C31169G02 apart is its combination of precision and intelligence. The 16-bit DAC ensures that the output signal is accurate to within 0.01% of full scale, which is essential for processes like chemical blending where small changes can affect product quality. The HART support also allows you to monitor the health of field devices—for example, you can detect a sticking valve before it causes a process upset.

Another key feature is hot-swapping. The module can be replaced without shutting down the system, which is critical for 24/7 operations like power plants. The galvanic isolation also prevents field-induced noise (e.g., from nearby motors) from corrupting the DCS signals—something we learned the hard way in a paper mill where unisolated outputs caused intermittent valve malfunctions.

Final Notes

The Emerson Ovation 1C31169G02 is a reliable and essential component of the Ovation DCS, enabling high-precision analog output for industrial automation. Its compatibility with HART-enabled devices, high resolution, and robust design make it ideal for mission-critical applications where reliability is non-negotiable. Whether you’re upgrading a legacy system or building a new one, the 1C31169G02 will provide the accurate, reliable analog output you need—just remember to follow the installation tips to avoid common pitfalls.
