Description
Product Overview
The Emerson Ovation 1C31223G01 is a 16-channel relay output module designed exclusively for Emerson’s Ovation Distributed Control System (DCS). It serves as a critical interface for controlling field devices (e.g., valves, pumps, motors) by converting digital control signals from the Ovation controller into relay contacts. As part of the Ovation ecosystem, the 1C31223G01 is widely used in industries where high-reliability control is essential, such as power generation, chemical processing, and water treatment.
The 1C31223G01’s primary role is to enable precise control of field devices while providing electrical isolation between the DCS and field circuits. Its 16 independent relay outputs allow flexible configuration for multiple control points, making it suitable for complex control systems with numerous output requirements. The module’s compliance with international standards (CE, UL) ensures it meets the demands of global industrial applications.
Key Technical Specifications
The 1C31223G01’s technical specifications are tailored for high-reliability relay output in industrial environments, with a focus on flexibility, durability, and compatibility:
-
Number of Channels: 16 independent relay output channels (SPST, Form A contacts).
-
Output Type: Relay contacts (dry contact, NO/NC configurable).
-
Contact Rating: 10A @ 240VAC / 5A @ 30VDC (suitable for most industrial field devices).
-
Operating Voltage: 24V DC (nominal, ±10% tolerance; compatible with Ovation system power requirements).
-
Isolation: 1500V galvanic isolation (channel-to-channel and channel-to-backplane; protects the DCS from field transients and noise).
-
Operating Temperature: -40°C to +70°C (-40°F to +158°F; IEC 60068-2 compliant, suitable for extreme environments).
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F; withstanding extreme storage conditions).
-
Humidity Range: 5–95% RH (non-condensing; resistant to moisture in humid environments).
-
Dimensions: ~121 mm × 51 mm × 166 mm (4.76 in × 2.01 in × 6.54 in; compact for cabinet installation).
-
Weight: ~0.35 kg (0.77 lbs; lightweight for easy handling during maintenance).
- Certifications: CE, UL (compliant with international safety standards).

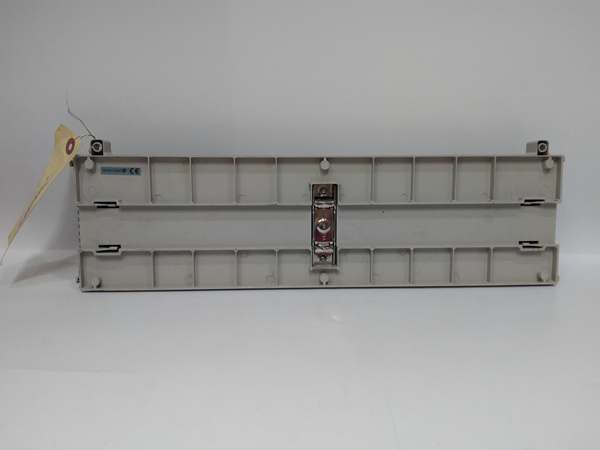

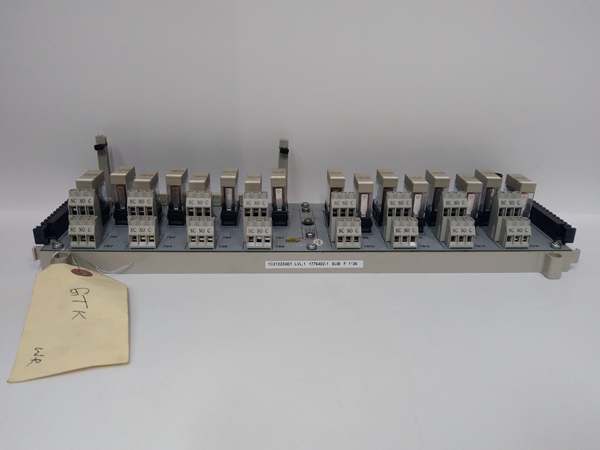

1C31223G01
Field Application & Problem Solved
In industrial automation—from power plants to chemical refineries—relay output signals are critical for controlling field devices like valves, pumps, and motors. The biggest challenge with legacy relay output modules is finding a solution that balances high reliability (for continuous operation) with flexibility (to support multiple field devices). Solid-state modules often fall short: they lack the robustness of electromechanical relays for high-current applications, and their inability to isolate field circuits leads to noise interference.
The 1C31223G01 solves this by combining 16 high-current relay outputs (for reliable control of field devices) with galvanic isolation (to protect the DCS from field transients). Here are its key applications:
-
Power Generation: Controlling boiler feedwater valves, turbine governor systems, and generator excitation circuits. The 10A contact rating allows direct control of high-current devices like motor starters, while the isolation prevents field noise from corrupting DCS signals.
-
Chemical Processing: Regulating process valves (e.g., control valves in distillation columns) and variable-speed pumps. The 16 channels allow flexible configuration for multiple control points, while the wide temperature range ensures reliable operation in harsh chemical environments.
-
Water Treatment: Adjusting pump speeds and chemical dosing valves. The low power consumption (4.56W typical) reduces heat dissipation in cabinets, while the relay outputs provide reliable control for frequent switching applications.
Its core value is reliability and flexibility in mission-critical applications. The electromechanical relays offer superior durability compared to solid-state alternatives, with a guaranteed operating life of 100,000 cycles. The galvanic isolation also prevents field-induced noise (e.g., from nearby motors) from corrupting the DCS signals—something we learned the hard way in a paper mill where unisolated outputs caused intermittent valve malfunctions.
Installation & Maintenance Pitfalls (Expert Tips)
To ensure optimal performance and reliability, follow these best practices for installing and maintaining the 1C31223G01:
-
Incorrect Wiring of Relay ContactsA common mistake is misconfiguring the relay contacts (NO/NC). Always verify the field device’s requirements (e.g., normally open for valve opening) and configure the 1C31223G01 accordingly. Reversing the contact configuration will cause the device to misinterpret the control signal—we once had a client burn out a valve positioner because of this error.
-
Ignoring Isolation RequirementsThe 1C31223G01 provides 1500V galvanic isolation, but you must ensure that the field wiring is properly grounded. Always ground the shield of the field cable at one end (preferably the module end) to ensure effective isolation. Poor grounding can lead to cross-talk between channels, corrupting control signals—we fixed a recurring pump malfunction in a refinery by improving the grounding.
-
Overloading Relay ContactsThe 1C31223G01’s relay contacts are rated for 10A @ 240VAC. Never exceed this rating, as it will damage the relay and cause field device failure. Use a contactor for high-current applications (e.g., motor control) instead of connecting the motor directly to the relay—we once had a client melt a relay contact by connecting a 15A motor directly.
-
Skipping Regular MaintenanceEven though the 1C31223G01 has high reliability, it’s important to inspect the relay contacts annually for wear (e.g., pitting, arcing). Use a multimeter to check the contact resistance (should be <100mΩ) and replace the module if the resistance exceeds this value. We once found a module with a 0.5Ω contact resistance that was causing a 10% variation in product quality—replacing the module fixed the issue.
Technical Deep Dive & Overview
The 1C31223G01 is a 16-channel relay output module designed exclusively for Emerson’s Ovation DCS. It acts as a bridge between the DCS’s digital control signals (generated by the controller) and the relay contacts required by field devices. Here’s how it works:
-
Signal Reception: The Ovation controller sends a digital command (e.g., “open valve 1”) to the 1C31223G01 via the backplane.
-
Relay Activation: The module’s internal circuitry activates the corresponding relay (e.g., relay 1) based on the digital command.
-
Contact Closure: The activated relay closes its contacts, sending a control signal to the field device (e.g., valve positioner).
-
Feedback to DCS: The module sends a status signal back to the Ovation controller indicating whether the relay is active—critical for diagnostic purposes.
What sets the 1C31223G01 apart is its combination of reliability and flexibility. The electromechanical relays offer superior durability compared to solid-state alternatives, with a guaranteed operating life of 100,000 cycles. The 16 channels allow flexible configuration for multiple control points, while the wide temperature range ensures reliable operation in harsh industrial environments.
Another key feature is hot-swapping. The module can be replaced without shutting down the system, which is critical for 24/7 operations like power plants. The galvanic isolation also prevents field-induced noise (e.g., from nearby motors) from corrupting the DCS signals—something we learned the hard way in a paper mill where unisolated outputs caused intermittent valve malfunctions.
Final Notes
The Emerson Ovation 1C31223G01 is a reliable and essential component of the Ovation DCS, enabling high-reliability relay output for industrial automation. Its compatibility with Ovation DCS, high contact rating, and robust design make it ideal for mission-critical applications where reliability is non-negotiable. Whether you’re upgrading a legacy system or building a new one, the 1C31223G01 will provide the accurate, reliable relay output you need—just remember to follow the installation tips to avoid common pitfalls.
