Description
Key Technical Specifications
-
Model Number: 1C31223G01
-
Manufacturer: Emerson (formerly Westinghouse)
-
Number of Channels: 16 independent relay output channels
-
Output Type: Electromechanical relays (Form C contacts: SPDT)
-
Contact Rating: 10A @ 240VAC / 30VDC (resistive load)
-
Operating Voltage: 24VDC (nominal, 20–30VDC range)
-
Power Consumption: 4.56W typical (per module)
-
Isolation: 2200V AC/DC (dielectric isolation between relay contacts and logic)
-
Operating Temperature: –40°C to +70°C (IEC 60068-2 compliant)
-
Storage Temperature: –40°C to +85°C
-
Humidity Range: 5–95% RH (non-condensing)
-
Dimensions: 144 mm × 78 mm × 22 mm (5.67 in × 3.07 in × 0.87 in)
-
Weight: ~300 g (0.66 lbs)
-
Certifications: CE, UL (compliant with industrial safety standards)
WESTINGHOUSE 1C31223G01
Field Application & Problem Solved
In industrial automation—from power plants to chemical refineries—controlling high-power field devices (e.g., motor starters, contactors, solenoids) requires a reliable relay output module that can handle frequent switching and harsh environments. The biggest challenge with legacy modules is finding a solution that balances high current capacity (for heavy loads) with electrical isolation (to protect sensitive DCS logic from field transients). Solid-state outputs often fail here: they can’t handle 10A loads reliably, and their lack of true galvanic isolation leaves the controller vulnerable to voltage spikes.
The 1C31223G01 solves this by combining mechanical relay contacts (for high-current switching) with galvanic isolation (to separate field voltages from the DCS). You’ll find it in:
-
Power generation: Controlling boiler feedwater pump starters, turbine lube oil system contactors, and generator circuit breakers.
-
Chemical/petrochemical: Actuating process valve solenoids (e.g., in distillation columns) and starting large compressors.
-
Manufacturing: Driving conveyor belt motor starters, robotic arm contactors, and assembly line actuators.
Its core value is reliability in mission-critical applications. Unlike solid-state alternatives, mechanical relays in the 1C31223G01 can handle frequent switching (up to 100,000 cycles) without degradation. The isolation also prevents field-induced noise (e.g., from nearby motors) from corrupting DCS signals—something we learned the hard way in a refinery where unisolated outputs caused intermittent valve malfunctions.
Installation & Maintenance Pitfalls (Expert Tips)
1. Overloading Relay Contacts
A common rookie mistake is exceeding the 10A contact rating. Always verify the load current (including inrush current for inductive loads like motors) before connecting devices. For inductive loads, derate the current by 50% (5A max) to prevent contact welding. We once had a client burn out a relay by connecting a 12A motor starter—this caused a 4-hour downtime in a power plant.
2. Ignoring Isolation Requirements
The 1C31223G01’s 2200V isolation is critical for protecting the DCS from field transients. Always verify isolation with a megger (insulation tester) before installation. We once had a batch of modules with faulty isolation that caused ground loops in a chemical plant’s DCS.
3. Poor Wiring Practices
Use twisted-pair cables for field wiring to reduce electromagnetic interference (EMI). Avoid running relay output wires alongside power cables—this is a classic cause of “ghost” trips (relays activating without a command). Also, label each terminal clearly: nothing wastes more time than tracing a wire in a crowded cabinet only to find it’s connected to the wrong channel.
4. Forgetting Hot-Swap Capability
The 1C31223G01 supports hot-swapping (replacing modules without shutting down the system), but you must follow the correct procedure: remove the module from the base, wait 5 seconds (to allow the backplane to discharge), then insert the new one. Skipping the wait can damage the backplane connector—we had a junior engineer yank a module out mid-operation, frying the backplane and requiring an $800 repair.
WESTINGHOUSE 1C31223G01
Technical Deep Dive & Overview

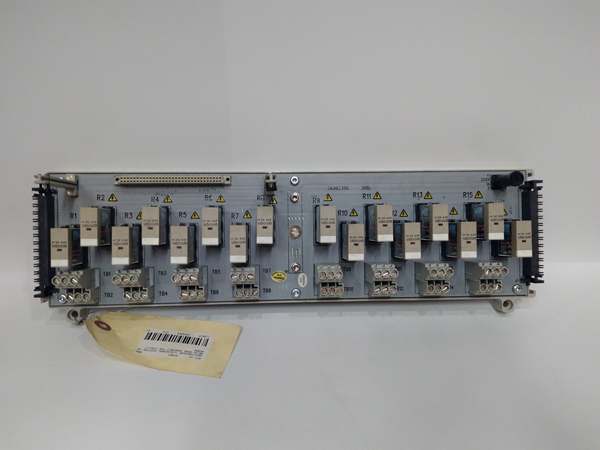

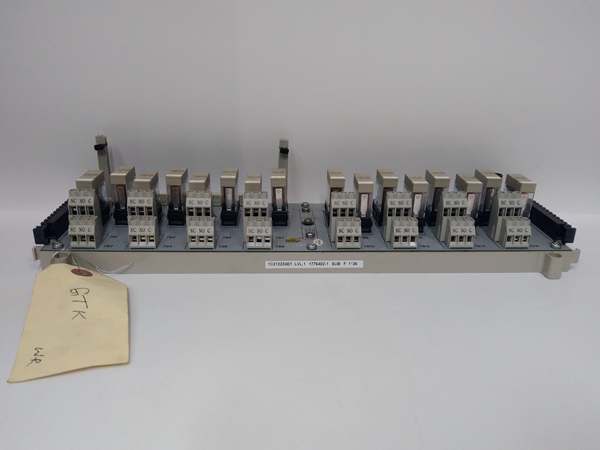

The 1C31223G01 is a 16-channel relay output module designed exclusively for Emerson’s Ovation Distributed Control System (DCS). It acts as a bridge between the DCS’s low-voltage digital signals (24V DC) and the high-voltage/high-current requirements of field devices. Here’s how it works:
-
Signal Reception: The Ovation controller sends a digital command (e.g., “start pump”) to the 1C31223G01 via the backplane.
-
Relay Activation: The module’s internal circuitry energizes the corresponding relay coil (24V DC), closing the Form C contact (SPDT—single pole double throw).
-
Load Switching: The closed contact connects the field device (e.g., motor starter) to the power source (480V AC), triggering the desired action.
-
Feedback: The module sends a status signal back to the DCS (via the backplane) indicating whether the relay is activated—critical for diagnostic purposes.
What sets the 1C31223G01 apart is its rugged design. The silver cadmium oxide contacts resist welding (even with inductive loads), and the module’s housing is made of flame-retardant polycarbonate (UL 94 V-0) to withstand harsh environments. It also supports hot-swapping, which means you can replace a faulty module without shutting down the process—essential for 24/7 operations like power plants.
Another key feature is compatibility. The 1C31223G01 works with all Ovation EMOD (Electronic Module) bases, so you can mix and match relay outputs with other I/O modules (e.g., analog inputs, digital inputs) in the same cabinet. This flexibility reduces inventory costs and simplifies maintenance—something we appreciate in the field, where time is money.
Final Notes
The 1C31223G01 is a workhorse module for industrial automation. Its combination of 16 isolated relay channels, 10A current capacity, and rugged design makes it ideal for mission-critical applications where reliability is non-negotiable. Whether you’re upgrading a legacy system or building a new one, this module will handle the tough jobs—just remember to follow the installation tips to avoid common pitfalls.
