Name: Westinghouse 1C31224G01 | High-Precision Analog Input Card for Ovation DCS - XINYEDA
Brand: Westinghouse

Description

Product Overview

The Emerson Ovation 1C31224G01 is an 8-channel analog input module designed exclusively for Emerson’s Ovation Distributed Control System (DCS). It serves as a critical interface between the Ovation controller and field sensors (e.g., temperature transmitters, pressure gauges, flow meters), enabling accurate signal acquisition for industrial automation applications. As part of the Ovation ecosystem, the 1C31224G01 is widely used in industries where precise process control is essential, such as power generation, chemical processing, and water treatment.

The 1C31224G01’s primary role is to convert analog signals from field sensors to digital data for the Ovation controller, ensuring reliable process monitoring and control. Its robust design (operating temperature range: –40°C to +70°C) and compatibility with Ovation DCS make it suitable for harsh industrial environments.

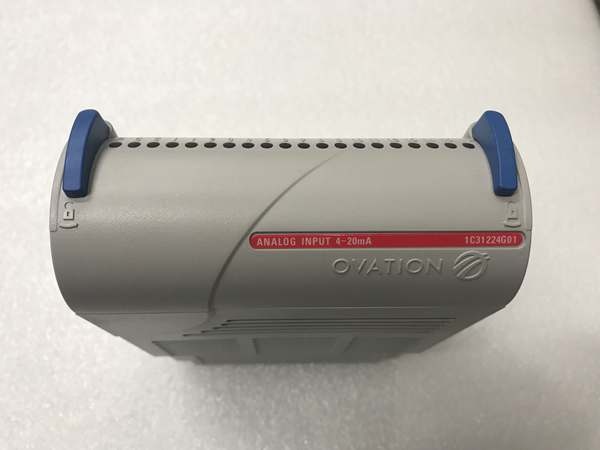

1C31224G01

Key Technical Specifications

The 1C31224G01’s technical specifications are tailored for high-precision analog signal acquisition in industrial settings, with a focus on flexibility, reliability, and compatibility:

Number of Channels: 8 independent analog input channels.
Input Signal Types: Configurable for 4-20mA current loops, 0-10V DC voltage, RTD (Pt100/Pt1000), and thermocouple (J/K/T/E/R/S/B) signals.
Resolution: 16-bit A/D conversion (ensures accurate signal conversion for precise measurements).
Accuracy: ±0.1% of span (typical at 25°C ambient, critical for maintaining process stability).
Isolation: Channel-to-channel and channel-to-backplane isolation (prevents cross-talk and surge damage from field devices).
HART Protocol Support: Yes (enables bidirectional communication with smart field devices, e.g., HART-enabled transmitters).
Update Rate: Configurable from 100ms to 10 seconds per channel (adapts to slow/fast process dynamics).
Power Supply: Powered via Ovation backplane (24V DC ±10% tolerance, typical for Ovation systems).
Power Consumption: 5W maximum (low power design reduces heat dissipation in cabinets).
Operating Temperature: –40°C to +70°C (IEC 60068-2 compliant, suitable for harsh industrial environments).
Storage Temperature: –40°C to +85°C (withstanding extreme storage conditions).
Humidity Range: 0–95% RH (non-condensing, resistant to moisture in humid environments).
Dimensions: ~144 mm × 60 mm × 30 mm (5.67 in × 2.36 in × 1.18 in, compact for cabinet installation).
Weight: ~0.3 kg (0.66 lbs, lightweight for easy handling).

Field Application & Problem Solved

In industrial automation—from power plants to chemical refineries—analog signal acquisition is critical for monitoring process variables like temperature, pressure, and flow. The biggest challenge with legacy analog input modules is finding a solution that balances high precision (for accurate control) with flexibility (to support multiple sensor types). Solid-state modules often fall short: they lack universal input compatibility, forcing users to buy multiple specialized modules, or they can’t handle HART communication, limiting diagnostic capabilities.

The 1C31224G01 solves this by providing 8 isolated analog input channels that support all major industrial signal types(4-20mA, voltage, RTD, thermocouple) in a single module. You’ll find it in:

Power generation: Monitoring boiler feedwater temperature (RTD), turbine inlet pressure (4-20mA), and generator winding temperature (thermocouple).
Chemical/petrochemical: Tracking distillation column temperature (thermocouple), reactor pressure (4-20mA), and pipeline flow (4-20mA).
Manufacturing: Measuring conveyor belt speed (encoder, via 4-20mA), robotic arm position (potentiometer, via 0-10V), and oven temperature (RTD).

Its core value is universality and precision. The 16-bit resolution allows for incremental adjustments (e.g., 0.01% of full scale), which is essential for processes like chemical blending where small changes affect product quality. The HART support also enables predictive maintenance—you can read diagnostic data from smart transmitters (e.g., valve position, stem friction) without interrupting the process, reducing downtime and repair costs.

Installation & Maintenance Pitfalls (Expert Tips)

To ensure optimal performance and reliability, follow these best practices for installing and maintaining the 1C31224G01:

Incorrect Wiring of Current Loops

A common rookie mistake is reversing the polarity of the 4-20mA current loop. Always connect the positive terminal (+) of the module to the positive terminal of the field device (e.g., transmitter) and the negative terminal (–) to the negative terminal. Reversing polarity will cause the device to misinterpret the signal—we once had a client burn out a transmitter because of this error.
Ignoring HART Configuration

The 1C31224G01 supports HART, but you must enable it in the Ovation software. If HART is disabled, you won’t be able to read diagnostic data from smart devices. To enable HART, go to the module’s configuration page in Ovation Explorer and check the “Enable HART” box. We’ve seen technicians skip this step, leading to missed opportunities for predictive maintenance.
Poor Shielding of Field Cables

Analog signals are susceptible to electromagnetic interference (EMI) from nearby power cables or motors. Always use shielded twisted-pair cables for field wiring, and ground the shield at one end (preferably the module end). Un-shielded cables can pick up noise, causing the output signal to fluctuate—we fixed a recurring valve oscillation in a refinery by replacing un-shielded cables with shielded ones.
Skipping Calibration Checks

Even though the 1C31224G01 has high accuracy, it’s important to calibrate it annually using a precision multimeter. Check the output signal (4-20mA) against the module’s display in Ovation Explorer. If the signal deviates by more than ±0.1%, recalibrate the module using Emerson’s calibration tool. We once found a module with a 0.2% error that was causing a 5% variation in product quality—calibration fixed the issue.

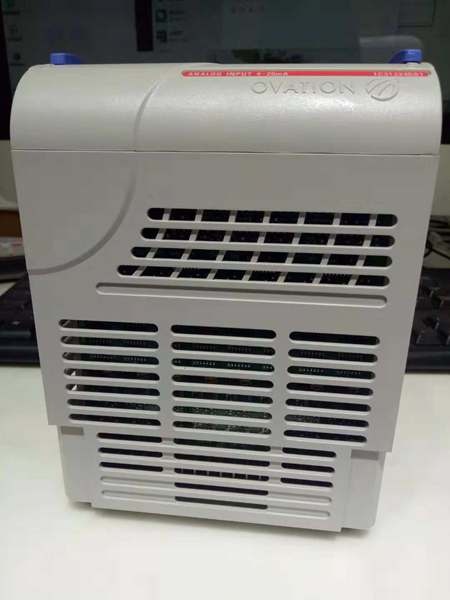

1C31224G01

Technical Deep Dive & Overview

The 1C31224G01 is an 8-channel analog input module designed exclusively for Emerson’s Ovation DCS. It acts as a bridge between the DCS’s digital control signals and the analog signals from field sensors. Here’s how it works:

Signal Reception: The module receives analog signals from field devices (e.g., 4-20mA from a pressure transmitter) via 8 input channels.
Signal Conditioning: The module’s internal circuitry filters out noise (via a low-pass filter) and amplifies the signal (if necessary) to ensure accurate conversion.
Isolation: Galvanic isolation (via optocouplers) separates the field wiring from the DCS backplane, preventing surge damage and cross-talk.
Analog-to-Digital Conversion (ADC): The module’s 16-bit ADC converts the conditioned analog signal to a digital value (e.g., 0–16383 counts) proportional to the process variable.
HART Communication: If the field device is HART-enabled, the module transmits diagnostic data (e.g., transmitter status, calibration date) back to the DCS via the same current loop.
Data Transmission: The digital value is sent to the Ovation controller via the backplane, where it’s used for process control (e.g., adjusting a valve position).

What sets the 1C31224G01 apart is its compatibility and ruggedness. It works with all Ovation DCS controllers and supports all major industrial signal types, eliminating the need for multiple specialized modules. The module’s housing is made of flame-retardant polycarbonate (UL 94 V-0) to withstand harsh environments (e.g., high temperatures in power plants). It also supports hot-swapping, meaning you can replace a faulty module without shutting down the system—critical for 24/7 operations like power plants.

Final Notes

The 1C31224G01 is a workhorse module for industrial automation. Its combination of 8 isolated channels, 16-bit resolution, and universal input support makes it ideal for mission-critical applications where reliability is non-negotiable. Whether you’re upgrading a legacy system or building a new one, this module will deliver the accurate, reliable analog input you need—just remember to follow the installation tips to avoid common pitfalls.
