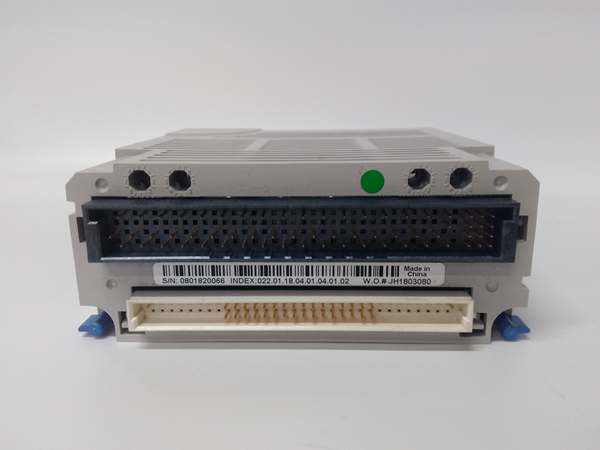

Westinghouse 1C31233G04 | Compact Contact Input Module for Ovation DCS

Description

Product Overview

Key Technical Specifications

Parameter​	Specification​
Number of Channels​	16 independent contact input channels
Input Type​	Contact input (dry contact, NO/NC configurable)
Isolation​	1500V AC channel-to-channel (prevents cross-talk and surge damage)
Response Time​	<3ms (typical, ensures accurate event timing)
Operating Voltage​	24V DC (nominal, 19–30V DC range)
Input Current​	8mA typical per channel
Logic Levels​	Logic 1: 15–30V DC; Logic 0: 0–5V DC
Power Consumption​	5W maximum (low power design reduces heat dissipation)
Operating Temperature​	–20°C to +70°C (IEC 60068-2 compliant, suitable for harsh environments)
Storage Temperature​	–40°C to +85°C (withstanding extreme storage conditions)
Humidity Range​	5–95% RH (non-condensing, resistant to moisture)
Connection Type​	Removable terminal block (easy field wiring)
Installation​	DIN rail or panel mount (flexible for cabinet installation)
Safety Standards​	UL 508, CSA 22.2 (compliant with industrial safety regulations)

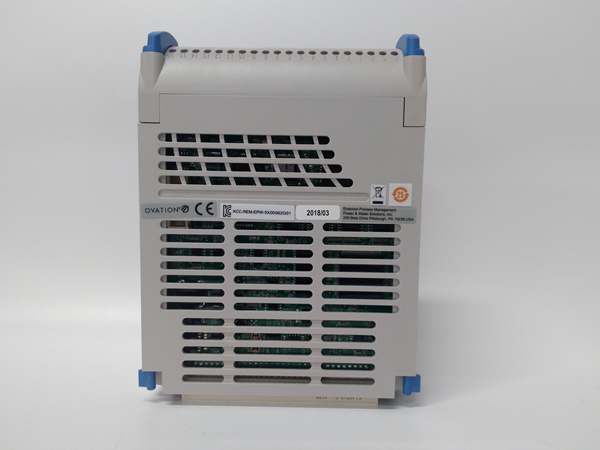

WESTINGHOUSE 5X00062G01

Field Application & Problem Solved

• Fault Diagnosis: Identifying the root cause of process upsets (e.g., a turbine trip) by analyzing the order of events.
• Compliance Reporting: Meeting regulatory requirements (e.g., NERC CIP) for event logging in power plants.
• Process Optimization: Improving efficiency by analyzing event sequences (e.g., reducing cycle times in manufacturing).

1. Providing High-Resolution Timing: The module captures event times with millisecond-level precision, ensuring accurate SOE logs.
2. Supporting High Channel Density: 16 channels in a compact design reduce the number of modules needed, saving cabinet space and installation time.
3. Ensuring Isolation: 1500V AC channel-to-channel isolation prevents cross-talk and surge damage, ensuring reliable operation in high-EMI environments (e.g., power plants).

• Power Generation: Monitoring circuit breaker trips, turbine shutdown signals, and generator fault conditions (e.g., over-speed, over-temperature).
• Chemical Processing: Detecting emergency stop button presses, pressure switch activations, and valve position changes (e.g., in distillation columns).
• Water Treatment: Recording pump start/stop events, filter backwash cycles, and chemical dosing activations.

Installation & Maintenance Pitfalls (Expert Tips)

1. Verify Isolation Requirements:
   • Always use a megger (insulation tester) to verify the module’s isolation (1500V AC) before installation. Poor isolation can lead to cross-talk between channels, corrupting SOE logs.
   • Example: A client once experienced false event triggers due to inadequate isolation—testing with a megger revealed a faulty module.
2. Correct Wiring of Contact Inputs:
   • Ensure dry contacts are wired correctly (NO/NC) to avoid floating inputs. Floating inputs can cause false event triggers—always connect the contact’s common terminal to the module’s COM pin.
   • Tip: Use shielded twisted-pair cables for field wiring to reduce EMI.
3. Configure Event Timing:
   • Set the module’s event timing (millisecond-level) according to the application’s requirements. For critical events (e.g., turbine trips), use the highest precision setting.
   • Common Mistake: Using a low-precision setting can lead to inaccurate SOE logs, making fault diagnosis difficult.
4. Regular Diagnostic Checks:
   • Use the Ovation software to monitor the module’s status (e.g., channel health, power supply) regularly. Address any faults (e.g., overcurrent, open circuit) immediately to prevent downtime.
   • Case Study: A refinery avoided a process upset by detecting a faulty channel using the module’s diagnostic tools.

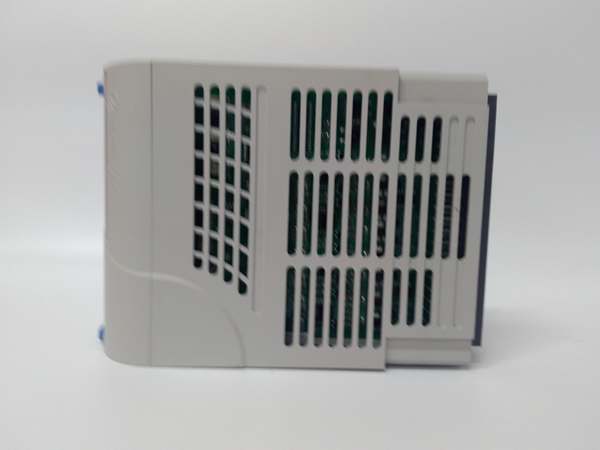

     WESTINGHOUSE 5X00062G01

Technical Deep Dive & Overview

1. Ovation Controller: Located in the central control room, it processes SOE data from the 1C31233G04 and displays it in the HMI (Human-Machine Interface).
2. 1C31233G04 Module: Installed in a remote I/O node or control cabinet, it receives contact input signals from field devices.
3. Field Devices: Limit switches, pushbuttons, and relay contacts connected to the 1C31233G04.

• Signal Reception: The 1C31233G04 receives contact input signals (e.g., a limit switch closing) from field devices.
• Signal Conditioning: The module filters out noise (via a low-pass filter) and amplifies the signal to ensure accurate detection.
• Event Timing: A built-in real-time clock (RTC) assigns a millisecond-level timestamp to each event (e.g., “valve 1 opened at 10:00:00.123”).
• Data Transmission: The module sends the event data (timestamp, channel number, event type) to the Ovation controller via the Ovation network.
• SOE Logging: The Ovation controller stores the event data in a log file, which can be accessed for fault diagnosis or compliance reporting.

• Compatibility: Works with all Ovation DCS controllers and field devices.
• Ruggedness: The module’s housing is made of flame-retardant polycarbonate (UL 94 V-0) to withstand harsh environments (e.g., high temperatures in power plants).
• Ease of Use: The removable terminal block and DIN rail mounting simplify installation and maintenance.
