Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1C31234G01 |
| Manufacturer | Westinghouse |
| Product Category | Compact Contact Input Module |
| Input Channels | 16 channels |
| Input Voltage Range | 85-265 VAC |
| Onboard Power Supply | 48V DC |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Communication Interface | RS-232 |
| Accuracy | ±1% |
| Frequency Response Range | 20Hz to 20kHz |
| Load Capacity | Up to 1000W |
| Dimensions | Compact design suitable for DIN rail mounting |

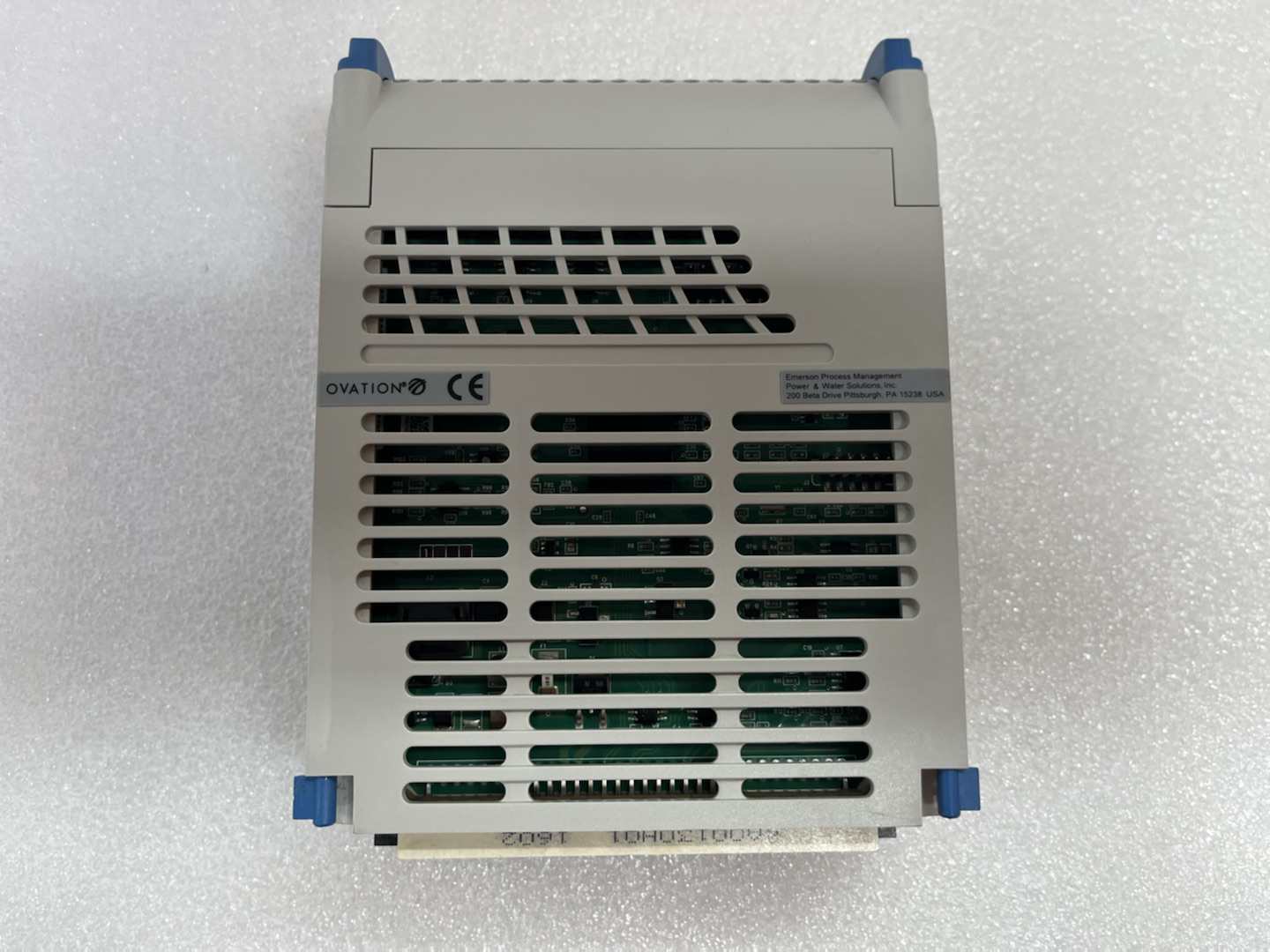

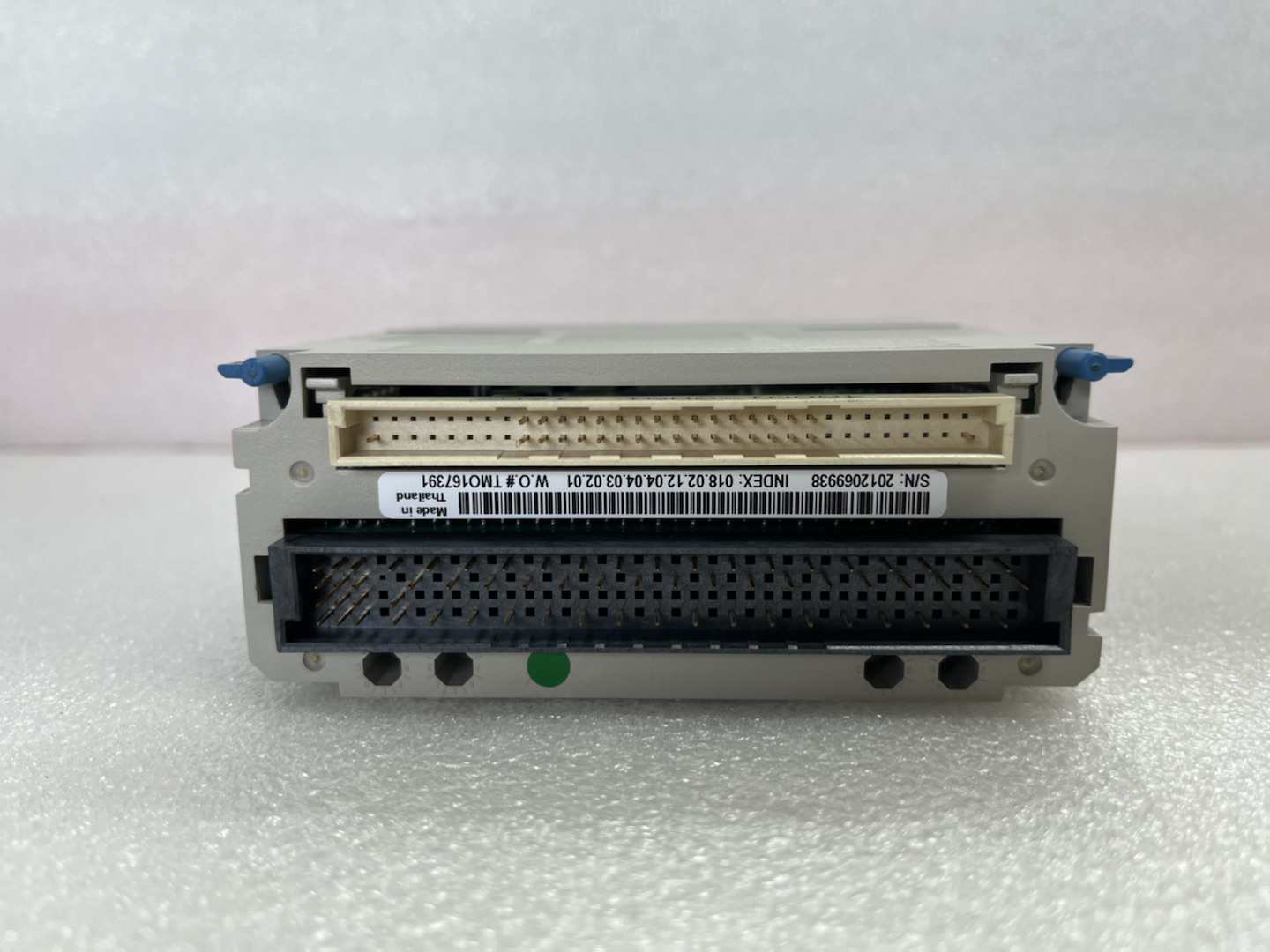

WESTINGHOUSE 1C31234G01
Product Introduction
The Westinghouse 1C31234G01 is a compact contact input module designed for industrial automation applications, particularly for integration into distributed control systems (DCS) and PLC-based systems. This module offers 16 input channels with an onboard 48V auxiliary power supply, making it highly efficient and versatile. It is designed to handle a wide range of input voltages (85-265 VAC), ensuring reliable operation in varying power grid conditions. The 1C31234G01 provides precise signal processing with ±1% accuracy and a frequency response range of 20Hz to 20kHz, making it suitable for complex industrial applications. Its compact design and DIN rail mounting capability ensure easy integration into existing control systems.
Core Advantages and Technical Highlights
Wide Input Voltage Range: The Westinghouse 1C31234G01 can accept input voltages from 85 to 265 VAC, making it highly adaptable to different power supply conditions and ensuring stable operation in environments with voltage fluctuations.
High Accuracy and Precision: With an accuracy of ±1%, the 1C31234G01 ensures precise signal processing and reliable control in industrial applications. This level of accuracy is critical for maintaining system stability and efficiency.
Onboard Power Supply: The module features an onboard 48V auxiliary power supply, eliminating the need for external power sources and simplifying system design. This integrated power supply enhances the module’s versatility and ease of use.
Robust Design and Reliability: The 1C31234G01 is designed to operate within a temperature range of -10°C to 60°C, making it suitable for harsh industrial environments. Its compact design and DIN rail mounting capability further enhance its durability and ease of installation.
Advanced Signal Processing: The module supports a frequency response range of 20Hz to 20kHz, enabling it to process signals of different frequencies efficiently. This capability is essential for applications requiring high-speed signal processing and real-time control.
Load Capacity: The 1C31234G01 can drive loads up to 1000W, providing robust power support for medium and large power devices. This high load capacity makes it suitable for a wide range of industrial applications.
Self-Diagnostic Function: The module includes a self-diagnostic function that detects internal circuit faults, overheating, and overloads, providing early warnings to users through indicator lights and remote communication interfaces. This feature enhances system reliability and reduces downtime.

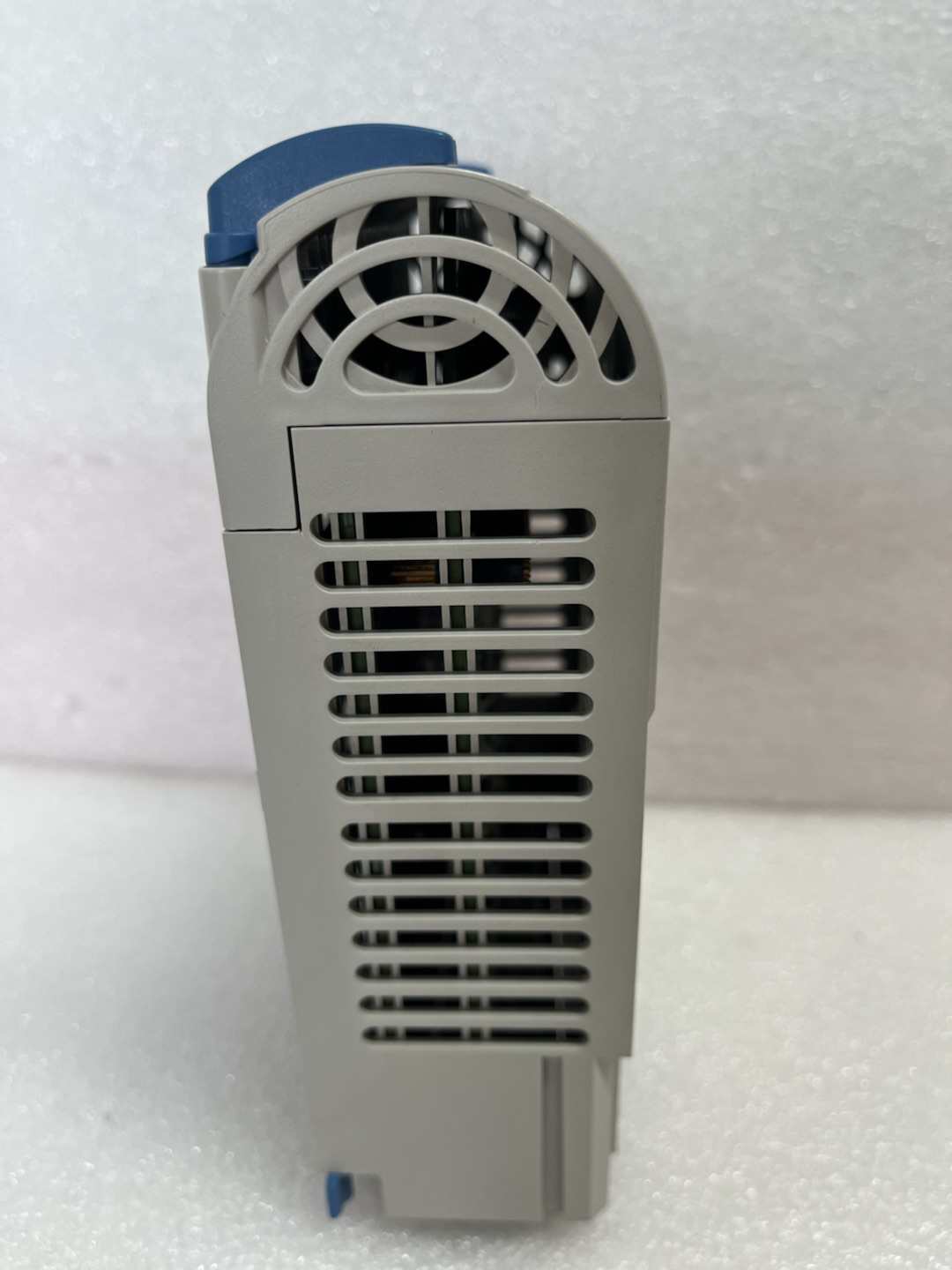

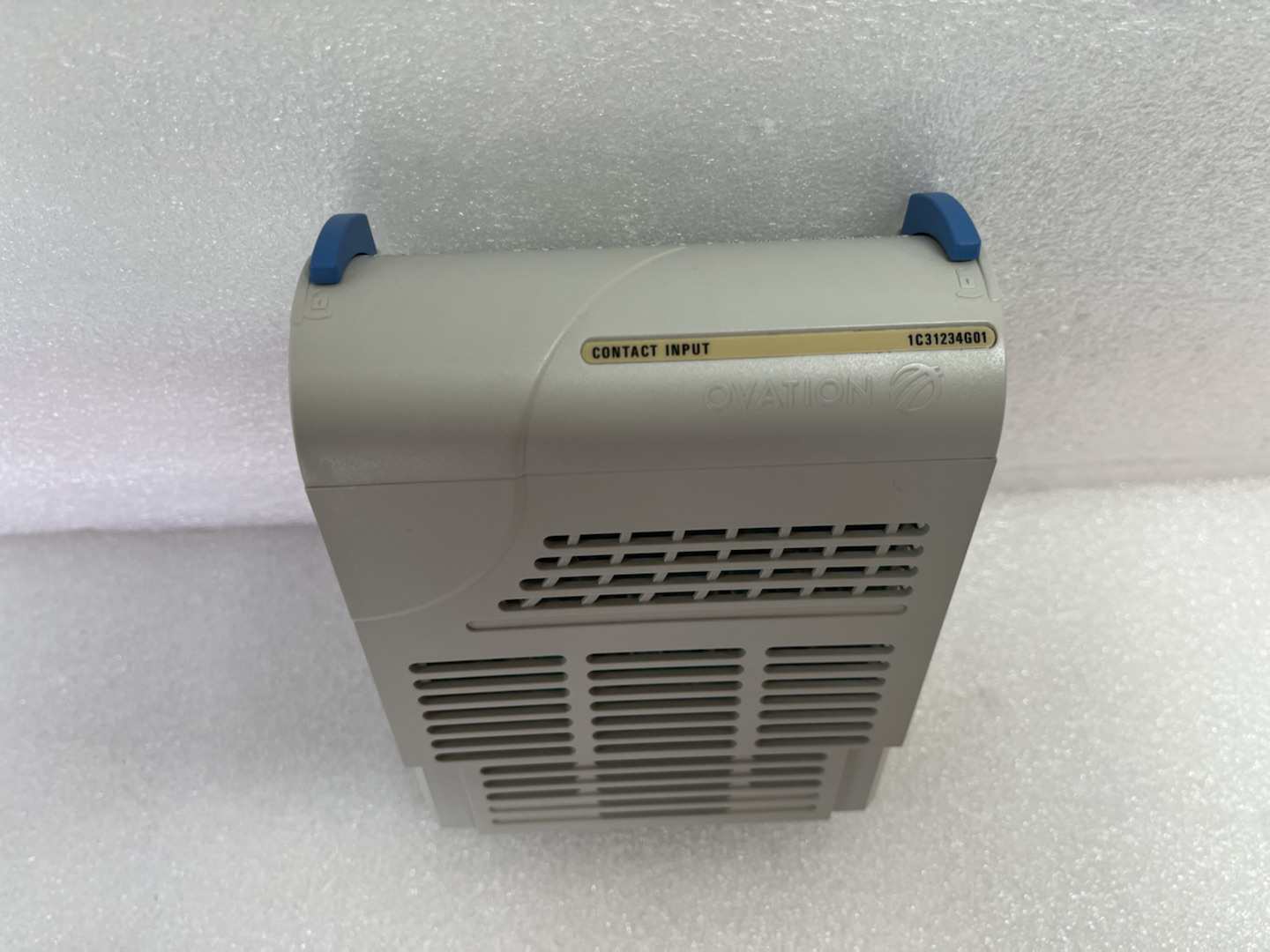

WESTINGHOUSE 1C31234G01
Typical Application Scenarios
The Westinghouse 1C31234G01 is widely used in industrial automation systems, particularly in power generation, water treatment, and manufacturing facilities. In power plants, it monitors switchgear and relay states, ensuring reliable control of critical equipment. In water treatment plants, the module processes signals from various sensors, providing real-time monitoring and control of water quality parameters. Its compact design and onboard power supply make it an ideal choice for applications requiring efficient data acquisition and precise control. The 1C31234G01 is also used in manufacturing facilities to monitor and control production processes, enhancing operational efficiency and reducing downtime.
Related Model Recommendations
-
1C31234G02: A related model with similar features, offering enhanced functionality and compatibility with advanced control systems.
-
1C31238H01: A digital input module with high precision and stability, suitable for applications requiring high-frequency signal processing.
-
1C31234G03: An upgraded version of the 1C31234G01, offering improved performance and additional features such as enhanced signal filtering and noise reduction.
-
1C31234G04: A variant with extended temperature range and higher load capacity, suitable for harsh industrial environments.
-
1C31234G05: A compact contact input module with additional communication interfaces, providing enhanced connectivity options for modern DCS systems.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the Westinghouse 1C31234G01, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 1C31234G01 for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The Westinghouse 1C31234G01 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company guarantees the quality of the product, providing a refund or replacement for any manufacturing defects within the warranty period. We offer 24/7 technical support to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 1C31234G01 will deliver reliable performance for years to come.
