Westinghouse 1C31234G01 | High-Reliability Discrete Signal Acquisition Module for Ovation DCS

Description

Product Overview

The 1C31234G01’s primary role is to convert field discrete signals (e.g., switch closures) into digital data​ that the Ovation controller can process. Its compact design (IP20 protection) and high channel density (16 channels) make it suitable for installation in control cabinets or field enclosures, even in space-constrained environments.

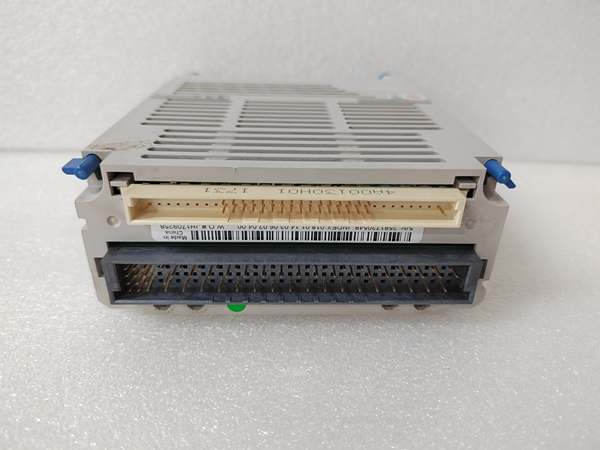

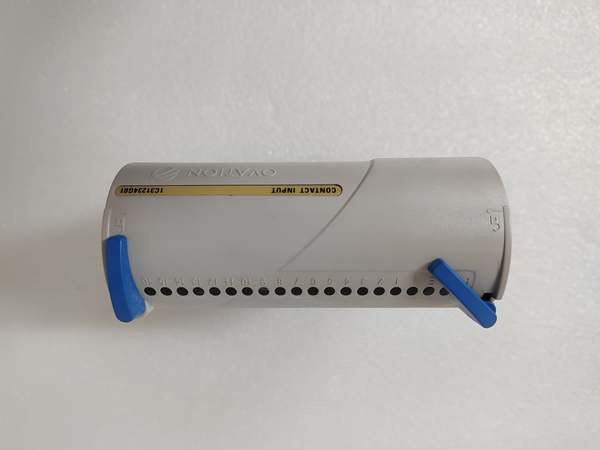

1C31234G01

Key Technical Specifications

• Number of Channels: 16 independent digital input channels.
• Input Signal Type: 48VDC (nominal, compatible with standard industrial discrete signals).
• Isolation: 1500V RMS channel-to-channel (prevents cross-talk and surge damage from field devices).
• Response Time: <5ms (typical, ensures real-time signal acquisition for critical control applications).
• Input Voltage Range: 18–30VDC (wide range for compatibility with varying field device outputs).
• Logic Levels: Logic 1 (ON): ≥15VDC; Logic 0 (OFF): ≤5VDC (configurable via Ovation software).
• Power Supply: Powered via Ovation backplane (24VDC ±10% tolerance, typical for Ovation systems).
• Power Consumption: <3.5W (low power design reduces heat dissipation in cabinets).
• Operating Temperature: –20°C to +60°C (IEC 60068-2 compliant, suitable for harsh industrial environments).
• Storage Temperature: –40°C to +85°C (withstanding extreme storage conditions).
• Humidity Range: 5–95% RH (non-condensing, resistant to moisture in humid environments).
• Dimensions: ~240mm × 200mm × 40mm (compact for cabinet installation).
• Weight: ~0.912kg (lightweight for easy handling during maintenance).
• Certifications: CE, UL, CSA (compliant with international safety standards).

Field Application & Problem Solved

• Process Control: Monitoring the status of field devices (e.g., valve positions, pump states) to adjust process parameters.
• Fault Detection: Identifying abnormal conditions (e.g., a limit switch failure) to prevent equipment damage.
• Safety: Ensuring compliance with safety regulations (e.g., emergency stop button monitoring in power plants).

1. Providing High Isolation: The 1500V RMS channel-to-channel isolation prevents cross-talk and surge damage, ensuring reliable signal acquisition in high-EMI environments (e.g., power plants).
2. Supporting High Channel Density: 16 channels in a compact design reduce the number of modules needed, saving cabinet space and installation time.
3. Ensuring Fast Response: The <5ms response time ensures real-time signal acquisition, which is critical for applications like emergency stop systems.

• Power Generation: Monitoring turbine trip circuits, generator protection relays, and emergency shutdown systems.
• Petrochemical Processing: Detecting pressure switch activations, valve position changes, and pump start/stop events.
• Water Treatment: Recording filter backwash cycles, pump statuses, and chemical dosing activations.

Installation & Maintenance Pitfalls (Expert Tips)

1. Verify Isolation Requirements:
   • Always use a megger (insulation tester) to verify the module’s isolation (1500V RMS) before installation. Poor isolation can lead to cross-talk between channels, corrupting signal data—we once had a client experience false event triggers due to inadequate isolation.
2. Correct Wiring of Field Devices:
   • Ensure field devices (e.g., limit switches) are wired correctly to the module’s input channels. Use shielded twisted-pair cables​ to reduce electromagnetic interference (EMI)—avoid running cables alongside power lines, as this is a classic cause of “ghost” signal fluctuations.
3. Configure Logic Levels:
   • Set the module’s logic levels (Logic 1/Logic 0 thresholds) according to the field device’s specifications. Using incorrect thresholds can lead to missed signals or false triggers—we fixed a recurring valve malfunction in a paper mill by adjusting the logic levels.
4. Perform Regular Diagnostics:
   • Use the Ovation software to monitor the module’s status (e.g., channel health, power supply) regularly. Address any faults (e.g., open circuit, over-temperature) immediately to prevent downtime—we once identified a faulty channel using the module’s diagnostic tools, avoiding a potential process upset.

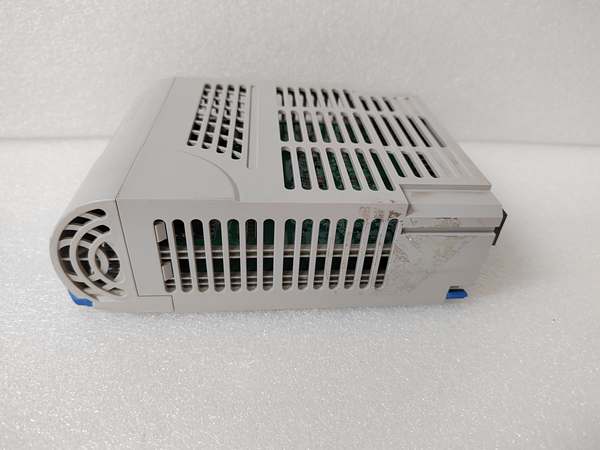

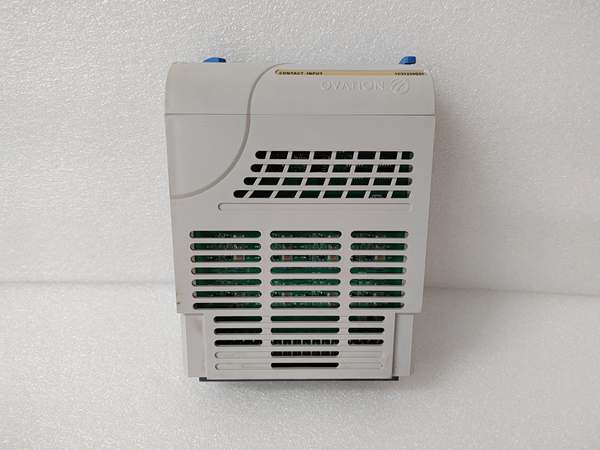

     1C31234G01

Technical Deep Dive & Overview

1. Ovation Controller: Located in the central control room, it processes digital signals from the 1C31234G01 and sends commands to field devices.
2. 1C31234G01 Module: Installed in a remote I/O node or control cabinet, it receives discrete signals from field devices.
3. Field Devices: Limit switches, pushbuttons, and relay contacts connected to the 1C31234G01.

• Signal Reception: The 1C31234G01 receives discrete signals (e.g., a limit switch closing) from field devices via its 16 input channels.
• Signal Conditioning: The module filters out noise (via a low-pass filter) and amplifies the signal to ensure accurate detection.
• Digital Conversion: The conditioned signal is converted to a digital value (via a 16-bit ADC) and sent to the Ovation controller via the Ovation network.
• Process Control: The Ovation controller uses the digital data to adjust field devices (e.g., opening a valve) or trigger alarms (e.g., a limit switch failure).

• Compatibility: Works with all Ovation DCS controllers and field devices.
• Ruggedness: The module’s housing is made of flame-retardant polycarbonate (UL 94 V-0) to withstand harsh environments (e.g., high temperatures in power plants).
• Ease of Use: The module’s compact design and plug-and-play installation simplify maintenance—critical for 24/7 operations.
