Description
Key Technical Specifications
-

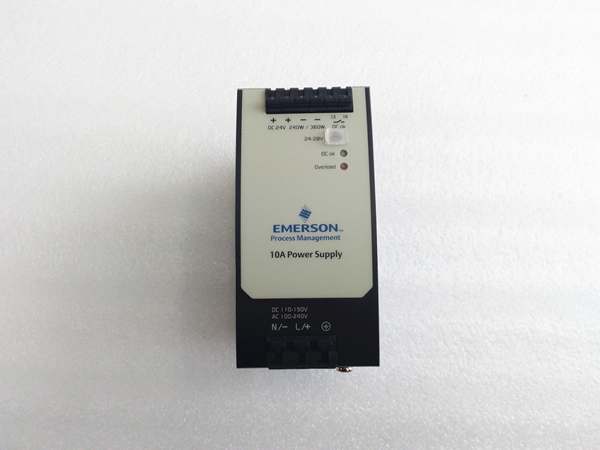

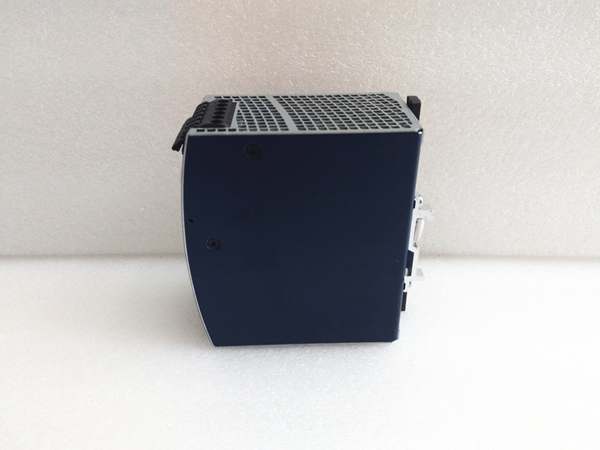

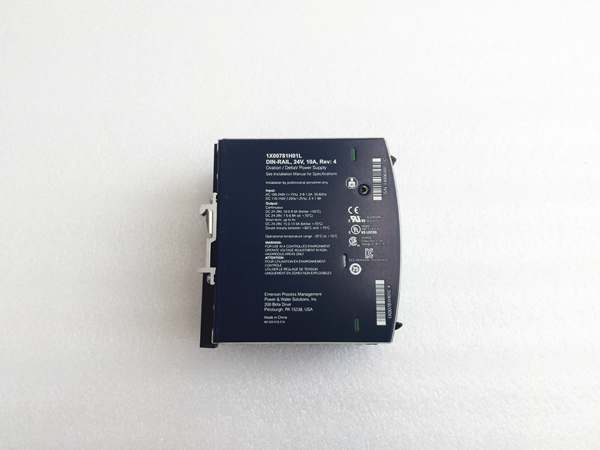

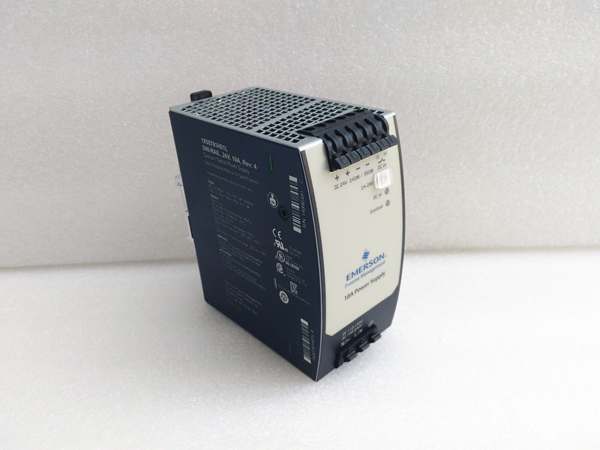

Model Number: 1X00781H01L
-
Manufacturer: Emerson (formerly Westinghouse)
-
Output Voltage: 24VDC (nominal, adjustable via internal trimpot)
-
Output Current: 10A continuous (240W max)
-
Input Voltage: 85–264VAC (single-phase) / 90–375VDC (wide range for industrial compatibility)
-
Efficiency: >90% (typical, reduces heat dissipation in cabinets)
-
Isolation: Galvanic isolation between input and output (protects downstream components from voltage spikes)
-
Operating Temperature: –40°C to +70°C (IEC 60068-2 compliant, suitable for harsh industrial environments)
-
Storage Temperature: –40°C to +85°C
-
Humidity Range: 0–95% RH (non-condensing)
-
Mounting: DIN rail (EN 60715 compliant) for secure installation in control cabinets
-
Dimensions: ~200mm × 150mm × 50mm (compact form factor for cabinet installation)
-
Weight: ~0.8 kg (1.76 lbs)
-
Certifications: CE, UL (compliant with international safety standards)
1X00781H01L
Field Application & Problem Solved
In industrial automation—from power plants to chemical refineries—stable DC power is the backbone of Distributed Control Systems (DCS). The biggest challenge with legacy power supplies is finding a solution that balances high power density (to minimize cabinet space) with reliability (to withstand harsh environments). Cheap or poorly designed power supplies often fail due to voltage fluctuations, overheating, or lack of isolation—leading to system downtime and equipment damage.
The 1X00781H01L solves this by providing 24VDC/10A output with galvanic isolation and high efficiency. You’ll find it in:
-
Power generation: Powering Ovation controllers (e.g., OCR 400) and I/O modules for boiler temperature/pressure monitoring and turbine control.
-
Chemical/petrochemical: Supplying power to valve positioners, flow meters, and other field devices in hazardous locations.
-
Water treatment: Providing stable power to pump controllers, level sensors, and filtration systems.
Its core value is reliability in mission-critical applications. The galvanic isolation prevents voltage spikes from the input (e.g., from nearby motors) from damaging downstream components—something we learned the hard way in a refinery where a non-isolated power supply caused a cascade failure of I/O modules. The high efficiency also reduces heat dissipation, which is critical for 24/7 operations like power plants, where overheating can cause power supply failures.
Installation & Maintenance Pitfalls (Expert Tips)
1. Ignoring Input Voltage Range
A common rookie mistake is connecting the power supply to a voltage outside the 85–264VAC range. This can damage the input rectifier or capacitors. Always verify the input voltage with a multimeter before plugging in—we once had a client fry a power supply by connecting it to a 277VAC circuit.
2. Poor Ventilation
The 1X00781H01L generates heat during operation—if the cabinet is not well-ventilated, the power supply can overheat and shut down. Always leave at least 10 cm (4 inches) of clearance around the power supply for airflow. We fixed a recurring power supply failure in a paper mill by adding a fan to the cabinet.
3. Overloading Outputs
The 10A output is rated for continuous load—don’t exceed this limit. Overloading can cause the power supply to shut down or damage the output transistors. Always calculate the total load of all devices connected to the power supply—if it exceeds 10A, use a separate power supply. We once had a client overload the power supply by 20%—this caused the power supply to fail, leading to a 6-hour downtime in a power plant.
4. Skipping Isolation Testing
Before connecting the power supply to downstream components, verify input-to-output isolation with a megger (insulation tester). The 1X00781H01L’s isolation is rated for 1500V AC—if you get a lower reading, the power supply may be damaged. We once had a batch of power supplies with faulty isolation that caused ground loops in a chemical plant’s DCS.
1X00781H01L
Technical Deep Dive & Overview
The 1X00781H01L is a 24VDC power supply module designed exclusively for Emerson’s Ovation DCS. It acts as a bridge between the AC mains (85–264VAC) and the DC-powered components of the Ovation system (controllers, I/O modules, field devices). Here’s how it works:
-
Input Rectification: The AC input is converted to DC using a bridge rectifier.
-
Power Factor Correction (PFC): The PFC circuit improves efficiency by reducing harmonic distortion.
-
DC-DC Conversion: The DC voltage is converted to 24VDC using a switching regulator.
-
Isolation: Galvanic isolation (via transformers) separates the input from the output, protecting downstream components from voltage spikes.
-
Monitoring: The power supply includes built-in diagnostics (e.g., overvoltage, overcurrent protection) to alert users of faults.
What sets the 1X00781H01L apart is its compatibility and ruggedness. It works with all Ovation controllers and I/O modules, so you can use it in new or existing systems. The DIN-rail mounting also makes it easy to install and replace—critical for 24/7 operations where downtime is costly.
Final Notes
The 1X00781H01L is a workhorse power supply for Ovation DCS systems. Its combination of 24VDC/10A output, galvanic isolation, and rugged design makes it ideal for mission-critical applications where reliability is non-negotiable. Whether you’re upgrading a legacy system or building a new one, this power supply will provide the stable DC power you need—just remember to follow the installation tips to avoid common pitfalls.
