Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | WESTINGHOUSE 3A99200G01 |
| Manufacturer | Westinghouse |
| Product Category | Industrial Control Module |
| Operating Voltage | 85 – 264 V-AC |
| Input Current | 8.0 A RMS |
| Output Voltage | 24 V-DC |
| Output Current | 8 A |
| Power Rating | 300 W |
| Communication Interface | RS485 |
| Operating Temperature Range | -40°C to +85°C |
| Protection Class | IP67 |
| Dimensions | 175mm (W) x 133mm (H) x 120mm (D) |
| Weight | 2.1 kg |
| Certifications | CE, RoHS, ISO 9001 |
WESTINGHOUSE 5X00241G01
Product Introduction

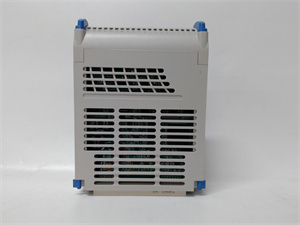

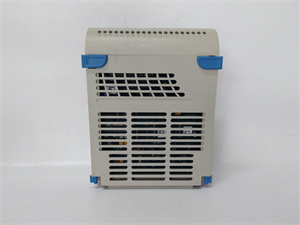

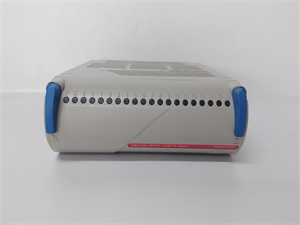

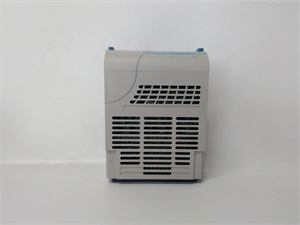

The WESTINGHOUSE 3A99200G01 is a high-performance analog input module (AIM) designed for the OVATION™ distributed control system (DCS). It is part of the OVATION 3.x/4.x hardware platform and is designed for precise control and monitoring applications in industrial environments。
Core Advantages and Technical Highlights
High Precision and Reliability
The WESTINGHOUSE 3A99200G01 features high accuracy (±0.02%FS at 25°C, ±0.05%FS over the full temperature range) and supports multiple signal types, including voltage, current, thermocouples, and RTDs。
Robust Design
This module is designed for harsh industrial environments, with an operating temperature range of -40°C to +85°C and an IP67 protection rating。
Versatile Communication Capabilities
The WESTINGHOUSE 3A99200G01 supports the OVATION Native protocol and can be extended with Modbus TCP and OPC DA/UA for seamless integration with third-party systems。
User-Friendly and Flexible
The module includes a user-friendly interface and clear documentation, making installation and maintenance straightforward。
WESTINGHOUSE 5X00070G03
Typical Application Scenarios
The WESTINGHOUSE 3A99200G01 is widely used in:
-
Power Generation: For turbine monitoring (TSI), generator excitation, and boiler combustion control。
-
Process Control: For monitoring and controlling pumps, valves, and mixers in chemical and petroleum industries。
-
Energy Management: For monitoring and control of renewable energy projects。
Related Model Recommendations
-
EMERSON Ovation Systems: The 3A99200G01 is specifically designed for seamless integration with Emerson Ovation control systems。
-
ABB ACS580 Drive: A high-performance drive that can be paired with the WESTINGHOUSE 3A99200G01 for comprehensive motor control。
-
Siemens SINAMICS S120: A powerful drive system that enhances the performance and stability of automation systems when used with the WESTINGHOUSE 3A99200G01。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input signal lines and communication cables according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Use dedicated debugging software to check and update module parameters as needed. Keep the module clean and free from dust to prevent overheating and ensure efficient operation。
Service and Guarantee Commitment
The WESTINGHOUSE 3A99200G01 is backed by a comprehensive warranty and after-sales service commitment. Westinghouse guarantees the quality of the product and provides a 12-month warranty period from the date of purchase. The company offers 24/7 technical support to ensure any issues are resolved promptly。
