Description
Product Overview
The Emerson 4D33924G01 is a Remote ROP (Remote Output Processor) Board designed exclusively for Emerson’s Ovation Distributed Control System (DCS). It serves as a critical interface between Ovation DCS controllers and remote I/O modules, enabling seamless signal conversion and transmission for industrial automation applications. As a key component of the Ovation ecosystem, the 4D33924G01 is widely used in industries where remote monitoring and control of field devices (e.g., sensors, actuators) are essential, such as power generation, petrochemical, and water treatment.
The 4D33924G01 is part of Emerson’s 4D series control modules, known for their ruggedness and compatibility with Ovation systems. It integrates advanced signal processing technology to ensure reliable data exchange between the central controller and remote field devices, making it an indispensable part of modern industrial control systems.

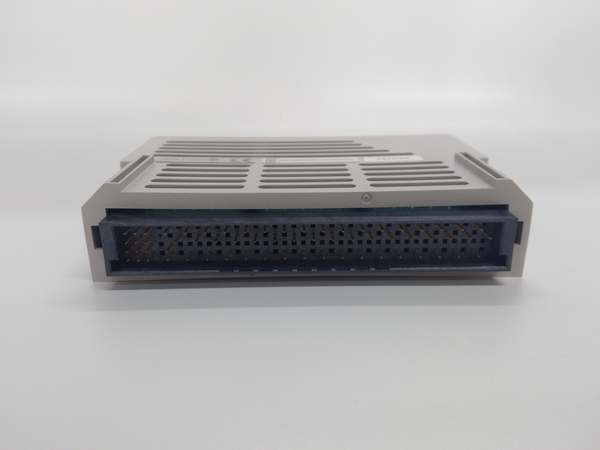

WESTINGHOUSE 1C31227G01
Key Technical Specifications
The 4D33924G01’s technical specifications are tailored for industrial automation applications requiring reliable remote signal processing:
-
Model Number: 4D33924G01
-
Manufacturer: Emerson (formerly Westinghouse)
-
Product Type: Remote ROP Board
-
Operating Voltage: 24V DC (nominal, compatible with Ovation system power requirements)
-
Input/Output Signals: Converts analog/digital signals from remote I/O modules to digital data for the Ovation controller (and vice versa).
-
Communication Protocol: Supports Ovation’s proprietary communication protocol for seamless integration with the DCS.
-
Isolation: Galvanic isolation (1500V AC/DC) to protect the DCS from field transients and noise.
-
Operating Temperature: –20°C to +70°C (IEC 60068-2 compliant, suitable for harsh industrial environments).
-
Storage Temperature: –40°C to +85°C (withstanding extreme storage conditions).
-
Humidity Range: 5–95% RH (non-condensing, resistant to moisture in humid environments).
-
Dimensions: ~144 mm × 60 mm × 30 mm (5.67 in × 2.36 in × 1.18 in, compact for cabinet installation).
-
Weight: ~0.3 kg (0.66 lbs, lightweight for easy handling during maintenance).
-
Certifications: CE (Compliant with European Union safety standards).
Field Application & Problem Solved
The 4D33924G01 is primarily used in distributed control systems (DCS) where field devices (e.g., temperature sensors, pressure transmitters, control valves) are located far from the central DCS controller. Traditional centralized I/O systems require extensive cabling, which is costly and prone to noise interference. The 4D33924G01 solves this by:
-
Enabling Remote I/O Connectivity: It allows field devices to be connected to local I/O modules at remote sites, reducing the need for long copper cables (which are prone to noise and signal loss).
-
Improving Noise Immunity: The board’s galvanic isolation and signal conditioning circuits eliminate electromagnetic interference (EMI) from nearby power lines or motors, ensuring reliable data transmission.
-
Simplifying System Expansion: Adding new remote I/O nodes is straightforward—simply connect the 4D33924G01 to the existing Ovation network, reducing installation time and cost.
Typical Applications:
-
Power Generation: Monitoring turbine temperature, boiler pressure, and generator vibration at remote power plants.
-
Petrochemical Processing: Extending I/O to remote tank farms or loading racks, where centralized I/O is impractical.
-
Water Treatment: Connecting remote sensors (e.g., pH meters, flow meters) to the DCS for real-time process control.

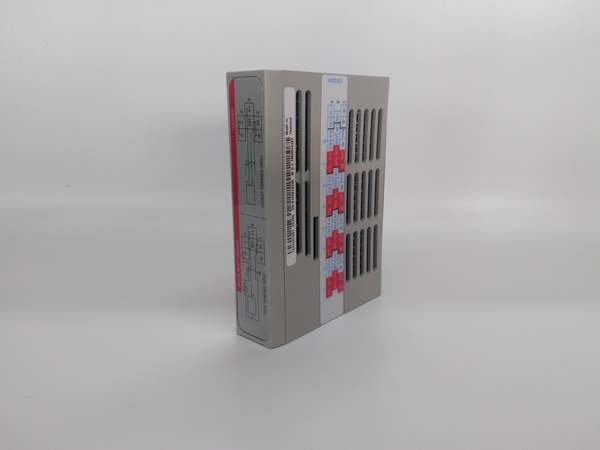

WESTINGHOUSE 1C31227G01
Installation & Maintenance Pitfalls (Expert Tips)
1. Incorrect Wiring of Remote I/O Modules
A common mistake is reversing the polarity of the 24V DC power supply or signal cables. Always verify the wiring diagram in the Ovation documentation before connecting the 4D33924G01 to remote I/O modules. Reversing polarity will cause the module to misinterpret signals—we once had a client burn out a remote I/O module because of this error.
2. Ignoring Isolation Requirements
The 4D33924G01’s galvanic isolation is critical for protecting the DCS from field transients. Always verify isolation with a megger (insulation tester) before installation. We once had a batch of modules with faulty isolation that caused ground loops in a chemical plant’s DCS.
3. Poor Cable Management
Long cables can pick up electromagnetic interference (EMI), degrading signal quality. Use shielded twisted-pair cables for field connections and keep them away from power lines. We improved signal accuracy in a steel mill by replacing unshielded cables with shielded ones.
4. Forgetting to Update Firmware
Emerson regularly releases firmware updates for the 4D33924G01 to improve performance and fix bugs. Always check for updates via the Ovation software and install them promptly. We once resolved a message-processing error by updating the module’s firmware to the latest version.
Technical Deep Dive & Overview
The 4D33924G01 operates as part of the Ovation Remote I/O (RIO) system, which consists of:
-
Ovation Controllers: Located in the central control room, these controllers send commands to remote nodes.
-
Remote ROP Boards (4D33924G01): Installed at remote sites, these boards receive commands from the controllers and forward them to local I/O modules.
-
Local I/O Modules: Connected to field devices, these modules collect data (e.g., temperature, pressure) and send it back to the remote ROP board.
How It Works:
-
The Ovation controller sends a command (e.g., “read temperature from sensor 1”) to the 4D33924G01 via the Ovation network.
-
The 4D33924G01 processes the command and forwards it to the local I/O module.
-
The local I/O module reads the sensor data and sends a response back to the 4D33924G01.
-
The 4D33924G01 converts the response to a digital signal and sends it to the Ovation controller via the Ovation network.
Key Advantages:
-
High Reliability: The board’s galvanic isolation and signal conditioning ensure reliable data transmission in harsh environments.
-
Scalability: The 4D33924G01 supports multiple local I/O modules, allowing for easy expansion of remote I/O nodes.
-
Hot-Swappable: The board can be replaced without shutting down the system, minimizing downtime.
Final Notes
The Emerson 4D33924G01 is a reliable and essential component of the Ovation DCS, enabling remote I/O connectivity for industrial automation. Its robust design, compatibility with Ovation systems, and ability to withstand harsh industrial environments make it ideal for mission-critical applications where reliability is non-negotiable. Whether you’re upgrading a legacy system or building a new one, the 4D33924G01 will provide the stable remote signal processing you need—just remember to follow the installation tips to avoid common pitfalls.
