Description
Key Technical Specifications
The 5X00062G01 is an 8-channel HART analog output module designed exclusively for Emerson’s Ovation Distributed Control System (DCS). Its technical specifications are tailored for high-precision process control in industrial environments, with a focus on flexibility, reliability, and compatibility:
-
Number of Channels: 8 independent analog output channels.
-
Output Signal: 4-20mA current loop (standard for industrial process control).
-
Resolution: 14-bit digital-to-analog conversion (DAC), ensuring precise signal output for fine-tuned control.
-
Accuracy: ±0.1% of full scale (typical at 25°C ambient), critical for maintaining process stability.
-
HART Protocol Support: Yes (enables bidirectional communication with smart field devices, e.g., HART-enabled valves).
-
Isolation: 1000 VAC/VDC channel-to-logic isolation (protects DCS from field transients).
-
Operating Temperature: 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
-
Storage Temperature: -40°C to 85°C (-40°F to 185°F).
-
Humidity Range: 0–95% RH (non-condensing).
-
Power Supply: 24V DC (main power: 1.2W typical, 2.5W max; auxiliary power: 6W typical, 7.2W max).
-
Output Loading: Maximum 700 ohms (minimum 230 ohms), compatible with most field devices.
-
Dimensions: ~241 mm × 244 mm × 242 mm (9.5 in × 9.6 in × 9.5 in), compact for cabinet installation.
-
Weight: ~0.7 kg (1.54 lbs), lightweight for easy handling.

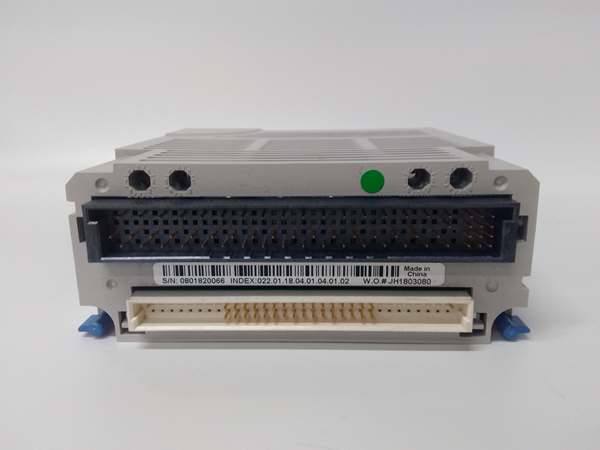

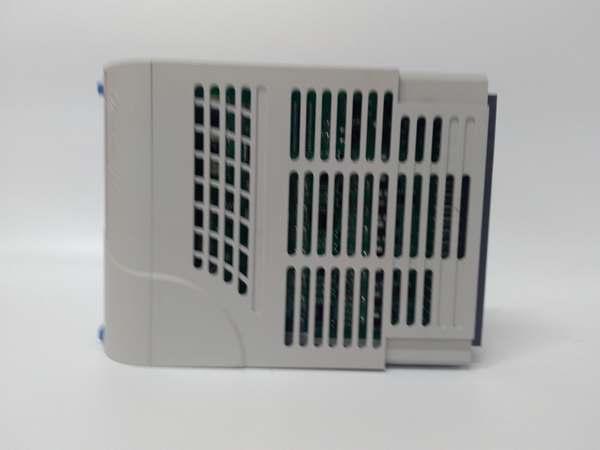

WESTINGHOUSE 5X00062G01
Field Application & Problem Solved
In industrial automation—from power plants to chemical refineries—control systems rely on analog output signals to regulate field devices like control valves, variable-speed pumps, and motor drives. The biggest challenge with legacy systems is finding an analog output module that delivers high precision (for accurate process control) and reliability (to withstand harsh environments). Solid-state modules often fall short: they lack the resolution for fine-tuned adjustments, and their susceptibility to noise can corrupt signals—leading to process inefficiencies or equipment damage.
The 5X00062G01 solves this by combining 14-bit resolution (for precise 4-20mA output) with HART protocol support (for smart device communication). You’ll find it in:
-
Power generation: Controlling boiler feedwater valves, turbine governor systems, and generator excitation circuits.
-
Chemical/petrochemical: Regulating process valves (e.g., control valves in distillation columns) and variable-speed compressors.
-
Manufacturing: Adjusting conveyor belt speeds, robotic arm movements, and assembly line equipment.
Its core value is precision and intelligence in mission-critical applications. The 14-bit resolution allows for incremental adjustments (e.g., 0.01% of full scale), which is essential for processes like chemical blending where small changes affect product quality. The HART support also enables predictive maintenance—you can read diagnostic data from smart valves (e.g., valve position, stem friction) without interrupting the process.
Installation & Maintenance Pitfalls (Expert Tips)
1. Incorrect Wiring of Current Loops
A common rookie mistake is reversing the polarity of the 4-20mA current loop. Always connect the positive terminal (+) of the module to the positive terminal of the field device (e.g., valve positioner) and the negative terminal (–) to the negative terminal. Reversing polarity will cause the device to misinterpret the signal—we once had a client burn out a valve positioner because of this error.
2. Ignoring HART Configuration
The 5X00062G01 supports HART, but you must enable it in the Ovation software. If HART is disabled, you won’t be able to read diagnostic data from smart devices. To enable HART, go to the module’s configuration page in Ovation Explorer and check the “Enable HART” box. We’ve seen technicians skip this step, leading to missed opportunities for predictive maintenance.
3. Poor Shielding of Field Cables
Analog signals are susceptible to electromagnetic interference (EMI) from nearby power cables or motors. Always use shielded twisted-pair cables for field wiring, and ground the shield at one end (preferably the module end). Un-shielded cables can pick up noise, causing the output signal to fluctuate—we fixed a recurring valve oscillation in a refinery by replacing un-shielded cables with shielded ones.
4. Skipping Calibration Checks
Even though the 5X00062G01 has high accuracy, it’s important to calibrate it annually using a precision multimeter. Check the output signal (4-20mA) against the module’s display in Ovation Explorer. If the signal deviates by more than ±0.1%, recalibrate the module using Emerson’s calibration tool. We once found a module with a 0.3% error that was causing a 5% variation in product quality—calibration fixed the issue.

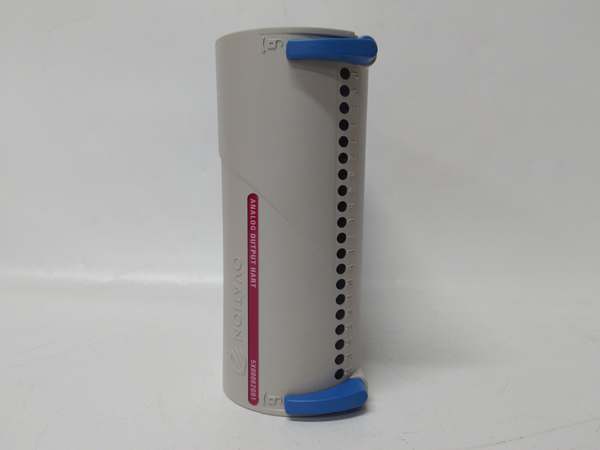

WESTINGHOUSE 5X00062G01
Technical Deep Dive & Overview
The 5X00062G01 is an 8-channel HART analog output module designed exclusively for Emerson’s Ovation DCS. It acts as a bridge between the DCS’s digital control signals (generated by the controller) and the analog signals required by field devices. Here’s how it works:
-
Signal Reception: The Ovation controller sends a digital command (e.g., “open valve 50%”) to the 5X00062G01 via the backplane.
-
Digital-to-Analog Conversion (DAC): The module’s internal 14-bit DAC converts the digital command into a proportional 4-20mA current signal.
-
HART Communication: If the field device is HART-enabled, the module transmits diagnostic data (e.g., valve position, temperature) back to the DCS via the same current loop.
-
Output to Field Device: The 4-20mA signal is sent to the field device (e.g., valve positioner), which adjusts its position accordingly.
-
Feedback to DCS: The module sends a status signal back to the DCS indicating whether the output is active—critical for diagnostic purposes.
What sets the 5X00062G01 apart is its combination of precision and intelligence. The 14-bit DAC ensures that the output signal is accurate to within 0.01% of full scale, which is essential for processes like chemical blending where small changes can affect product quality. The HART support also allows you to monitor the health of field devices—for example, you can detect a sticking valve before it causes a process upset.
Another key feature is hot-swapping. The module can be replaced without shutting down the system, which is critical for 24/7 operations like power plants. The galvanic isolation also prevents field-induced noise (e.g., from nearby motors) from corrupting the DCS signals—something we learned the hard way in a paper mill where unisolated outputs caused intermittent valve malfunctions.
Final Notes
The 5X00062G01 is a workhorse module for industrial automation. Its combination of high precision, HART support, and rugged design makes it ideal for mission-critical applications where reliability is non-negotiable. Whether you’re upgrading a legacy system or building a new one, this module will deliver the accurate, reliable analog output you need—just remember to follow the installation tips to avoid common pitfalls.
