Westinghouse 5X00070G01 | 14-Bit Resolution Analog Input Module for Ovation DCS

Description

Product Overview

The 5X00070G01’s primary role is to ensure accurate and reliable signal conversion​ while maintaining signal integrity in noisy industrial environments. Its 8 isolated channels, 14-bit resolution, and fast sampling rate make it ideal for applications requiring high-precision data acquisition, such as turbine control, chemical dosing, and environmental monitoring.

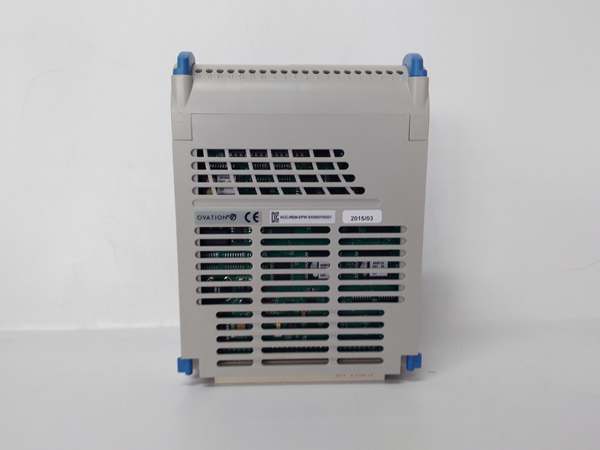

5X00070G01

Key Technical Specifications

• Number of Channels: 8 independent analog input channels (configurable for 4-20 mA current loops).
• Input Signal Type: 4-20 mA current loop (standard for industrial field instruments).
• Resolution: 14-bit A/D conversion (ensures accurate signal conversion for precise measurements).
• Accuracy: ±0.1% of full scale (typical at 25°C ambient, critical for maintaining process stability).
• Sampling Rate: 50 or 60 samples per second (adapts to regional power frequencies, ensuring real-time data acquisition).
• Isolation: Channel-to-channel isolation (1000 V AC/DC) and channel-to-logic isolation (1000 V AC/DC) (prevents cross-talk and surge damage from field devices).
• Operating Temperature: –40°C to +70°C (IEC 60068-2 compliant, suitable for extreme industrial environments).
• Storage Temperature: –40°C to +85°C (withstanding extreme storage conditions).
• Humidity Range: 0–95% RH (non-condensing, resistant to moisture in humid environments).
• Dimensions: ~122 mm × 50 mm × 165 mm (4.8 in × 2.0 in × 6.5 in, compact for cabinet installation).
• Weight: ~0.56 kg (1.23 lbs, lightweight for easy handling during maintenance).
• Certifications: CE Mark certified (compliant with European industrial safety standards).

Field Application & Problem Solved

1. Providing High Precision: The 14-bit resolution ensures that the input signal is accurate to within 0.01% of full scale, which is essential for processes like chemical blending where small changes affect product quality.
2. Ensuring Signal Integrity: The 8 isolated channels prevent cross-talk and surge damage, ensuring reliable signal transmission even in high-noise environments (e.g., power plants).
3. Enabling Real-Time Monitoring: The 50/60 samples per second sampling rate ensures that data is acquired in real-time, which is critical for time-sensitive processes like turbine speed regulation.

• Power Generation: Monitoring turbine vibration, temperature, and fuel flow using 4-20 mA sensors. The 14-bit resolution allows for incremental adjustments (e.g., 0.01% of full scale), which is essential for maintaining optimal turbine efficiency.
• Chemical Processing: Tracking distillation column temperature and reactor pressure using 4-20 mA transmitters. The isolated channels prevent noise from nearby motors from corrupting the signal, ensuring accurate process control.
• Water Treatment: Measuring pH levels and flow rates using 4-20 mA sensors. The high precision ensures consistent water quality, while the fast sampling rate enables real-time adjustments to chemical dosing.

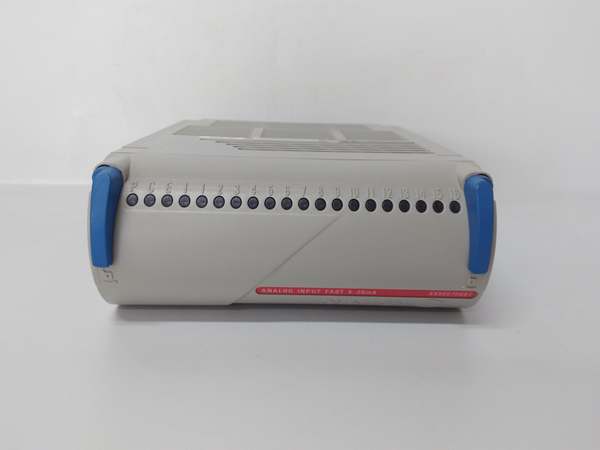

  5X00070G01

Installation & Maintenance Pitfalls (Expert Tips)

1. Verify Input Signal Compatibility:
   • Always confirm that the field instrument’s output signal is 4-20 mA. Using an incompatible signal (e.g., 0-10 V) will result in inaccurate measurements—we once had a client experience a 10% error in temperature readings because of a mismatched signal type.
2. Ensure Proper Isolation:
   • The 5X00070G01’s channel-to-channel isolation is critical for preventing cross-talk. Use shielded twisted-pair cables for field wiring and ground the shield at one end (preferably the module end) to ensure effective isolation. Poor grounding can lead to signal corruption—we fixed a recurring pressure reading error in a refinery by improving the grounding.
3. Test Sampling Rate Configuration:
   • Set the sampling rate (50 or 60 samples per second) according to the regional power frequency (50 Hz for Europe, 60 Hz for North America). Using the wrong sampling rate can lead to aliasing (false signals)—we once saw a turbine control loop oscillate because of an incorrect sampling rate setting.
4. Perform Regular Calibration:
   • Even though the 5X00070G01 has high accuracy, calibrate it annually using a precision multimeter. Check the input signal (4-20 mA) against the module’s display in Ovation Explorer. If the signal deviates by more than ±0.1%, recalibrate the module using Emerson’s calibration tool. We once found a module with a 0.2% error that was causing a 5% variation in product quality—calibration fixed the issue.

Technical Deep Dive & Overview

1. Signal Reception: The module receives 4-20 mA current signals from field instruments via 8 input channels.
2. Signal Conditioning: The module’s internal circuitry filters out noise (via a low-pass filter) and amplifies the signal (if necessary) to ensure accurate conversion.
3. Isolation: Galvanic isolation (via optocouplers) separates the field wiring from the DCS backplane, preventing surge damage and cross-talk.
4. Analog-to-Digital Conversion (ADC): The module’s 14-bit ADC converts the conditioned analog signal to a digital value (e.g., 0–16383 counts) proportional to the process variable.
5. Data Transmission: The digital value is sent to the Ovation controller via the Ovation network, where it’s used for process control (e.g., adjusting a valve position).
