Description
Key Technical Specifications
-
Model Number: 5X00070G01
-
Manufacturer: Emerson (formerly Westinghouse)
-
Input Channels: 8 (individually isolated)
-
Input Ranges: 4–20mA (current), ±1V/±10V (voltage)
-
Resolution: 14 bits (including polarity)
-
Accuracy: ±0.10% of full scale (±½ LSB @ 99.7% confidence, 25°C)
-
Sampling Rate: 50/60 samples per second (configurable)
-
Isolation: 1000V AC/DC (channel-to-channel, channel-to-logic)
-
Input Impedance: 3.3MΩ (voltage), 200MΩ (current)
-
Operating Temperature: –20°C to +70°C (IEC 60068-2 compliant)
-
Storage Temperature: –40°C to +85°C
-
Humidity Range: 0–95% RH (non-condensing)
-
Mounting: DIN rail (EN 60715 compliant)
-
Dimensions: ~122mm × 50mm × 165mm (compact form factor)
-
Weight: ~0.56 kg (1.23 lbs)
-
Certifications: CE, UL (compliant with international safety standards)

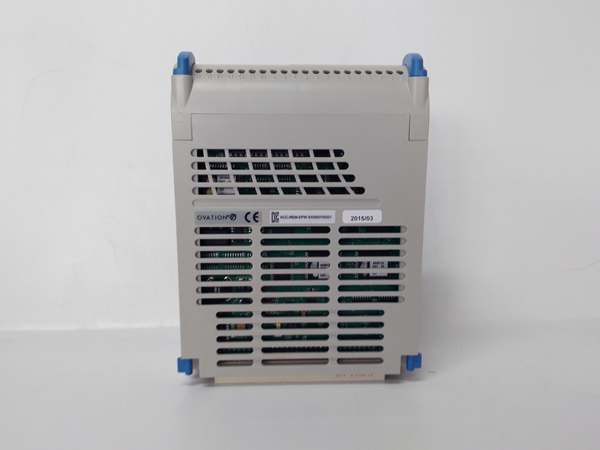

5X00070G01
Field Application & Problem Solved
In industrial automation—from power plants to water treatment facilities—accurate analog signal acquisition is critical for maintaining process stability. The biggest challenge with legacy analog input modules is signal degradation (due to noise or lack of isolation) and low resolution (leading to inaccurate data). Cheap or poorly designed modules often fail to handle 4–20mA signals reliably, causing incorrect readings and system downtime.
The 5X00070G01 solves this by providing 8-channel isolated inputs with 14-bit resolution. You’ll find it in:
-
Power generation: Capturing temperature/pressure signals from turbine sensors for real-time control.
-
Water treatment: Converting pH/flow meter outputs to digital data for filtration system optimization.
-
Petrochemical: Monitoring pressure/level sensors in pipelines to prevent overflows or leaks.
Its core value is signal integrity. The 1000V isolation prevents ground loops and noise from corrupting signals—something we learned the hard way in a chemical plant where a non-isolated module caused a cascade failure of the DCS. The 14-bit resolution also ensures precise data for critical processes like turbine control, where even small errors can lead to inefficiencies.
Installation & Maintenance Pitfalls (Expert Tips)
1. Ignoring Isolation Requirements
A common mistake is skipping isolation testing before installation. The 5X00070G01’s isolation is rated for 1000V AC/DC—use a megger to verify this before connecting to field devices. We once had a client skip this step, resulting in a ground loop that damaged the module and downstream controllers.
2. Overloading Input Channels
Each channel is rated for 4–20mA—don’t exceed this range. Overloading can damage the input circuitry. Always check the output of field instruments (e.g., transmitters) with a multimeter before connecting to the module. We fixed a recurring module failure in a paper mill by replacing a transmitter that was outputting 25mA.
3. Poor Cable Management
Long cables can pick up electromagnetic interference (EMI), degrading signal quality. Use shielded cables for field connections and keep them away from power lines. We improved signal accuracy in a steel mill by replacing unshielded cables with shielded ones.
4. Skipping Self-Calibration
The module supports self-calibration initiated by the Ovation controller—don’t skip this step during commissioning. Self-calibration ensures the module maintains accuracy over time. We once had a module drift out of spec because the client skipped calibration, leading to incorrect temperature readings in a power plant.
Technical Deep Dive & Overview
The 5X00070G01 is a high-speed analog input module designed exclusively for Emerson’s Ovation DCS. It acts as an interface between field instruments (transmitters, sensors) and the DCS, converting analog signals to digital data for processing. Here’s how it works:
-
Signal Reception: The module receives 4–20mA current signals from field instruments via 8 isolated channels.
-
Filtering: Built-in filters remove noise from the signals, ensuring clean data.
-
A/D Conversion: The 14-bit analog-to-digital converter converts the filtered signal to a digital value.
-
Isolation: Galvanic isolation (via optocouplers) separates the input from the DCS, protecting against voltage spikes.
-
Data Transmission: The digital data is sent to the Ovation controller via the Ovation Serial I/O Bus for real-time processing.
What sets the 5X00070G01 apart is its compatibility and ruggedness. It works with all Ovation controllers and I/O modules, so you can use it in new or existing systems. The DIN-rail mounting also makes it easy to install and replace—critical for 24/7 operations where downtime is costly.
5X00070G01
Final Notes
The 5X00070G01 is a reliable analog input module for Ovation DCS systems. Its combination of 8-channel isolation, 14-bit resolution, and rugged design makes it ideal for mission-critical applications where accurate signal acquisition is non-negotiable. Whether you’re upgrading a legacy system or building a new one, this module will provide the stable analog input you need—just remember to follow the installation tips to avoid common pitfalls.
