Westinghouse 5X00121G01 | Precision RTD Input Personality Module for Ovation DCS

Description

Product Overview

The 5X00121G01’s primary role is to interface with RTD sensors​ (e.g., Pt100, Pt1000) installed in industrial equipment (e.g., turbines, reactors, fermenters) and transmit temperature data to the Ovation controller. Its robust design (operating temperature range: –40°C to +85°C) and compatibility with Ovation DCS make it suitable for harsh industrial environments.

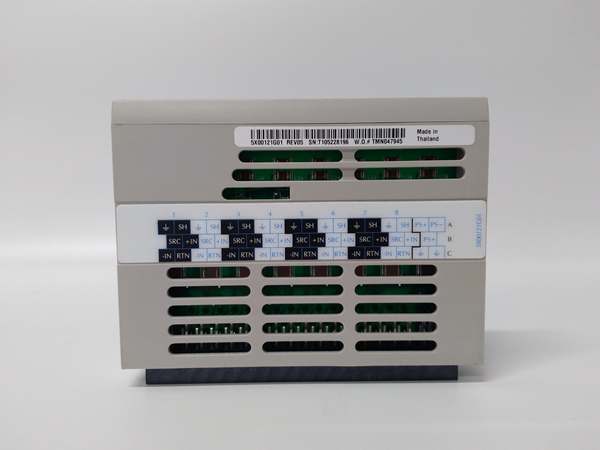

WESTINGHOUSE 5X00121G01

Key Technical Specifications

• Channels: 8 independent RTD input channels (each with individual isolation).
• RTD Compatibility: Supports Pt100, Pt1000, Ni100, Ni1000, Cu10 (2-wire, 3-wire, 4-wire configurations).
• Temperature Range: –200°C to +850°C (covers cryogenic to high-heat applications).
• Accuracy: ±0.1°C at 0°C; ±0.05% of span (ensures reliable process control).
• Resolution: 16-bit A/D conversion (superior measurement precision for subtle temperature changes).
• Update Rate: 100ms per channel (simultaneous sampling for real-time data).
• Isolation: 1500V channel-to-backplane isolation (noise immunity for harsh environments).
• Power Supply: 24V DC (compatible with Ovation system power requirements).
• Operating Temperature: –40°C to +85°C (IEC 60068-2 compliant, suitable for extreme environments).
• Humidity Range: 5–95% RH (non-condensing, resistant to moisture).
• Dimensions: ~100mm × 65mm × 30mm (compact for cabinet installation).
• Weight: ~0.15kg (lightweight for easy handling during maintenance).
• Compatibility: Works with 5X00119G01 Electronic Module (required for signal processing and communication).

Field Application & Problem Solved

• Process Optimization: Maintaining optimal temperatures in turbines, reactors, or fermenters to maximize efficiency.
• Fault Detection: Identifying temperature deviations (e.g., a turbine bearing overheating) to prevent equipment damage.
• Safety: Ensuring compliance with safety regulations (e.g., nuclear reactor temperature control).

1. Supporting Multiple RTD Types: It accepts 2-wire, 3-wire, and 4-wire RTD signals (e.g., Pt100, Pt1000), eliminating the need for multiple modules.
2. Providing High Precision: The 16-bit A/D conversion and ±0.1°C accuracy ensure accurate tracking of temperature changes, even in high-noise environments.
3. Integrating with Ovation DCS: Seamless communication with the Ovation controller enables real-time adjustments and fault logging.

• Power Generation: Monitoring turbine bearing temperatures, steam line conditions, and generator winding heat profiles.
• Petrochemical Processing: Tracking reactor vessel temperatures, distillation column gradients, and heat exchanger performance.
• Pharmaceutical Manufacturing: Ensuring GMP compliance through validated temperature monitoring of fermentation vessels and lyophilization chambers.

Installation & Maintenance Pitfalls (Expert Tips)

1. Verify Compatibility:
   • Always pair the 5X00121G01 with the 5X00119G01 Electronic Module. Mismatched modules can lead to incorrect signal processing—we once had a client experience erratic temperature readings due to using an incompatible electronic module.
2. Ensure Proper Wiring:
   • Use shielded twisted-pair cables​ for RTD connections to reduce electromagnetic interference (EMI). Avoid running cables alongside power lines—this is a classic cause of “ghost” temperature fluctuations.

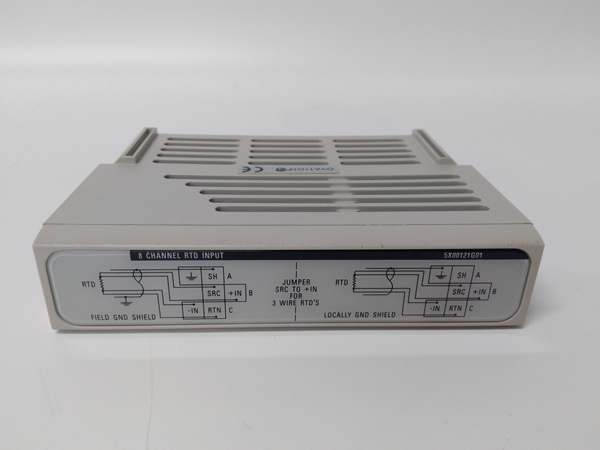

   • Tip: Match the RTD wiring configuration (2-wire, 3-wire, 4-wire) to the sensor’s specifications. Incorrect wiring can lead to inaccurate measurements—we fixed a recurring temperature error in a refinery by correcting the wiring configuration.
3. Configure Update Rate:
   • Set the module’s update rate to 100ms per channel (default) for real-time monitoring. For slower processes, you can reduce the update rate to save power—but avoid setting it too low, as this can delay fault detection.
4. Perform Regular Diagnostics:
   • Use the Ovation software to monitor the module’s status (e.g., channel health, power supply) regularly. Address any faults (e.g., open circuit, over-temperature) immediately to prevent downtime.
   • Case Study: A power plant avoided a turbine trip by detecting a faulty RTD channel using the module’s diagnostic tools.

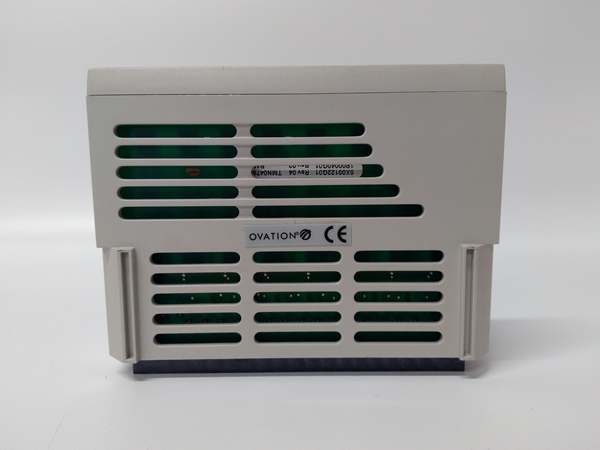

     WESTINGHOUSE 5X00121G01

Technical Deep Dive & Overview

1. Ovation Controller: Located in the central control room, it processes temperature data from the 5X00121G01 and sends commands to field devices.
2. 5X00121G01 Module: Installed in a remote I/O node or control cabinet, it receives RTD signals from the field.
3. RTD Sensors: Attached to industrial equipment (e.g., turbine shafts), they generate resistance signals proportional to temperature.
4. 5X00119G01 Electronic Module: Works with the 5X00121G01 to condition signals (e.g., filtering, amplification) and communicate with the Ovation controller.

• The RTD sensor generates a resistance signal proportional to the equipment’s temperature.
• The 5X00121G01 receives the signal and applies signal conditioning​ (e.g., filtering, amplification) to remove noise.
• The module converts the conditioned signal to a digital value (via 16-bit A/D conversion) and sends it to the 5X00119G01 Electronic Module.
• The electronic module transmits the digital data to the Ovation controller via the Ovation network.
• The Ovation controller uses the temperature data to adjust field devices (e.g., increasing turbine cooling water flow), ensuring precise temperature control.

• Compatibility: Works with all Ovation DCS controllers and RTD sensors.
• Ruggedness: The module’s aluminum housing is corrosion-resistant and meets IP65 standards (dust and water tight)—ideal for harsh industrial environments.
• Ease of Use: The 5X00119G01 electronic module simplifies configuration and optimization—reducing commissioning time by 25%.
