Westinghouse 5X00167G01 | High-Precision 4-20mA Analog Output Card for Ovation DCS

Description

Product Overview

The 5X00167G01’s primary role is to enable accurate control of field devices​ (e.g., control valves, variable-speed pumps) by providing stable 4-20mA analog signals. Its HART support allows for bidirectional communication with smart actuators, enabling real-time diagnostics (e.g., valve position, stem friction) without interrupting the process. This combination of precision and intelligence makes it a cornerstone of modern industrial automation systems.

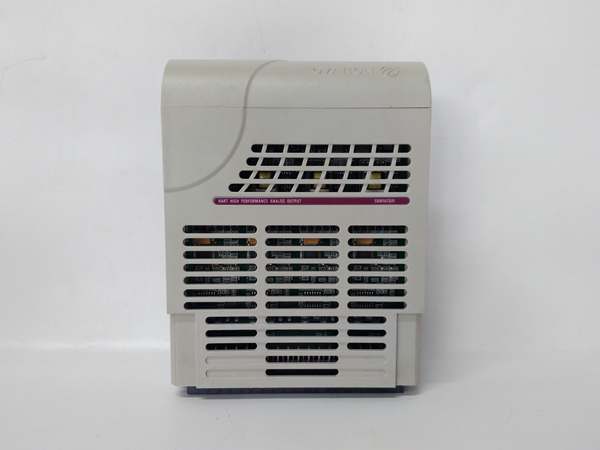

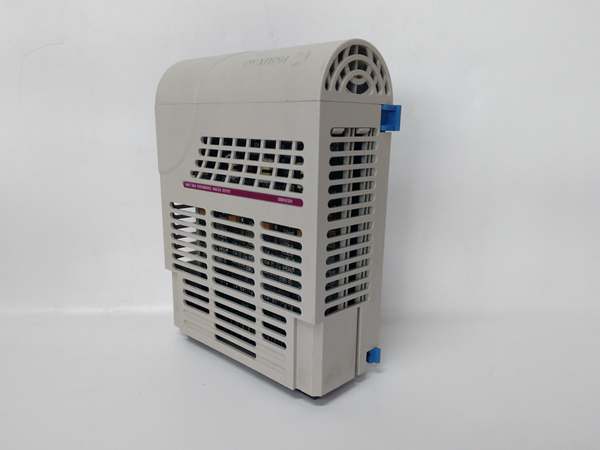

5X00167G01

Key Technical Specifications

• Number of Channels: 8 independent analog output channels (configurable for 4-20mA current loops).
• Output Signal: 4-20mA current loop (standard for industrial process control, compatible with most actuators).
• Resolution: 14-bit digital-to-analog conversion (DAC), ensuring precise signal output (0.01% of full scale).
• Accuracy: ±0.1% of full scale (typical at 25°C ambient), critical for maintaining process stability (e.g., chemical blending, turbine speed control).
• HART Protocol Support: Yes (enables bidirectional communication with HART-enabled actuators, allowing diagnostic data retrieval).
• Isolation: 1000 VAC/VDC channel-to-logic isolation (protects the DCS from field transients and noise).
• Operating Temperature: 0°C to 60°C (32°F to 140°F), suitable for most industrial environments (e.g., control rooms, field cabinets).
• Storage Temperature: -40°C to 85°C (-40°F to 185°F), withstanding extreme storage conditions.
• Humidity Range: 0–95% RH (non-condensing), resistant to moisture in humid environments (e.g., water treatment plants).
• Power Supply: Powered via the Ovation backplane (24V DC ±10% tolerance, typical for Ovation systems).
• Power Consumption: Main power (typical 4.1W, max 4.5W); Auxiliary power (typical 3.84W, max 7.2W).
• Output Impedance: 250 ohms (compatible with most field devices).
• Noise Rejection: Normal mode rejection (60 dB @ 50/60 Hz), common mode rejection (120 dB @ DC/line frequency).
• Dimensions: Compact form factor (varies by source; typical: ~100mm × 160mm × 25mm), suitable for cabinet installation.
• Weight: ~0.8 kg (1.76 lbs), lightweight for easy handling during maintenance.

Field Application & Problem Solved

• Power Generation: Controlling boiler feedwater valves, turbine governor systems, and generator excitation circuits. The 14-bit resolution allows for incremental adjustments (e.g., 0.01% of full scale), which is essential for maintaining optimal turbine efficiency.
• Chemical Processing: Regulating process valves (e.g., control valves in distillation columns) and variable-speed compressors. HART support enables predictive maintenance—you can read diagnostic data from smart valves (e.g., valve position, stem friction) without interrupting the process, reducing downtime and repair costs.
• Water Treatment: Adjusting pump speeds and chemical dosing valves. The module’s high accuracy ensures consistent water quality, while HART communication allows for real-time monitoring of pump health.

Its core value is precision and intelligence in mission-critical applications. The 14-bit DAC ensures that the output signal is accurate to within 0.01% of full scale, which is essential for processes like chemical blending where small changes can affect product quality. The HART support also allows you to detect issues like sticking valves before they cause a process upset, enabling proactive maintenance.

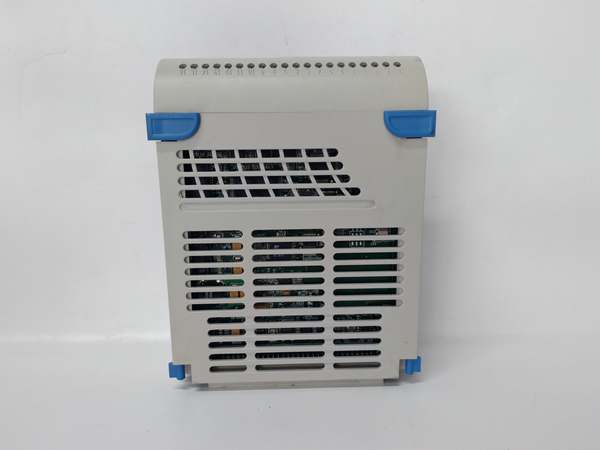

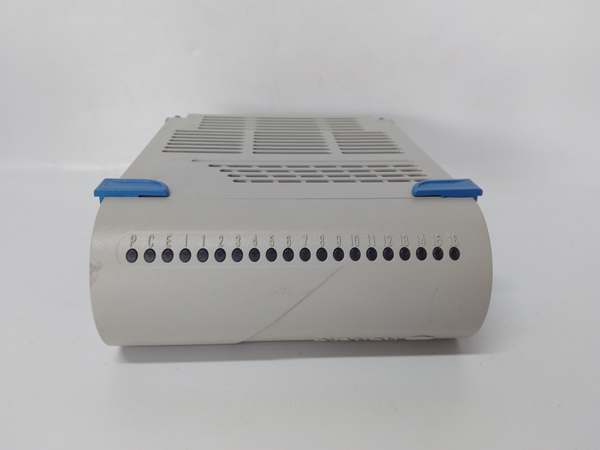

5X00167G01

Installation & Maintenance Pitfalls (Expert Tips)

1. Incorrect Wiring of Current Loops​
   A common rookie mistake is reversing the polarity of the 4-20mA current loop. Always connect the positive terminal (+) of the module to the positive terminal of the field device (e.g., valve positioner) and the negative terminal (–) to the negative terminal. Reversing polarity will cause the device to misinterpret the signal—we once had a client burn out a valve positioner because of this error.
2. Ignoring HART Configuration​
   The 5X00167G01 supports HART, but you must enable it in the Ovation software. If HART is disabled, you won’t be able to read diagnostic data from smart devices. To enable HART, go to the module’s configuration page in Ovation Explorer and check the “Enable HART” box. We’ve seen technicians skip this step, leading to missed opportunities for predictive maintenance.
3. Poor Shielding of Field Cables​
   Analog signals are susceptible to electromagnetic interference (EMI) from nearby power cables or motors. Always use shielded twisted-pair cables​ for field wiring, and ground the shield at one end (preferably the module end). Un-shielded cables can pick up noise, causing the output signal to fluctuate—we fixed a recurring valve oscillation in a refinery by replacing un-shielded cables with shielded ones.
4. Skipping Calibration Checks​
   Even though the 5X00167G01 has high accuracy, it’s important to calibrate it annually using a precision multimeter. Check the output signal (4-20mA) against the module’s display in Ovation Explorer. If the signal deviates by more than ±0.1%, recalibrate the module using Emerson’s calibration tool. We once found a module with a 0.3% error that was causing a 5% variation in product quality—calibration fixed the issue.

Technical Deep Dive & Overview

1. Signal Reception: The Ovation controller sends a digital command (e.g., “open valve 50%”) to the 5X00167G01 via the backplane.
2. Digital-to-Analog Conversion (DAC): The module’s internal 14-bit DAC converts the digital command into a proportional 4-20mA current signal.
3. HART Communication: If the field device is HART-enabled, the module transmits diagnostic data (e.g., valve position, temperature) back to the DCS via the same current loop.
4. Output to Field Device: The 4-20mA signal is sent to the field device (e.g., valve positioner), which adjusts its position accordingly.
5. Feedback to DCS: The module sends a status signal back to the DCS indicating whether the output is active—critical for diagnostic purposes.
