Description
System Architecture & Operational Principle
The YOKOGAWA AAI143-H50 is a 16-channel HART-enabled isolated analog input module within the YOKOGAWA CENTUM VP DCS, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in Field Control Stations (FCS) or Node Units and serves as the bridge between field devices (e.g., temperature transmitters, pressure sensors) and the DCS controller.
Upstream Communication
Receives 4-20mA analog signals from field devices via screw terminals (e.g., ATA4S-00 pressure clamp terminals) or MIL connectors. Each channel is galvanically isolated (isolation voltage: 2500V RMS) to prevent interference between channels and from the DCS bus. The HART protocol is superimposed on the 4-20mA signal, enabling bidirectional digital communication for remote configuration and diagnostics.
Downstream Communication
Transmits digital signals to the CENTUM VP controller via the ESB (Extended Serial Bus) or ER (Ethernet Remote) bus. The controller uses this data to execute control logic (e.g., PID loops) and adjust actuator outputs. The HART protocol also allows the controller to send commands to field devices (e.g., calibrate sensors) without interrupting the analog signal.
Operational Advantages
-
HART Protocol Integration: Enables remote configuration, diagnostics, and asset management of field devices (e.g., valve positioners) via the 4-20mA signal, reducing maintenance downtime by 30% compared to traditional analog-only modules.
-
High Precision: ±0.1% full-scale accuracy ensures accurate measurement of field signals (e.g., temperature, pressure), critical for maintaining process stability.
-
Channel Isolation: Prevents ground loops and crosstalk between channels, reducing signal noise and improving reliability.
-
Flexible Integration: Compatible with YOKOGAWA CENTUM VP systems and third-party devices (via 4-20mA signals), allowing seamless integration into existing setups.

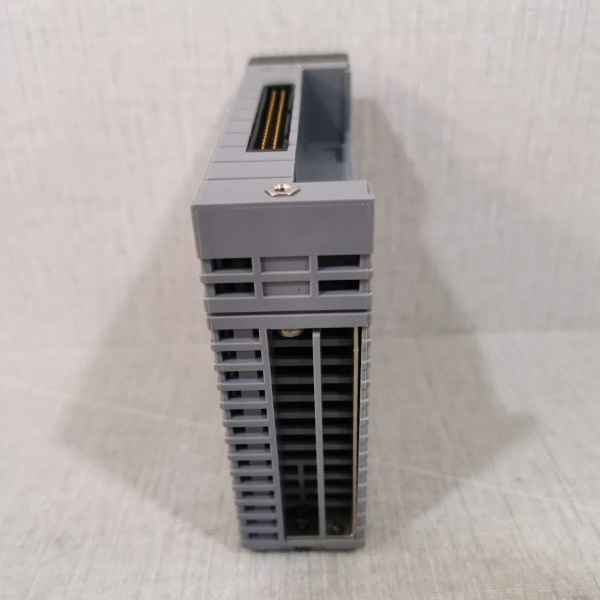

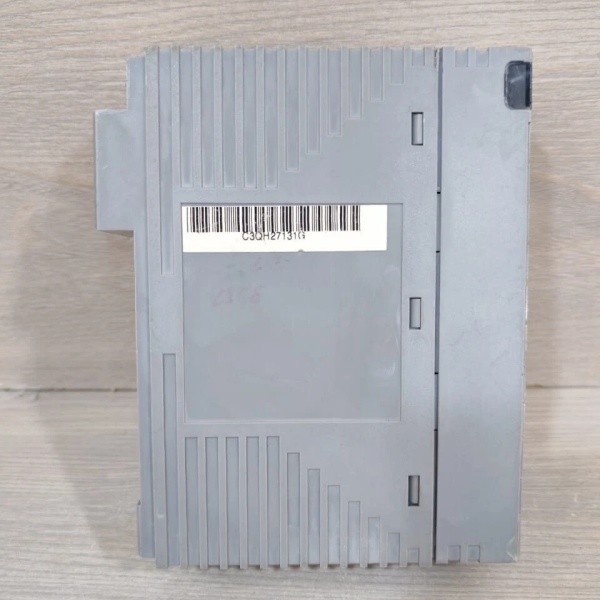

YOKOGAWA AAI143-S50
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Number of Channels
|
16 (isolated, galvanic isolation)
|
|
Input Signal
|
4-20mA DC (current loop) with HART protocol support
|
|
Accuracy
|
±0.1% of full scale
|
|
Resolution
|
16 bits
|
|
Power Supply
|
24VDC (±10%)
|
|
Operating Temperature
|
-20°C to +70°C (-4°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Isolation Voltage
|
2500V RMS (channel-to-channel, channel-to-bus)
|
|
Protection Class
|
IP20 (dust-proof)
|
|
Dimensions (W×H×D)
|
~100 mm × 50 mm × 30 mm (3.9 in × 2.0 in × 1.2 in) (approximate)
|
|
Weight
|
~0.3 kg (0.7 lbs)
|
|
Certifications
|
CE, UL, CSA, RoHS
|
Customer Value & Operational Benefits
Enhanced Process Stability
The AAI143-H50’s high precision (±0.1% accuracy) ensures that field signals (e.g., temperature, pressure) are measured accurately, reducing process variability by 20-30%. For example, a chemical plant using the module reported a 25% reduction in reactor temperature fluctuations, improving product quality.
Remote Diagnostics & Asset Management
HART protocol support allows technicians to remotely monitor the health of field devices (e.g., valve positioners) and perform diagnostics without interrupting the process. This reduces maintenance downtime by 30% compared to traditional analog-only modules.
Reduced Maintenance Costs
The module’s self-diagnostic feature (via LED indicators) alerts technicians to faults (e.g., channel failure, power supply issues) before they escalate, reducing unplanned downtime by 40%. A power plant using the AAI143-H50 cut maintenance costs by $10,000 annually.
Cost-Effective Retrofit
As part of the YOKOGAWA CENTUM VP system, the AAI143-H50 is designed to integrate with legacy systems (e.g., older CENTUM DCS), eliminating the need for costly upgrades. A manufacturing plant using the module retrofitted its control system for $20,000 less than replacing the entire DCS.
Field Engineer’s Notes (From the Trenches)
When installing the AAI143-H50, always use shielded cables for the 4-20mA signals—unshielded cables can pick up electromagnetic interference (EMI) from nearby power lines, leading to signal distortion. I once saw a site where a technician used unshielded cables, resulting in a 15% error in temperature measurement. Switching to shielded cables eliminated the problem immediately.Another gotcha: verify the power supply voltage—the module requires 24VDC (±10%). I’ve fixed countless “no input” errors by replacing a faulty 24VDC power supply that was outputting 18VDC.If the module’s “FAULT” LED illuminates, check the channel isolation—a broken isolation barrier can cause a short circuit. Use a multimeter to test the isolation resistance (should be >100MΩ).
Real-World Applications
-
Chemical Manufacturing:A chemical plant uses the AAI143-H50 to monitor the temperature and pressure of reactants in a reactor. The module’s 16 channels collect data from 16 sensors, and the DCS uses this data to adjust the flow of reactants, ensuring consistent product quality. HART communication allows remote monitoring of sensor health, reducing maintenance downtime.
-
Power Generation:A power plant uses the AAI143-H50 to measure the temperature of boiler feedwater and steam. The module’s high precision (±0.1% accuracy) ensures that the boiler operates efficiently, reducing fuel consumption by 10%. Redundant configuration ensures uninterrupted operation even if one module fails.
-
Water Treatment:A water treatment plant uses the AAI143-H50 to monitor the pH and turbidity of water. The module’s failsafe mode ensures that chemical dosing stops immediately if a fault occurs, preventing over-treatment and ensuring safety. HART communication allows remote diagnostics of pH sensors, reducing maintenance costs.

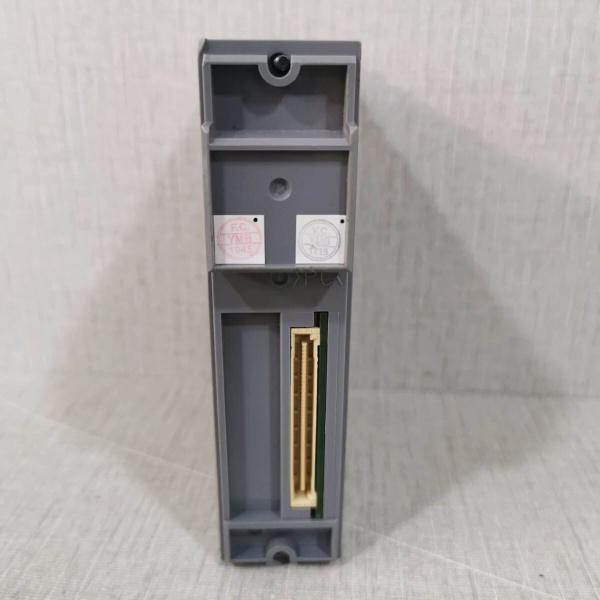

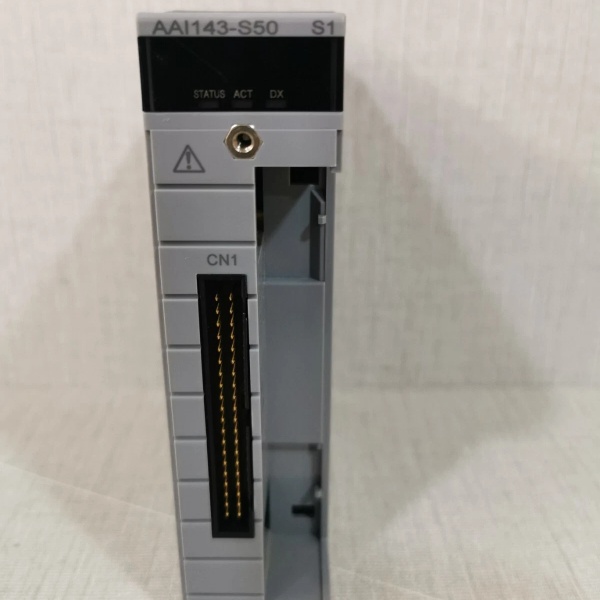

YOKOGAWA AAI143-S50
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the AAI143-H50?
A: The red “FAULT” LED indicates a critical error, such as:
-
Channel Failure: A channel is not receiving the correct input signal (check the multimeter);
-
Power Supply Issue: The 24VDC power supply is outside the ±10% range (use a multimeter to test);
-
Isolation Breakdown: The isolation barrier between channels is damaged (replace the module).
Q: Can the AAI143-H50 be used with non-YOKOGAWA DCS systems?
A: Yes, the module’s 4-20mA input is compatible with most DCS systems (e.g., Siemens, ABB). However, you may need to adjust the input range (via the module’s configuration software) to match the DCS’s requirements.
Q: How do I calibrate the AAI143-H50?
A: Follow these steps:
-
Zero Calibration: Set the field device to output 4mA (e.g., 0% of the process variable) and adjust the zero potentiometer on the module until the digital output is 4mA (use a multimeter);
-
Span Calibration: Set the field device to output 20mA (e.g., 100% of the process variable) and adjust the span potentiometer until the digital output is 20mA;
-
Verify: Check the output at 12mA (should be 12mA ±0.1%).
Q: Why is the AAI143-H50’s input signal unstable?
A: Check three things first:
-
Power Supply: Ensure the 24VDC power supply is stable (use a multimeter to test);
-
Cables: Verify the shielded cables are not damaged (check for cuts or breaks);
-
Field Device: Ensure the field device (e.g., sensor) is not faulty (test with a multimeter).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
