Description
System Architecture & Operational Principle
The Yokogawa YHC5150X is a standalone handheld device that operates outside the fixed automation topology, interfacing directly with Level 0 field instruments (transmitters, valves). It does not reside on a DCS backplane but connects in series on a 4-20mA signal loop.
Upstream, it receives user commands via its touchscreen and QWERTY keyboard to execute HART protocol functions. Downstream, it transmits digital commands over the analog current loop to read device PV values, write configuration parameters (e.g., tag name, range), and perform diagnostics.
Its operational advantage lies in its self-contained nature. Powered by an internal battery, it avoids drawing current from the loop, which could affect measurement accuracy. The direct HART communication bypasses the control system, allowing for live device interrogation without disturbing the process. The Windows CE-based OS and large display simplify tasks that would otherwise require a laptop and multiple software packages.
Core Technical Specifications
-
Display: 4.3-inch anti-glare touchscreen (480×272 pixels)
-
Processor: 1 GHz microprocessor
-
Memory (RAM): 256 MB
-
Storage: 512 MB internal flash (supports SD card expansion)
-
Battery Life: 20 hours continuous use
-
Communication Protocol: HART 6/7, optional BRAIN
-
Input Method: 52-key QWERTY keyboard with tactile feedback
-
Intrinsic Safety Certs: ATEX, IECEx, FM, CSA (Zone 0/Div 1)
-
Ingress Protection: IP67
-
Operating Temperature: -20°C to +60°C
-
Dimensions: 303 mm x 142 mm x 48 mm
-
Weight: ~0.91 kg (with battery)

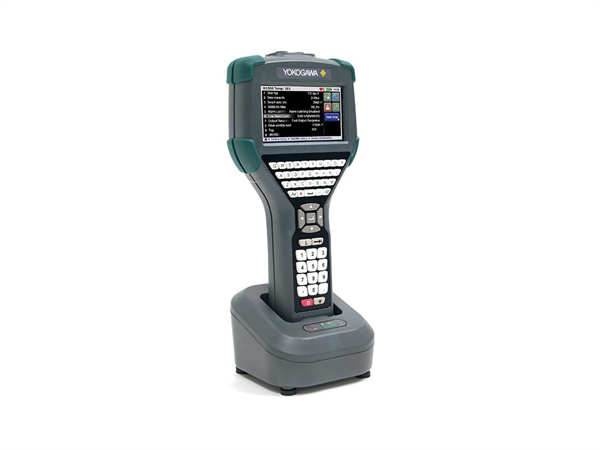

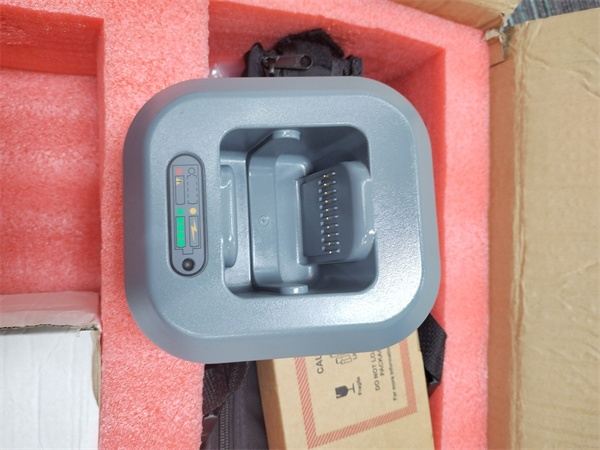

Yokogawa YHC5150X
Customer Value & Operational Benefits
Reduced Device Commissioning Time
The YHC5150X loads native device descriptor (DD) files, cutting setup time by half compared to generic communicators. Technicians can pull a transmitter’s configuration from a library and apply it in minutes, not hours.
Minimized Unplanned Downtime
On-the-spot diagnostics identify failing components—like a sticking valve positioner—before they cascade into a process trip. The 20-hour battery life lets you run a full shift without returning to the shop for a charge, getting the job done in one go.
Field Durability
The IP67 rating means it can be dropped in a puddle or covered in dust on a rig floor. It’s built to survive the abuse of daily field use, unlike consumer-grade tablets.
Field Engineer’s Notes (From the Trenches)
When connecting the YHC5150X to a device in a VFD-heavy area, don’t just clip onto the loop wires. The induced noise can garble the HART signal. I use a purpose-built test lead with ferrite beads near the connector. Also, always verify the loop resistance with a multimeter; it must be close to 250 ohms for reliable comms. I once spent an hour chasing a phantom fault only to find a 120-ohm resistor in the junction box.
Real-World Applications
-
Natural Gas Pipeline Pressure MonitoringUsed to commission a Rosemount 3051S transmitter. The communicator verified the 4-20mA output against a deadweight tester, configured the damping for pulsating flow, and wrote the site-specific tag information directly to the device.
-
Chemical Reactor Feed Valve DiagnosticsDeployed to troubleshoot a Samson 3730 positioner showing erratic behavior. The YHC5150X read the device alert log, performed a partial stroke test to isolate mechanical binding, and confirmed the I/P converter was the faulty component.

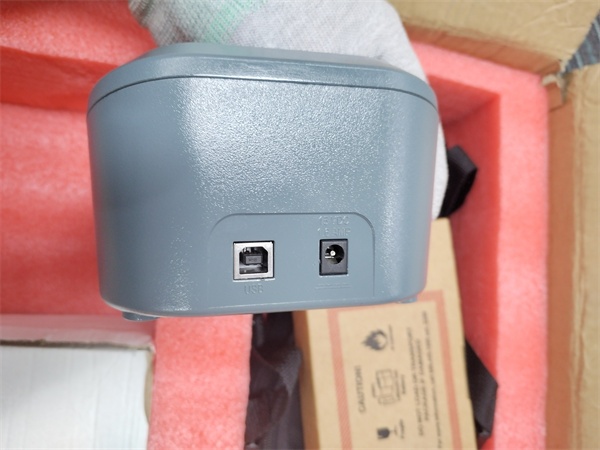

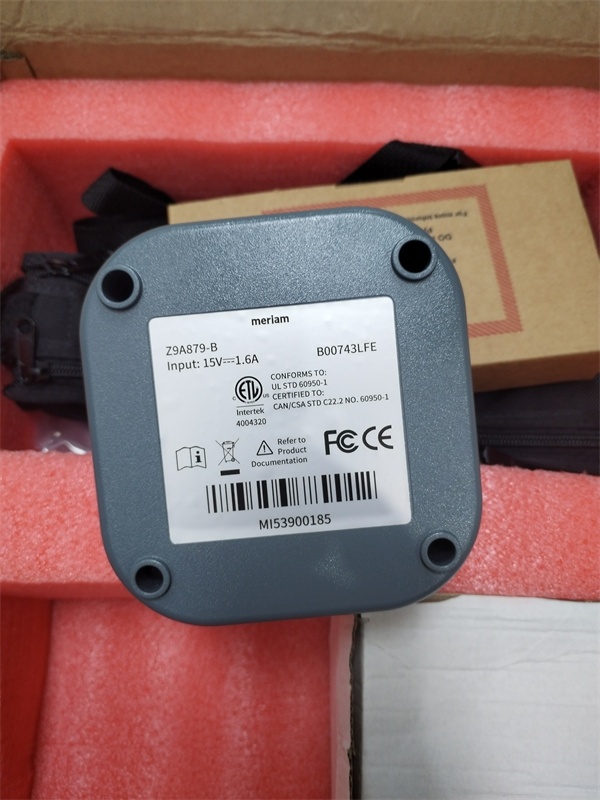

Yokogawa YHC5150X
High-Frequency Troubleshooting FAQ
Q: Is the Yokogawa YHC5150X compatible with Emerson Rosemount wireless adapters?
A: Yes. It communicates with any HART device presenting a standard 4-20mA signal, including those behind wireless adapters. The communicator sees the adapter as a transparent link.
Q: Why does the YHC5150X fail to establish communication with a newly installed transmitter?
A: Check three common faults: 1) Loop power is not present or is unstable (verify 24VDC at the terminals). 2) The total loop resistance is not ~250 ohms (measure with a multimeter; add a resistor if needed). 3) The device is set to a non-zero polling address; reset it to 0 for primary master communication.
Q: What does a flashing red LED on the YHC5150X indicate?
A: It signals a critical system error—low battery, boot failure, or internal hardware fault. Attempt a soft reset by holding the power button. If the LED persists, the unit likely needs repair.
Q: Can I use the YHC5150X to trim the zero and span of an analog transmitter?
A: Yes. The communicator can perform sensor trim (zero) and output trim (span) using standard HART commands. This is essential after sensor replacement or for recalibration.
