High Reliability: With an MTBF exceeding 80,000 hours, the 3BHB000272R0001 UFC719AE01 ensures long-term stability in harsh conditions (e.g., dust, temperature fluctuations).
Energy Efficiency: Reduces energy consumption by up to 30% compared to fixed-speed systems through variable torque control.
Advanced Control: DTC technology enables precise speed regulation (±0.1% accuracy) and quick response to load changes.
Flexible Integration: Supports multiple communication protocols and integrates with ABB’s System 800xA for centralized monitoring.
The3BHB000272R0001 UFC719AE01is a high-performance frequency converter module designed by ABB, a globally recognized leader in industrial automation. Engineered for precise motor control and system optimization, this module integrates advanced power electronics and digital control technology to deliver reliable operation in diverse industrial environments. The 3BHB000272R0001 UFC719AE01 supports seamless integration with ABB’s industrial control systems (e.g., AC500, AC800M), offering flexible configuration for speed regulation, energy efficiency, and process optimization. ABB’s 3BHB000272R0001 UFC719AE01 is ideal for applications requiring robust performance, including motor drives, conveyor systems, and pump/fan control. Its compact design, multi-protocol compatibility, and built-in safety features make it a versatile choice for upgrading or building new automation setups.
2. Product Parameters
Parameter
Specification
Voltage
380–500 V AC (±10%), 24 V DC (control)
Rated Current
16 A (continuous), 20 A (peak)
Power Rating
7.5 kW
Control Method
Vector control, direct torque control (DTC)
Communication Interfaces
Profibus DP, Modbus RTU, Ethernet/IP
Motor Compatibility
3-phase induction/synchronous motors
Protection Class
IP20 (module), IP54 (with optional enclosure)
Operating Temperature
-10°C to +50°C (ambient)
Certifications
CE, UL, RoHS, ISO 9001

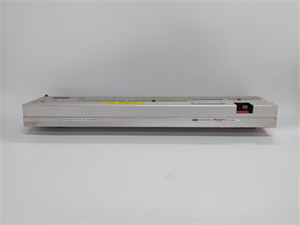

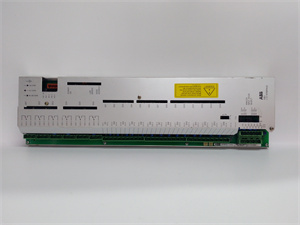

3BHB000272R0001 UFC719AE01
3. Advantages and Features
High Reliability: With an MTBF exceeding 80,000 hours, the 3BHB000272R0001 UFC719AE01 ensures long-term stability in harsh conditions (e.g., dust, temperature fluctuations).
Energy Efficiency: Reduces energy consumption by up to 30% compared to fixed-speed systems through variable torque control.
Advanced Control: DTC technology enables precise speed regulation (±0.1% accuracy) and quick response to load changes.
Flexible Integration: Supports multiple communication protocols and integrates with ABB’s System 800xA for centralized monitoring.
Case Study: A North American water treatment plant upgraded its pump system with the 3BHB000272R0001 UFC719AE01. By adjusting pump speed based on water demand, the module reduced energy costs by 25% and extended motor lifespan by 40% through soft start/stop functionality.
5. Competitive Comparison
Compared to similar frequency converter modules:
Faster Response: 5 ms torque response (vs. industry average of 10–15 ms).
Broader Voltage Range: 380–500 V AC (vs. typical 400–480 V).
Integrated Safety: Built-in STO (Safety Torque Off) compliance (ISO 13849 PL d) without additional modules.
Compact Design: 30% smaller footprint than comparable 7.5 kW drives.

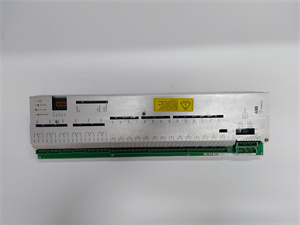

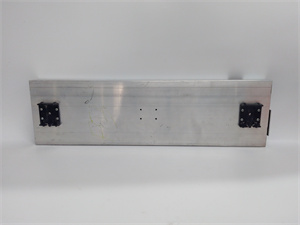

3BHB000272R0001 UFC719AE01
6. Selection Recommendations
Compatibility: Ensure compatibility with existing ABB control systems (e.g., AC500 I/O modules).
Power Requirements: Match motor power (7.5 kW max.) and voltage (3-phase AC).
Environment: Choose optional IP54 enclosure for dusty/wet environments.
Functionality: Prioritize DTC control for high-precision applications (e.g., robotics); select vector control for general use.
7. Precautions
Installation: Mount vertically in a well-ventilated enclosure; torque terminal screws to 4 N·m.
Wiring: Use shielded cables for control signals; separate power/control wiring to prevent interference.
Commissioning: Calibrate motor parameters (voltage, impedance) via ABB’s DriveWindow software.
Maintenance: Clean dust from vents annually; replace cooling fans every 5 years (expected lifespan).
声明: Shanxi XinyeDa International Trade Co., Ltd. is your trusted partner for industrial automation solutions. We provide the 3BHB000272R0001 UFC719AE01 and a comprehensive range of ABB spare parts, backed by expert technical support. Visit our website www.xydcontrol.com or contact us to explore how this module can optimize your system’s performance and efficiency.
