3BSE018100R1 PM860K01

Description

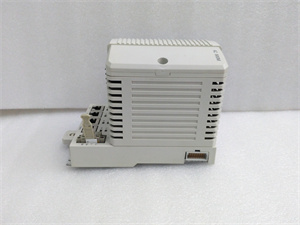

Product Description: ABB 3BSE018100R1 PM860K01 PLC Spare Part

Product Parameters

Parameter	Specification
Type	Digital Input/Output Module (16 channels)
Voltage	24 V DC (Input/Output)
Current Rating	50 mA per channel (Input), 0.5 A per channel (Output)
Interface	Plug-in for AC500 PLC rack
Compatibility	ABB AC500 Series (e.g., PM581, PM590)
Operating Temperature	-25°C to +60°C
Dimensions	100 mm (W) × 160 mm (H) × 50 mm (D)
Certifications	CE, UL, RoHS

3BSE018100R1 PM860K01

Advantages and Features

1. High Reliability:
   • Built with industrial-grade components, the PM860K01 offers a mean time between failures (MTBF) of over 500,000 hours, ensuring continuous operation in demanding settings.
   • Overvoltage and short-circuit protection safeguard against electrical faults.
2. Flexible I/O Configuration:
   • 16 configurable channels (8 inputs + 8 outputs or 16 inputs/outputs) allow adaptability to diverse control requirements.
   • Supports both sinking and sourcing logic for compatibility with various sensors and actuators.
3. Easy Integration:
   • Plug-and-play design reduces installation time by 30% compared to legacy systems.
   • Compatible with ABB’s Automation Builder software for seamless programming and diagnostics.
4. Wide Environmental Tolerance:
   • Operates in extreme temperatures (-25°C to +60°C) and high humidity (up to 95% non-condensing), suitable for outdoor and harsh industrial environments.

Application Areas and Case Studies

• Industry: Manufacturing (assembly lines), energy (power plants), water treatment, and machinery.
• Use Case: A steel mill upgraded its conveyor system with the 3BSE018100R1 PM860K01 to monitor sensor inputs (e.g., proximity switches) and control motor actuators. The module’s reliability reduced downtime by 20%, while its compact design saved 15% panel space.

Competitor Comparison

• Superior Compatibility: Native integration with ABB’s AC500 PLCs, eliminating the need for adapters.
• Lower Maintenance Costs: Hot-swap capability reduces repair time by 50% compared to non-hot-swap alternatives.
• Extended Temperature Range: Operates 10°C colder/hotter than most comparable modules, making it suitable for extreme climates.


  3BSE018100R1 PM860K01

Selection Recommendations

1. Compatibility: Ensure compatibility with your PLC rack (AC500 series).
2. I/O Requirements: Match channel count (16 channels) and voltage (24 V DC) with your system.
3. Environment: Prioritize this module for applications with temperature fluctuations or high humidity.
4. Budget: Balance cost with long-term reliability—while slightly premium, the PM860K01 offers a 3-year warranty and lower lifecycle costs.

Precautions

1. Installation:
   • Follow ESD (electrostatic discharge) protocols; use antistatic wrist straps.
   • Ensure proper grounding to prevent voltage surges.
2. Operation:
   • Do not exceed rated voltage (24 V DC ±10%).
   • Regularly inspect connectors for corrosion in humid environments.
3. Maintenance:
   • Schedule annual checks for loose connections or physical damage.
   • Replace modules every 10 years (or as per ABB’s lifecycle guidelines).
