1. Product Description
The ABB 3BSE030220R1 CI854AK01 is a PROFIBUS-DP/V1 communication interface module designed for ABB’s S800 I/O and AC800M control systems. Serving as a bridge between the module bus and PROFIBUS-DP networks, the CI854AK01 enables seamless communication with field devices such as sensors, actuators, and drives in industrial automation setups. Its dual-channel architecture supports high-speed data transfer (up to 12 Mbps) and redundant configurations, ensuring reliable operation in critical processes. The module includes a CI854 communication interface and TP854 baseplate, with a compact design (127.5 mm × 185 mm × 59 mm) for easy integration into existing systems. Note: This module is non-RoHS 2 compliant and is intended for legacy systems (pre-2017 installations); new projects should use the RoHS-compliant CI854BK01 (3BSE069449R1).
2. Product Parameters
| Parameter | Specification |
|---|---|
| Model | 3BSE030220R1 (CI854AK01) |
| Communication Protocol | PROFIBUS-DP/V1 |
| Data Rate | 9.6 kbps to 12 Mbps |
| Slave Devices | Up to 31 |
| Power Supply | 24 VDC (2.5 W typical consumption) |
| Dimensions | 127.5 mm (depth) × 185 mm (height) × 59 mm (width) |
| Weight | 0.59 kg |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| RoHS Compliance | Non-compliant (legacy systems only) |

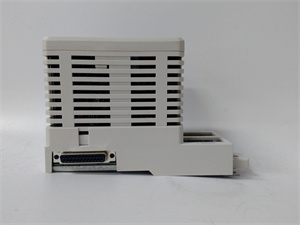

3BSE030220R1 CI854AK01
3. Advantages and Features
- Reliable Redundancy: Dual-channel design supports fault-tolerant communication, minimizing downtime in critical applications.
- High-Speed Performance: 12 Mbps data rate ensures real-time control for precision automation.
- Easy Integration: Plug-and-play design with module bus and PROFIBUS-DP connectors (9-pin Sub-D) for quick setup.
- Advanced Diagnostics: Built-in status monitoring for troubleshooting and predictive maintenance.
- Legacy Support: Ideal for upgrading or repairing pre-2017 systems without replacing entire infrastructure.
- Compact Design: Space-saving form factor suits tight industrial environments.
4. Application Areas and Case Studies
Industries:
- Industrial automation (manufacturing, packaging)
- Energy (power plants, renewable energy)
- Process control (chemical, oil & gas)
- Machinery (conveyor systems, robotics).
Case Study:
A food processing plant used the CI854AK01 to connect 25 PROFIBUS-DP devices (sensors and valves) in a bottling line. The module’s dual-channel redundancy and 12 Mbps speed reduced communication latency by 40%, improving line efficiency and uptime.
A food processing plant used the CI854AK01 to connect 25 PROFIBUS-DP devices (sensors and valves) in a bottling line. The module’s dual-channel redundancy and 12 Mbps speed reduced communication latency by 40%, improving line efficiency and uptime.
5. Competitor Comparison
Compared to similar PROFIBUS-DP modules:
- Faster Redundancy: Dual-channel architecture vs. single-channel alternatives.
- Higher Data Rate: 12 Mbps (vs. 10 Mbps in some legacy models).
- Simplified Configuration: Predefined PROFIBUS-DP/V1 profiles reduce setup time by 30%.
- Legacy Compatibility: Direct replacement for ABB’s older interfaces (e.g., CI854A) without software changes.
3BSE030220R1 CI854AK01
6. Selection Recommendations
- System Age: Use for pre-2017 systems; choose CI854BK01 (RoHS-compliant) for new installations.
- Network Size: Verify support for up to 31 slaves (suitable for small to medium-scale networks).
- Redundancy Needs: Opt for dual-channel configuration in critical processes (e.g., 24/7 manufacturing).
- Compatibility: Ensure compatibility with ABB’s S800 I/O or AC800M systems (check firmware versions).
7. Precautions
- RoHS Compliance: Not for new installations; use CI854BK01 (3BSE069449R1) for RoHS-compliant setups.
- Temperature Management: Maintain operating temperature <55°C to avoid performance degradation.
- Wiring Standards: Follow PROFIBUS-DP cabling guidelines (shielded twisted pair) for noise immunity.
- Firmware Updates: Regularly update firmware via ABB’s System 800xA software for optimal security.
- Maintenance: Inspect connectors and cables annually; replace faulty modules within 1-year warranty.
