ABB 3BSE042235R1 PP845 Product Documentation
The

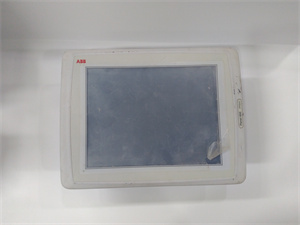

ABB 3BSE042235R1 PP845 is a high-performance industrial touchscreen human-machine interface (HMI) designed for automation systems. As part of ABB’s Panel 800 series, it serves as a central hub for equipment monitoring, data interaction, and process control. With a 10.4-inch TFT display (800×600 pixels) and capacitive touch technology, the
PP845 offers intuitive operation for industrial operators. Its robust design supports multi-protocol communication (Ethernet, RS232/485), enabling seamless integration with PLCs, sensors, and actuators. The module is engineered for harsh environments, ensuring reliability in temperature ranges from -10°C to +60°C and humidity up to 85% non-condensing.
| Parameter |
Specification |
| Display |
10.4-inch TFT, 800×600 pixels, color graphics |
| Touch Technology |
Capacitive touchscreen |
| Processor |
ARM9 (1 GHz) |
| Memory |
2 GB SSD (1.5 GB available for applications) |
| Power Supply |
24 V DC (18–32 V DC) |
| Communication Interfaces |
Ethernet (2×10/100BASE-T), USB 2.0 (2 ports), RS232, RS422/485 |
| Protection Rating |
Front: IP65/NEMA 4X; Rear: IP20 |
| Operating Temperature |
-10°C to +60°C |
| Dimensions |
200.4 mm × 146.5 mm × 34 mm |
| Weight |
1.9 kg |
3BSE042235R1 PP845
- Intuitive Interaction: The 10.4-inch touchscreen with high-resolution graphics enhances operator efficiency, reducing errors in critical tasks.
- Multi-Protocol Connectivity: Supports Ethernet, USB, and serial interfaces for seamless integration with ABB and third-party systems.
- Industrial-Grade Reliability: IP65-rated front panel resists dust and moisture, while a wide temperature range (-10°C to +60°C) ensures performance in extreme environments.
- Advanced Functionality: Built-in alarm management, trend analysis, and multi-language support (via ABB’s Panel Builder 800 software) optimize operational flexibility.
- Energy Efficiency: Low power consumption (21.6 W) reduces operational costs in long-term use.
Industries: Manufacturing (packaging, automotive), energy (oil/gas, water treatment), and infrastructure (municipal projects).
Case Study: A food processing plant integrated the PP845 to monitor conveyor systems and packaging machinery. The HMI’s real-time data visualization and alarm features reduced downtime by 20%, improving production efficiency.
Compared to similar HMIs, the PP845 stands out with its combination of a large touchscreen, multi-protocol compatibility, and rugged design. Its IP65 rating exceeds standard industry norms for front-panel protection, while its wide temperature range supports outdoor and heavy-duty applications.
3BSE042235R1 PP845
- Compatibility: Ensure compatibility with your automation system (e.g., ABB PLCs, third-party controllers).
- Environment: Choose based on operating conditions (e.g., IP65 for dusty/humid environments).
- Budget: Balance features (e.g., screen size, memory) with cost; the PP845 offers a mid-range solution with high ROI.
- Scalability: Leverage ABB’s Panel Builder 800 software for easy customization and future expansions.
- Installation: Follow ABB’s guidelines for mounting (panel cut-out: 190 mm × 136 mm) and wiring to avoid signal interference.
- Maintenance: Regularly clean the touchscreen with a non-abrasive cloth; check firmware updates via ABB’s official platform.
- Power Stability: Use a stabilized 24 V DC power supply to prevent voltage fluctuations.
- Safety Compliance: Adhere to UL 61010-2-201 standards for industrial equipment operation.
Conclusion
The ABB 3BSE042235R1 PP845 is a versatile HMI solution for industrial automation, combining user-friendly design, robust reliability, and advanced connectivity. Ideal for complex processes, it optimizes control and monitoring across diverse industries.
Shanxi Xinyeda International Trade Co., Ltd. is your trusted partner for
ABB 3BSE042235R1 PP845 and other automation spare parts. We offer sales, technical support, and tailored solutions. Visit our website
www.xydcontrol.com or contact us for expert assistance.
