ABB 5SHX0660F0002 Product Overview
Product Overview

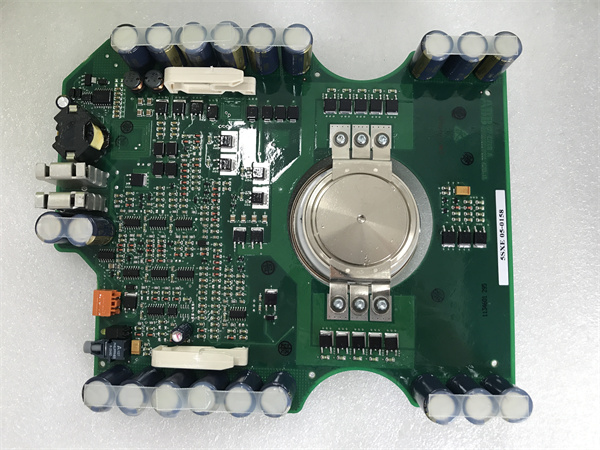

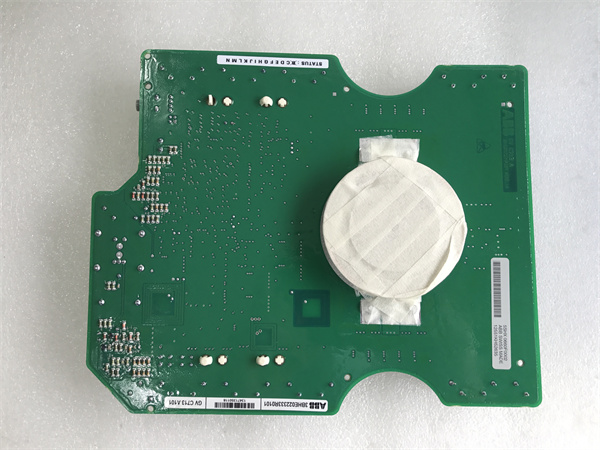

5SHX0660F0002 is an IGBT module produced by ABB.IGBT(Insulated Gate Bipolar Transistor)is a power semiconductor device widely used in fields such as motor drive and power electronic frequency converters.This type of IGBT module has the characteristics of high efficiency,fast switching,and high voltage resistance,and is widely used in industrial automation,power electronics,and other fields.
Product parameters and specifications
Model:5SHX0660F0002
Switching speed:ns level
Working temperature:-40℃to+150℃
Packaging form:Typically,flat no lead packaging(FP)or other packaging forms suitable for power devices are used
Product series and features
Series:ABB’s IGBT modules typically belong to its power semiconductor product line.
features:
High efficiency:low conduction voltage drop,reducing energy loss
Quick switch:Improve system response speed and efficiency
High voltage resistance:suitable for high-voltage applications
High reliability:rigorously tested and screened
Simple driving circuit:easy to control
Product function and purpose
5SHX0660F002 is mainly used for:
Motor drive:As the core component of the motor drive system,it controls the speed,torque,and other parameters of the motor.
Power electronic frequency converter:used to convert fixed frequency AC power into variable frequency AC power,achieving stepless speed regulation of the motor speed.
Switching power supply:used for high-frequency switching power supply to achieve voltage conversion and stability.
Other industrial control systems:used in various situations that require power conversion and control.
application area
This type of IGBT module is widely used in the following fields:
Industrial automation:motor drive,frequency converter,welding equipment,etc
Power electronics:UPS power supply,charging stations,new energy generation,etc
Rail transit:traction frequency converter,auxiliary power supply
Home appliances:air conditioners,refrigerators,compressors,etc
