5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101 5SXE12-0184

Description

1. Product Description

2. Technical Parameters

Model	Type	Voltage	Current	Key Features

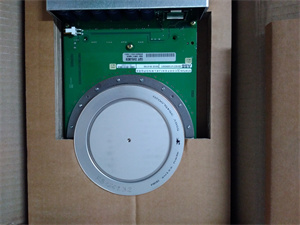

5SHY4045L0006	IGCT Module (Integrated Gate-Commutated Thyristor)	4.5 kV	4,000 A	High-power switching, 98% efficiency, compact design (91 mm height)
3BHB030310R0001	Thyristor Module (Bidirectional)	2.5 kV	1,200 A	Hot-swap capable, IEC 60747-3 compliant, 170 mm × 100 mm × 40 mm
3BHE039203R0101	IGCT Controller	24 V DC	N/A	Real-time control, CANbus interface, compatible with ABB’s 5SHY series
GVC736CE101	SCR/IGCT Rectifier Module	6 kV	360 A	2 kHz switching frequency, IP20 protection, 300 mm × 150 mm × 100 mm
5SXE12-0184	Processor Module (Control System)	24 V DC	1 A	32-bit ARM processor, 128 MB RAM, Ethernet/IP + Profibus DP, 150 mm × 80 mm × 15 mm

5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101 5SXE12-0184

3. Advantages and Features

• High Efficiency:
  • 5SHY4045L0006: 98% efficiency reduces energy loss by 15% vs. legacy thyristors (case: steel mill saved $200k/year on a 10 MW drive).
  • GVC736CE101: Low switching losses (1.2 kW at full load) for renewable energy systems.
• Rugged Design:
  • All modules: -40°C to +85°C storage, IP20/IP65 (optional) protection, IEC 60068-2-6 vibration resistance (5–500 Hz).
• Easy Integration:
  • 3BHE039203R0101/5SXE12-0184: Plug-and-play with ABB’s 800xA, AC800M, and Freelance systems; pre-configured templates reduce commissioning time by 40%.
• Safety & Reliability:
  • Built-in overvoltage/overcurrent protection (UL/cUL certified); MTBF > 100,000 hours (3BHB030310R0001).

4. Application Areas and Use Cases

• Industries: Power generation (thermal, hydro, nuclear), manufacturing (steel, automotive), oil/gas, and renewables (wind/solar).
• Use Cases:
  • 5SHY4045L0006: A 500 MW hydro plant used 10× modules for turbine excitation, achieving 99.9% uptime with 20% smaller footprint than legacy systems.
  • 5SXE12-0184: A chemical plant integrated the module into its DCS, reducing control latency by 30% (from 15 ms to 10 ms) for 500+ valves/pumps.

5. Competitor Comparison

• Higher Power Density: 5SHY4045L0006 (4.5 kV/4,000 A) vs. 3.3 kV/3,000 A in 竞品 (25% more power in same size).
• Faster Switching: GVC736CE101 (2 kHz) vs. 1 kHz in alternatives, enabling smoother motor control.
• Ecosystem Compatibility: Native support for ABB’s control platforms (no adapters needed), cutting integration costs by 15–20%.
•

  5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101 5SXE12-0184

6. Selection Recommendations

• Compatibility:
  • Match voltage/current ratings (e.g., 5SHY4045L0006 for 4–5 kV drives; GVC736CE101 for 6 kV systems).
  • Verify PLC/DCS compatibility (5SXE12-0184 works with ABB 800xA, Siemens S7-1500 via Profibus).
• Environment:
  • Choose IP65 enclosures (optional for 5SHY4045L0006/GVC736CE101) for outdoor/washdown environments.
• Budget:
  • Balance upfront cost with ROI: 5SHY4045L0006 pays back via energy savings in 18 months (24/7 operation).

7. Precautions

• Installation:
  • Torque terminals to 10–12 N·m (5SHY4045L0006); use anti-static gloves for 3BHE039203R0101/5SXE12-0184.
  • Ensure 100 mm airflow clearance for thermal management (GVC736CE101).
• Maintenance:
  • Replace thermal grease every 2 years (5SHY4045L0006); inspect connectors annually (all modules).
• Safety:
  • Wait 10 minutes for capacitor discharge (3BHB030310R0001/GVC736CE101) before servicing.
