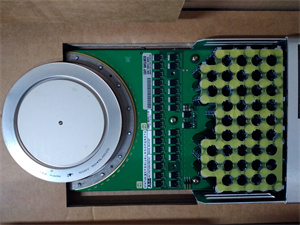

5SHY5045L0020 AC10272001R0101 5SXE08-0167

Description

Product Description: ABB 5SHY5045L0020, AC10272001R0101, 5SXE08-0167

Product Parameters

Parameter	Specification
Brand	ABB
Model	5SHY5045L0020, AC10272001R0101, 5SXE08-0167
Voltage Rating	220 V (operating)
Current Capacity	Optimized for high-power applications
Interface Type	Industrial-standard (compatible with PLC/DCS systems)
Output Frequency	30 Hz (configurable)
Certifications	Compliance with industrial safety standards
Compatibility	ABB’s industrial automation platforms
Physical Dimensions	Compact design for modular installations

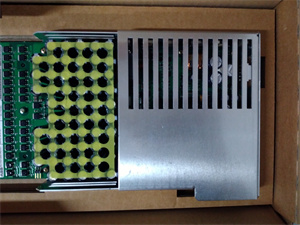

5SHY5045L0020 AC10272001R0101 5SXE08-0167

Advantages and Features

1. High Reliability:
   • Built with ABB’s IGCT (Integrated Gate-Commutated Thyristor) technology for superior switching performance and long service life.
   • Rugged construction ensures resilience in harsh environments (e.g., high temperatures, vibrations).
2. Energy Efficiency:
   • Low conduction and switching losses reduce energy consumption in industrial processes.
   • Optimized thermal management for stable operation under heavy loads.
3. Easy Integration:
   • Modular design supports quick installation and compatibility with existing ABB systems (e.g., S800 I/O, DCS800xA).
   • Standardized interfaces simplify integration with PLC/DCS platforms.
4. Advanced Control:
   • Precise voltage and frequency control for motor drives, power grids, and renewable energy systems.
   • Built-in safety features (e.g., overvoltage protection) ensure operational stability.

Application Areas and Use Cases

• Industry: Manufacturing, oil and gas, water treatment, and power generation.
• Applications: Motor drives, medium-voltage inverters, grid stabilization, and renewable energy systems.

Case Study:
In a water treatment plant, the 5SHY5045L0020 and 5SXE08-0167 were integrated into a 变频调速恒压供水 system. The modules enabled seamless control of pump motors, maintaining consistent water pressure while reducing energy consumption by 20%. The system’s reliability and ease of maintenance supported 24/7 operation with minimal downtime.

5SHY5045L0020 AC10272001R0101 5SXE08-0167

Competitor Comparison

• Higher Power Density: Compact design without compromising performance.
• Longer Lifespan: Advanced materials and thermal management reduce wear.
• Integrated Safety: Built-in protection features eliminate the need for external components.

Selection Recommendations

1. Compatibility: Ensure compatibility with your existing ABB or third-party automation systems (e.g., check voltage/current ratings and communication protocols).
2. Environment: Consider operating conditions (temperature, humidity, and vibration) to select the appropriate enclosure type.
3. Scalability: Choose modular components (e.g., AC10272001R0101) for future system expansions.
4. Budget: Balance performance and cost with ABB’s tiered product options (e.g., entry-level vs. high-end configurations).

Precautions

1. Installation:
   • Follow ABB’s safety guidelines for electrical connections and grounding.
   • Ensure proper ventilation to prevent overheating.
2. Maintenance:
   • Regularly inspect for physical damage or corrosion.
   • Replace worn components according to the maintenance schedule.
3. Safety:
   • Disconnect power before servicing.
   • Use certified technicians for installation and repairs.
