Description

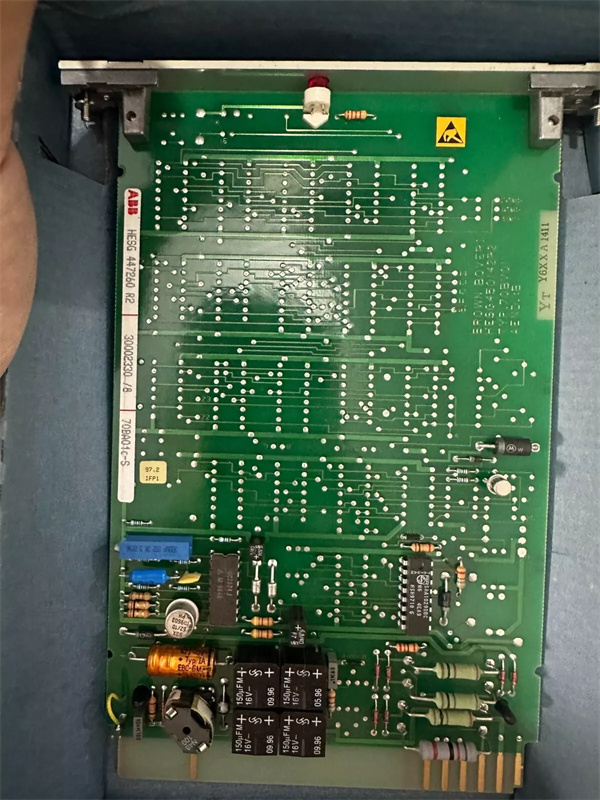

Product Description: 70BA01C-S HESG447260R2

The 70BA01C-S HESG447260R2 is a high-reliability I/O module designed by ABB for its Symphony® Plus distributed control system (DCS). Engineered for industrial process automation, the 70BA01C-S HESG447260R2 supports analog and digital signal processing, ensuring precise data acquisition and control in harsh environments. As part of ABB’s modular DCS architecture, this module offers seamless integration with legacy Infi 90, Network 90, and modern Symphony Harmony systems, making it ideal for retrofits and new installations. With 24-channel input/output capacity and advanced diagnostics, the 70BA01C-S HESG447260R2 delivers scalability and reduced downtime for critical operations.

Product Parameters

Parameter Specification
Brand ABB
Model 70BA01C-S HESG447260R2
Type DCS I/O Module (Analog/Digital)
Compatibility ABB Symphony® Plus, Infi 90, Network 90
Channels 24 (12 AI/12 AO or configurable)
Voltage 24V DC (input)/48V DC (output)
Signal Range 0–20 mA, 0–10 V (analog); dry contact (digital)
Memory 2 MB (configuration storage)
Dimensions 17.5 cm x 10 cm x 25 cm (W x H x D)
Weight 0.3 kg
Operating Temperature -40°C to +70°C
Certifications CE, UL, IEC 61508 (SIL 2 compliant)

Advantages and Features

  1. Modular Flexibility: Configurable I/O channels (AI/AO/DI/DO) reduce inventory costs by 15–20% compared to fixed-function modules.
  2. High Reliability: Industrial-grade components ensure a MTBF of 100,000+ hours and IP20 protection against dust and moisture.
  3. Advanced Diagnostics: Real-time channel-level fault detection (e.g., short circuit, signal loss) minimizes troubleshooting time.
  4. Energy Efficiency: Low power consumption (≤5W) meets ISO 50001 energy management standards.
    70BA01C-S HESG447260R2

    70BA01C-S HESG447260R2

Application Areas and Case Studies

Industry Applications:
  • Oil & Gas: Refinery process control, pipeline monitoring.
  • Power Generation: Thermal and renewable energy plant automation.
  • Manufacturing: Batch processing, quality control systems.
Case Study:
A European power plant upgraded its Infi 90 system with 70BA01C-S HESG447260R2 modules. The configurable I/O and diagnostics reduced maintenance downtime by 25%, while backward compatibility saved $150,000 in retrofit costs.

Competitor Comparison

Compared to similar DCS I/O modules:



  • Channel Density: 24 channels (vs. 16–20 channels in most competitors) for space-saving installations.
  • Temperature Range: -40°C to +70°C (wider than standard -20°C to +60°C) for extreme environments.
  • Warranty: 2-year warranty (vs. 1-year standard) with optional lifecycle support.

Selection Recommendations

  • System Requirements: Match I/O type (analog/digital) and channel count with your DCS configuration.
  • Environment: Prioritize modules with extended temperature ratings (e.g., -40°C for Arctic sites).
  • Scalability: Pair with ABB’s 800xA system for cloud-connected analytics and remote monitoring.
  • Cost Efficiency: Opt for configurable modules (like 70BA01C-S HESG447260R2) to avoid overprovisioning.

Precautions

  1. Installation: Use shielded cables for analog signals; follow ABB’s ESD protection guidelines.
  2. Configuration: Validate firmware compatibility with your DCS version (e.g., Symphony Plus 3.1+).
  3. Maintenance: Schedule quarterly health checks; replace modules every 10 years (per ABB’s lifecycle recommendations).
  4. Safety: Ensure compliance with IEC 61511 for safety-critical applications (SIL 2 certified).
