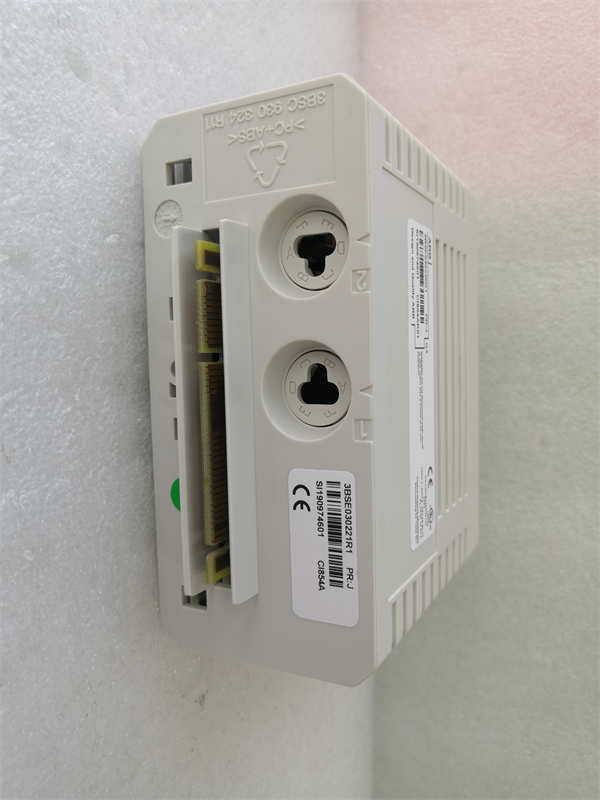

ABB CI854A
ABB CI854A
ABB CI854A
ABB CI854A

ABB CI854A

  • High-Speed Reliability: Supports 12 Mbps data transmission for real-time control in demanding applications.
  • Redundancy Features: Enables master redundancy (dual modules) and system-level redundancy (with BC 810), ensuring uninterrupted operation.
  • Modular Design: DIN rail mountable for easy installation and scalability.
  • Environmental Resilience: Operates in harsh conditions (IP20 protection, wide temperature range).
  • Flexible Connectivity: Integrates with Profibus PA via the LD 800P, expanding compatibility with field instruments.
  • Cost-Effective: Balances performance and affordability, ideal for large-scale industrial projects.
Get a Quote
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

1. Product Description

The CI854A serves as a bridge between Profibus-DP/V1 networks and ABB control systems, facilitating real-time data exchange for monitoring and control. Its key functions include protocol conversion, redundant communication support, and compatibility with devices like the S800 I/O system. The module supports Profibus-DP/V1 and Profibus PA (via the LD 800P linking device), making it versatile for diverse industrial setups. Its rugged design ensures operation in extreme conditions (e.g., high/low temperatures, strong magnetic fields), while easy configuration tools simplify integration into existing systems.

2. Product Parameters

Parameter Specification
Communication Protocol Profibus-DP/V1, Profibus PA (via LD 800P)
Data Rate Up to 12 Mbps
Power Supply 24 VDC (190 mA typical consumption)
Interfaces 9-pin DB female (Profibus A/B connectors)
Redundancy Support Master redundancy (dual CI854A modules), CPU/CEX bus redundancy
Max Units on CEX Bus 12
Operating Temperature 5–55°C (41–131°F)
Storage Temperature -40–70°C (-40–158°F)
Humidity 5–95% (non-condensing)
Certifications CE, Marine (BV, DNV-GL, LR, RS, CCS), RoHS compliant
Physical Dimensions 185 mm (H) × 59 mm (W) × 127.5 mm (D)
Weight 700 g
ABB CI854A

ABB CI854A

3. Advantages and Characteristics

  • High-Speed Reliability: Supports 12 Mbps data transmission for real-time control in demanding applications.
  • Redundancy Features: Enables master redundancy (dual modules) and system-level redundancy (with BC 810), ensuring uninterrupted operation.
  • Modular Design: DIN rail mountable for easy installation and scalability.
  • Environmental Resilience: Operates in harsh conditions (IP20 protection, wide temperature range).
  • Flexible Connectivity: Integrates with Profibus PA via the LD 800P, expanding compatibility with field instruments.
  • Cost-Effective: Balances performance and affordability, ideal for large-scale industrial projects.

4. Application Fields and Cases

The CI854A is widely used in industries such as:
  • Oil & Gas: Monitoring pumps and compressors in offshore platforms.
  • Chemical: Controlling reactors and distillation units.
  • Metallurgy: Managing conveyor systems and furnaces.
  • Water Treatment: Coordinating sensors and actuators in purification plants.
Case Study: A petrochemical plant in the Middle East used CI854A modules to integrate 50+ remote I/O units and sensors across a distributed network. The module’s redundancy and high-speed communication ensured seamless monitoring of critical processes, reducing downtime by 20%.

5. Competitor Comparison

Compared to similar Profibus-DP modules, the CI854A stands out with:
  • Dual Redundancy: Supports both master and system-level redundancy, unlike many single-redundancy alternatives.
  • Wide Protocol Support: Native Profibus-DP/V1 and PA compatibility without additional gateways.
  • Compact Design: Space-saving form factor for modular control cabinets.
    ABB CI854A

    ABB CI854A

6. Selection Recommendations

  • Compatibility: Ensure compatibility with your control system (e.g., AC 800M, S800 I/O).
  • Redundancy Needs: Choose dual CI854A modules for critical applications requiring fault tolerance.
  • Environment: Verify temperature/humidity ranges match your installation site.
  • Scalability: Plan for future expansions (supports up to 12 CEX bus units).

7. Precautions

  • Grounding: Ground the shielded Profibus cable at one end to avoid potential loops (per manual guidelines).
  • Termination: Enable bus termination only at the network’s end node.
  • Redundancy Setup: Configure primary/backup modules with redundant cables for failover resilience.
  • Installation: Follow ABB’s DIN rail mounting instructions and ensure proper ventilation.
