PM803F 3BDH000530R1 is a high-performance PLC controller module designed by ABB, a globally recognized leader in industrial automation. This module is part of ABB’s AC500 series, renowned for its reliability and flexibility in industrial control systems.
1. Product Description
The PM803F 3BDH000530R1 serves as the central processing unit (CPU) for ABB’s AC500 PLC architecture, enabling precise control and monitoring of industrial processes. Its core functions include real-time data processing, communication protocol support, and integration with various I/O modules. Key advantages of the PM803F include its compact design, advanced diagnostics, and compatibility with ABB’s modular automation solutions.
2. Product Parameters
Parameter
Specification
Processor Type
32-bit ARM Cortex-M4
Memory
512 KB program memory, 256 KB data memory
Communication Interfaces
Ethernet/IP, Modbus RTU, CANopen
I/O Expansion
Supports up to 1,024 I/O points
Power Supply
24 V DC
Operating Temperature
-25°C to +60°C
Certifications
CE, UL, RoHS

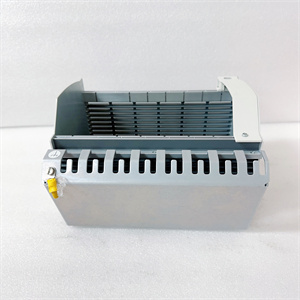

PM803F 3BDH000530R1
3. Advantages and Features
High Performance: The PM803F delivers a processing speed of 0.15 ms/kB, ensuring rapid response to dynamic industrial environments.
Modular Design: Its compact size (110 x 100 x 125 mm) and DIN-rail mounting facilitate easy installation and scalability.
Enhanced Diagnostics: Built-in LED indicators and error logging simplify troubleshooting, reducing downtime by up to 30% compared to legacy systems.
4. Application Areas and Use Cases
The PM803F is widely used in manufacturing, energy, and water treatment sectors. For example, a chemical plant in China achieved 20% energy savings after integrating the PM803F into its process control system, thanks to its optimized power management capabilities.
5. Competitor Comparison
In comparison to similar controllers, the PM803F offers a broader range of communication protocols and higher I/O capacity, making it suitable for complex industrial networks. Its rugged design also ensures reliable operation in harsh conditions, including high humidity and vibration.

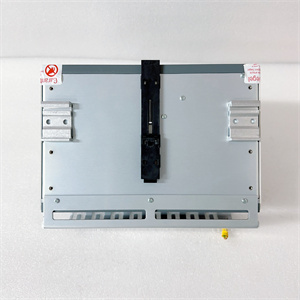

PM803F 3BDH000530R1
6. Selection Recommendations
When selecting the PM803F, consider:
System Complexity: Choose this module for projects requiring advanced communication and large I/O configurations.
Environmental Requirements: Ensure compatibility with your application’s temperature and humidity ranges.
Budget: Balance performance needs with cost efficiency, as the PM803F offers competitive pricing for its feature set.
7. Precautions
Avoid exposing the module to direct sunlight or extreme temperatures.
Regularly update firmware to benefit from security patches and performance improvements.
Follow ABB’s guidelines for proper grounding and surge protection during installation.
山西鑫业达国际贸易有限公司 is your trusted partner for PM803F 3BDH000530R1 and other automation spare parts. Visit www.xydcontrol.com or contact us for sales and technical support.
