Grid-Friendly Operation: AFE technology ensures low harmonic distortion, eliminating the need for external filters.
Scalability: Supports up to 8 units in parallel for systems requiring up to 1.2 MW of DC power.
Reliability: 150,000-hour MTBF and IP54 rating for harsh industrial environments.
Manufacturer: ABB Part number: PPD113B01-10-150000
Our extensive ABB catalogue, including
: PPD113B01-10-150000
, is available now for dispatch to the worldwide.
ABB PPD113B01-10-150000 High-Power DC Power Supply Module for Industrial and Energy Applications
The PPD113B01-10-150000 is a 150 kW DC power supply module designed by ABB for critical infrastructure in industries such as manufacturing, oil & gas, and renewable energy. Engineered for high reliability and efficiency, this module provides stable DC output for motor drives, electrochemical processes, and grid-connected systems.
1. Product Overview
The PPD113B01-10-150000 converts three-phase AC input to regulated DC power, ensuring seamless operation in environments with voltage fluctuations. Its active front-end (AFE) technology minimizes harmonic distortion (<3% THD), improving power quality and compliance with international standards like IEEE 519. With parallel redundancy support, it delivers 99.99% uptime for mission-critical applications.
2. Technical Specifications
Parameter
Specification
Input Voltage
3×400 V AC (±15%)
Output Voltage
240–800 V DC (adjustable)
Rated Power
150 kW
Efficiency
96.5% at full load
Current Capacity
187.5 A (continuous)
Control Interface
Modbus RTU, Profibus DP, Ethernet/IP
Protection Features
Overvoltage, overcurrent, overtemperature
Cooling
Forced air (IP54 enclosure)
Dimensions
1200 mm × 800 mm × 600 mm
Weight
350 kg

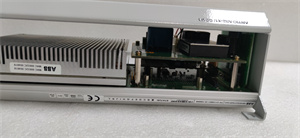

PPD113B01-10-150000
3. Key Advantages
High Efficiency: 96.5% efficiency reduces energy costs by up to 20% compared to legacy systems.
Grid-Friendly Operation: AFE technology ensures low harmonic distortion, eliminating the need for external filters.
Scalability: Supports up to 8 units in parallel for systems requiring up to 1.2 MW of DC power.
Reliability: 150,000-hour MTBF and IP54 rating for harsh industrial environments.
4. Applications & Case Studies
Water Treatment: Powers electrolyzers in desalination plants, maintaining stable DC for chlorine generation.
Mining: Provides consistent power to electric vehicle charging stations in underground mines.
Solar Farms: Converts solar AC to DC for grid integration, reducing inverter stress.
Case Study: A European steel mill deployed PPD113B01-10-150000 to power electric arc furnaces. The module’s stability reduced production downtime by 40%, translating to €1.2 million in annual savings.
5. Competitor Comparison
Efficiency: 96.5% vs. 94–95% in similar modules, reducing long-term energy costs.
Power Density: 150 kW in 1.2 m³ vs. 120–130 kW in 竞品，offering higher output per unit volume.
Power Requirements: Choose the PPD113B01-10-150000 for systems needing 150 kW; opt for PPD113B01-05-75000 for 75 kW.
Environment: Use IP54 models for dusty or humid locations; select IP20 for cleanroom settings.
Budget: Balances cost with performance, offering a 15% lower total cost of ownership than premium competitors.
7. Installation & Maintenance Notes
Ventilation: Ensure adequate airflow to prevent overheating in enclosed spaces.
Grounding: Follow ABB’s guidelines for proper earthing to avoid electrical hazards.
Monitoring: Use ABB’s Ability™ Condition Monitoring to predict component failures and schedule maintenance.
Shanxi Xinyeda International Trading Co., Ltd. stocks new and certified refurbished PPD113B01-10-150000 modules, backed by a 2-year warranty. Our technical team provides on-site commissioning and remote support. Visit www.xydcontrol.com to explore our ABB power solutions or contact us for customized quotes.
