ABB UFC762AE101 3BHE006412R0101

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Module Type	Analog/Digital I/O Module (Mixed Signal)
Compatibility	ABB AC 800M Controller, Industrial IT System
Signal Types	– Analog Inputs: 4–20 mA, 0–10 V – Digital Outputs: 24 V DC, 0.5 A (max per channel)
Channels	16 channels (8 analog inputs, 8 digital outputs)
Resolution	12-bit analog input, 1-bit digital output
Communication Protocol	PROFIBUS DP, Ethernet/IP (via controller)
Power Supply	24 V DC ±10% (from backplane)
Dimensions (W×H×D)	36 mm × 175 mm × 150 mm (1.42″ × 6.89″ × 5.91″)
Weight	0.3 kg (0.66 lb)
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Certifications	CE, UL, CSA, ATEX (for hazardous areas)

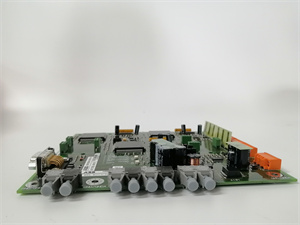

UFC762AE101 3BHE006412R0101

3. Advantages and Features

• Mixed Signal Flexibility: The UFC762AE101 3BHE006412R0101 combines analog and digital I/O in a single module, reducing the need for multiple devices and simplifying cabinet layout. In a chemical plant application, this feature cut installation time by 25% compared to separate analog and digital modules.
• Hot-Swap Capability: Allows safe replacement of the module without powering down the system, minimizing production interruptions. ABB’s built-in self-diagnostic tools alert users to faults like open circuits or overloads, with diagnostic coverage exceeding 95% of potential failures.
• High-Speed Processing: Supports fast data transfer rates (up to 12 Mbps via PROFIBUS), ensuring real-time control and monitoring for time-sensitive processes.
• Robust Design: Built with reinforced metal shielding for EMI/RFI protection and IP20-rated enclosure, suitable for use in harsh industrial environments with high vibration or electrical noise.

4. Application Areas and Application Cases

• Oil and Gas: Used in pipeline monitoring systems to acquire analog pressure/temperature data and control digital valves.
• Power Generation: Manages analog inputs from sensors in steam turbines and digital outputs for breaker controls in power plants.
• Water/Wastewater Treatment: Controls pumps and monitors flow rates in treatment facilities, ensuring compliance with environmental standards.

5. Competitive Comparison

Compared to non-ABB mixed-signal I/O modules, the UFC762AE101 3BHE006412R0101 offers deep integration with ABB’s AC 800M controllers, eliminating compatibility issues and reducing configuration time. Its advanced diagnostics and hot-swap functionality outperform many generic alternatives, which often lack comprehensive fault detection or require system shutdown for maintenance. The module’s ATEX certification also makes it a preferred choice for hazardous environments, where third-party modules may lack equivalent safety approvals.

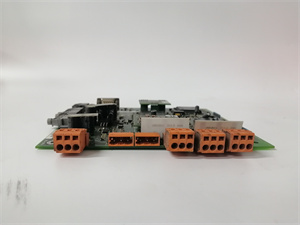

UFC762AE101 3BHE006412R0101

6. Selection Recommendations

• Signal Requirements: Verify that the module’s analog/digital channel mix matches your application’s I/O needs (e.g., more analog inputs for sensor-heavy setups).
• Environmental Conditions: Prioritize this module for high-temperature, high-noise, or hazardous areas where robust EMI shielding and safety certifications are critical.
• System Scalability: Ensure the AC 800M controller has available backplane slots and processing capacity to support the module’s data throughput.
• Budget vs. Performance: While premium-priced, the module’s durability and lifecycle support justify long-term cost savings compared to cheaper, less reliable alternatives.

7. Precautions

• Installation: Always disconnect power from the backplane before installing or removing the module, even during hot-swapping, to avoid electrostatic discharge (ESD) damage.
• Cabling: Use shielded twisted-pair cables for analog signals to minimize interference, and separate power cables from signal cables to prevent cross-talk.
• Configuration: Use ABB’s Control Builder M software to correctly map I/O channels and enable diagnostics; incorrect settings may cause signal errors or module malfunctions.
• Maintenance: Regularly inspect the module for loose connections or physical damage, especially in high-vibration environments. Replace faulty modules promptly to maintain system integrity.
