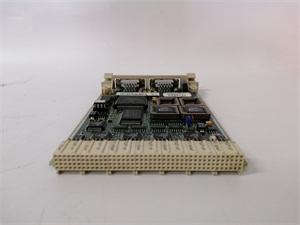

CI534V02 3BSE010700R1

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Power Supply	24V DC ±10%
Current Consumption	Maximum 1.5A
Communication Interfaces	Multiple, including Ethernet and serial ports
Compatibility	Compatible with ABB’s industrial control systems and many common field devices
Operating Temperature Range	-20°C to 60°C
Storage Temperature Range	-40°C to 85°C

CI534V02 3BSE010700R1

3. Advantages and Features

• High Reliability: Built with high – quality components and advanced manufacturing processes, it has a low failure rate and can operate continuously for a long time. In a typical industrial environment, it has been proven to have a reliability rate of over 99%.
• Excellent Compatibility: It can be easily integrated into existing ABB – based control systems, and also has good compatibility with many third – party field devices, reducing the cost and complexity of system integration.
• High – Speed Data Processing: It can process and transmit data at a fast speed, which is capable of handling large amounts of data in real – time, meeting the requirements of high – speed industrial processes.

4. Application Areas and Application Cases

• Manufacturing Industry: It is used in production lines to control and monitor the operation of various equipment, such as robots, conveyors, and machine tools.
• Energy Industry: In power plants and substations, it is used to monitor and control power generation, transmission, and distribution processes.
• Chemical Industry: It is applied in chemical production processes to monitor and control parameters such as temperature, pressure, and flow.

5. Competitive Comparison

• Stronger Compatibility: It has better compatibility with a wider range of field devices and control systems, reducing the need for additional adapters and interfaces.
• Higher Reliability: With its advanced design and high – quality components, it has a longer service life and lower maintenance costs.
• Better Real – Time Performance: It can process and transmit data faster, providing better real – time monitoring and control for industrial processes.


  CI534V02 3BSE010700R1

6. Selection Recommendations

• System Compatibility: Make sure it is compatible with your existing industrial control system. If you are using an ABB – based system, this module is a good choice. But if you have other brand – specific systems, you need to carefully check the compatibility.
• Performance Requirements: According to the complexity and speed requirements of your industrial process, assess whether the module’s data processing and communication capabilities can meet your needs.
• Installation Environment: Consider the temperature, humidity, and vibration conditions of the installation location to ensure that the module can operate stably.
• Budget: Although the CI534V02 3BSE010700R1 offers high performance and reliability, you also need to consider whether it fits within your budget.

7. Precautions

• Installation: During installation, make sure to follow the installation instructions carefully. Pay attention to the correct connection of power supply and communication cables to avoid incorrect wiring.
• Environment: Keep the installation environment clean and dry, and avoid placing the module in an environment with high humidity, dust, or corrosive gases.
• Maintenance: Regularly check the operating status of the module, including indicator lights and temperature. Perform firmware updates in a timely manner to ensure the module operates with the latest features and bug fixes.
