TheABB DSDX452 is a high-performance digital input/output (I/O) module designed for industrial automation and distributed control systems (DCS), part of ABB’s ADVANT OCS and S400 I/O series. As a versatile Basic I/O Unit, the DSDX452 integrates 20 digital inputs (24 V DC) and 12 relay outputs (24–240 V AC/DC), enabling real-time monitoring and control of machinery, sensors, and actuators in harsh industrial environments. Its compact design (22.9 cm × 10.2 cm × 25.4 cm) and DIN rail mounting facilitate easy integration into panel systems. The module supports protocols like PROFIBUS and Ethernet, ensuring compatibility with ABB’s Master, AC 800M, and Freelance platforms. With hot-swap capability and IP20 protection, the DSDX452 minimizes downtime and withstands vibration, dust, and temperature fluctuations (-20°C to +60°C).
2. Technical Parameters
Parameter
Specification
Product Type
Digital I/O Module (Basic I/O Unit)
Input Channels
20 isolated digital inputs (24 V DC, sinking/sourcing)
Output Channels
12 relay outputs (24–240 V AC/DC, 2 A max.)
Voltage Range
Input: 24 V DC (±15%); Output: 24–240 V AC/DC
Response Time
Input: ≤5 ms; Output: ≤10 ms (relay operation)
Compatibility
ABB ADVANT OCS, S400 I/O, AC 800M, Freelance
Interface
Plug-and-play via S400 I/O bus (E-bus technology)
Mounting
DIN rail (35 mm)
Operating Temperature
-20°C to +60°C (humidity: 5–95% non-condensing)
Certifications
CE, UL, IEC 61131-2 (EMC/EMI compliance)
Weight
2.3 kg (modular, lightweight design)

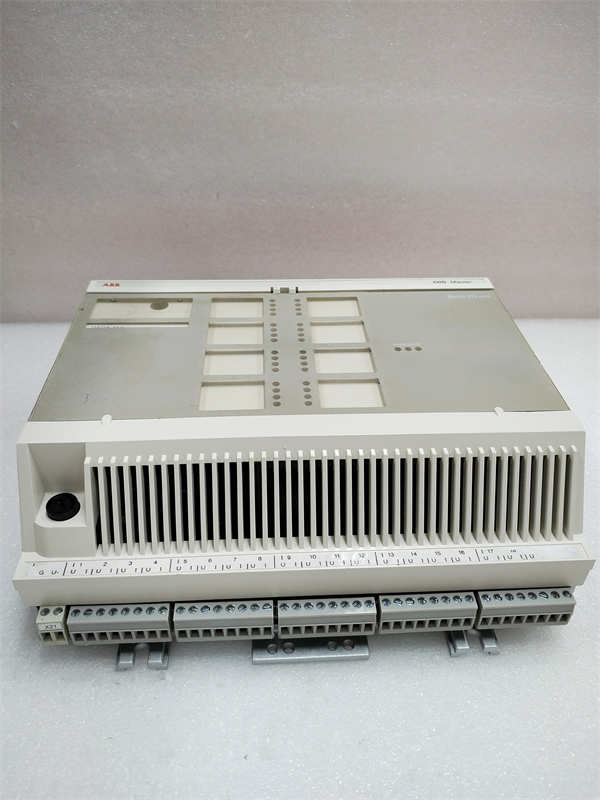

DSDX452
3. Advantages and Features
Mixed I/O Configuration: 20 DI + 12 DO (relay) in a single unit, reducing panel space by 30% vs. separate modules.
Relay Output Flexibility: Supports high-voltage switching (240 V AC/DC) for direct actuator control (e.g., valves, motors).
Isolation & Noise Immunity: 500 V AC channel isolation and EMC shielding ensure reliable operation in noisy environments (MTBF: 120,000 hours).
Hot-Swap & Diagnostics: Field-replaceable without system shutdown; built-in LED indicators for channel status (reduces troubleshooting time by 40%).
Variants for Special Needs: DSDX452L (low-power relay version: 200 mA max.) for sensitive applications (e.g., 24 V DC solenoids).
Energy: Substations (status monitoring of circuit breakers, controlling HVAC systems).
Process Industries: Chemical plants (regulating pumps, valves via relay outputs).
Case Study: A water treatment plant deployed the DSDX452 to manage 20 sensor inputs (level, pressure) and 12 relay outputs (pump starters). Its high-voltage relays eliminated the need for external signal converters, reducing installation costs by 20%. Hot-swap capability enabled rapid module replacement during operation, maintaining 99.8% uptime.
5. Competitive Positioning
Compared to similar mixed I/O modules:
Higher Channel Density: 32 I/O points (20 DI + 12 DO) vs. typical 16–24 points in alternatives.
Wide Voltage Output: Supports 24–240 V AC/DC (vs. limited 24 V DC in many 竞品), ideal for multi-voltage installations.
ABB Ecosystem Integration: Native compatibility with ABB’s control systems, reducing integration complexity (no custom programming required).

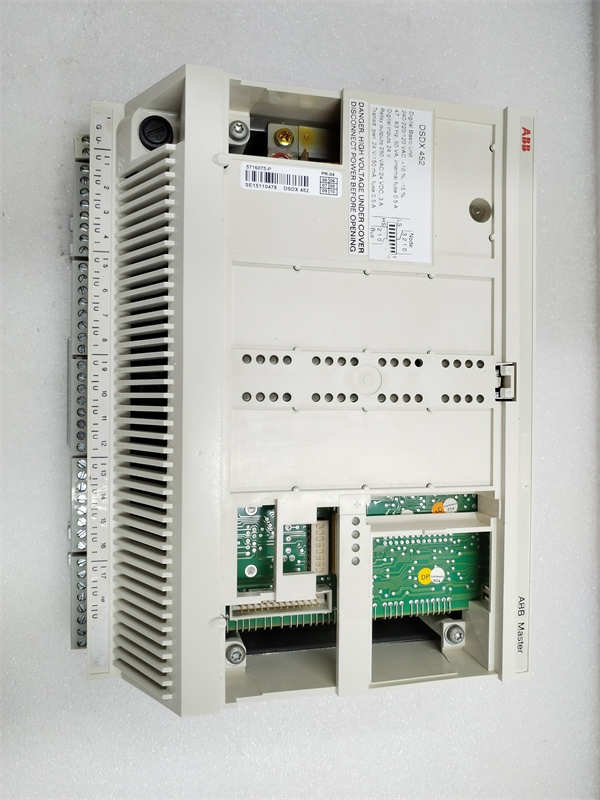

DSDX452
6. Selection Recommendations
Voltage Requirements: Choose DSDX452 for standard relay loads (2 A max.) or DSDX452L for low-power applications (200 mA max.).
Channel Mix: Opt for 20 DI/12 DO configuration for balanced monitoring and control needs.
Environment: Pair with IP65 enclosures for outdoor use; ensure proper grounding (PE terminal required for EMC compliance).
Expansion: Use S400 I/O bus for scalable setups (supports up to 255 modules per network).
7. Installation and Maintenance Notes
Wiring: Use 0.5–1.5 mm² cables; torque screw terminals to 0.5–0.7 N·m (input: screw-type; output: screw-type relay terminals).
Relay Maintenance: Replace relays every 500,000 operations (typical lifespan); use ABB-approved spares (e.g., DSQC652 for redundancy).
Firmware: Update via ABB’s System 800xA or Service Tool (latest version: 4.3.2) for protocol updates.
Safety: Disconnect power before module replacement; ensure compliance with IEC 61010-1 safety standards.
声明: 山西鑫业达国际贸易有限公司 is your trusted partner for ABB DSDX452 and automation spare parts. We offer new/refurbished units, repairs, and technical support. Visit www.xydcontrol.com or contact us for tailored solutions.
