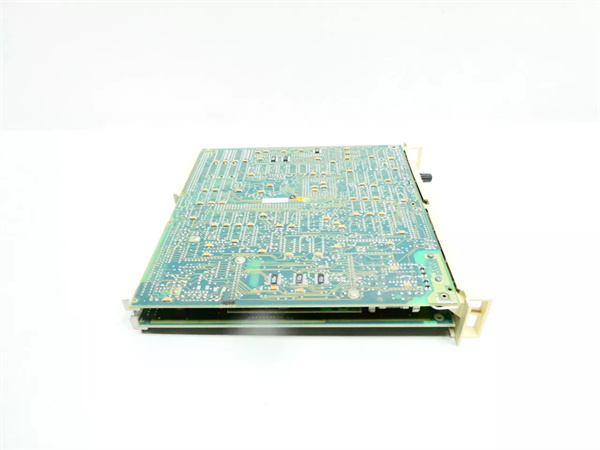

DSPC171 57310001-CC

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Module Type	Digital Signal Processor (DSP)
Voltage	Internal 5V DC (DC5V indicator)
Communication Interfaces	Ethernet, Serial (MPI/DP for PLC integration)
Processor Mode	RUN, RUN-P (programmable read/write), STOP, MRES (module reset)
Status Indicators	SF (system fault), BATF (battery fault), DC5V, FRCE (forced I/O), RUN, STOP
Compatibility	ABB PLC systems (e.g., S7-400 series), distributed I/O networks
Dimensions	Compact form factor (35mm width for modular integration)
Real-Time Performance	Low latency, high-speed arithmetic and logic operations

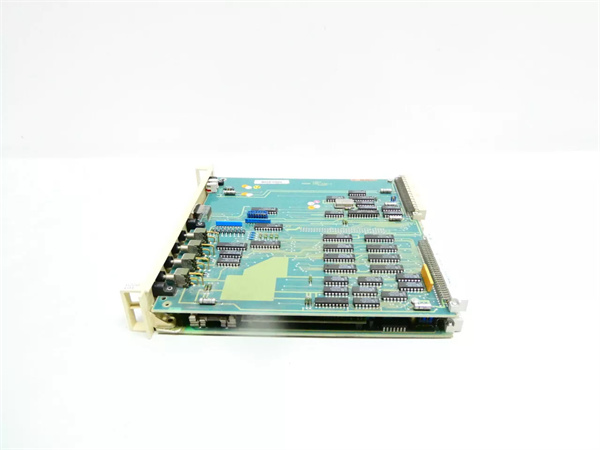

DSPC171 57310001-CC

3. Advantages and Features

• High-Speed Signal Processing: The DSPC171 57310001-CC offers advanced DSP capabilities, supporting complex control algorithms (e.g., PID, motion control) with minimal latency, ensuring precise real-time performance.
• Flexible Communication: Multiple interfaces (Ethernet, MPI, DP) enable seamless integration with programming devices, HMIs, and distributed I/O systems, enhancing system scalability.
• Reliable Operation: Built with industrial-grade components, the module withstands voltage fluctuations, temperature variations, and electromagnetic interference (EMI), ensuring uptime in harsh environments.
• User-Friendly Programming: ABB’s integrated development tools (e.g., STEP 7) simplify configuration, debugging, and firmware updates, reducing engineering time.
• Status Monitoring: Clear LED indicators (RUN, STOP, FRCE) provide real-time diagnostics, enabling quick fault identification and resolution.

4. Application Areas and Case Studies

• Manufacturing: Deployed in a automotive assembly line to control robotic arms via real-time motion algorithms, reducing cycle time by 15% and improving precision.
• Energy: Used in a power plant’s turbine control system to process sensor data, optimize fuel efficiency, and maintain stable output under varying loads.
• Water Treatment: Implements PID control for pump systems, ensuring consistent water pressure and reducing energy consumption by 10%.

5. Competitive Comparison

• Superior Integration: Native support for ABB’s PLC ecosystem reduces compatibility issues and simplifies system design.
• Enhanced Diagnostics: Real-time status indicators and fault logging improve maintenance efficiency compared to modules with limited monitoring capabilities.
• Scalability: Supports up to four expandable communication interfaces, enabling integration with diverse industrial protocols (Profibus, DeviceNet) without additional hardware.


  DSPC171 57310001-CC

6. Selection Recommendations

• Compatibility: Ensure compatibility with your PLC system (e.g., ABB S7-400) and existing network protocols.
• Performance Requirements: Evaluate processing speed and latency needs for your application (e.g., motion control vs. basic I/O monitoring).
• Installation Environment: Consider temperature ranges (0–60°C), vibration resistance, and EMI shielding requirements for your site.
• Budget: Balance performance needs with cost; the DSPC171 57310001-CC offers a cost-effective solution for mid-to-high complexity applications.

7. Precautions

• Grounding: Follow ABB’s grounding guidelines to minimize EMI and ensure stable operation. Incorrect grounding may cause system faults.
• Power Supply: Use a stable 5V DC power source to avoid voltage fluctuations that could damage the module.
• Firmware Updates: Regularly update firmware via ABB’s official tools to access new features and security patches.
• Maintenance: Inspect battery status (BATF indicator) periodically; replace batteries under ABB-recommended conditions to prevent data loss.
• Installation: Ensure proper module seating in the PLC rack to avoid contact issues. Follow anti-static procedures during handling.
