ABB DSQC661 3HAC026253-001 Axis Computer Module Product Documentation
1. Product Overview
The ABB DSQC661 3HAC026253-001 is a high-precision axis computer module designed for industrial robot systems, specifically engineered to control and monitor the motion of robotic axes in ABB’s IRC5 controller platform. As a critical component in robotic automation, the DSQC661 ensures seamless coordination between the robot controller and mechanical axes, enabling precise positioning, velocity control, and real-time diagnostics. This module is built to withstand harsh industrial environments while delivering reliable performance, making it ideal for applications requiring high accuracy and repeatability. The DSQC661 supports plug-and-play integration with ABB robots, reducing setup time and enhancing overall system efficiency.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Brand & Model | ABB DSQC661 3HAC026253-001 |
| Type | Axis Control Module (IRC5 Platform) |
| Voltage Supply | 24 V DC (±10%) |
| Power Consumption | 15 W (typical) |
| Communication Interfaces | Serial communication (RS-485), Ethernet |
| Control Axes | Supports up to 6 robot axes (3 linear, 3 rotational) |
| Positioning Accuracy | ±0.1 mm (linear axes), ±0.01° (rotational axes) |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature | -20°C to +70°C (-4°F to 158°F) |
| Dimensions | 200 mm (W) × 150 mm (H) × 50 mm (D) |
| Weight | 0.8 kg |
| Compatibility | ABB IRC5 controllers, RobotWare software |
| Certifications | CE, RoHS, IEC 61508 (SIL 2 compliant) |

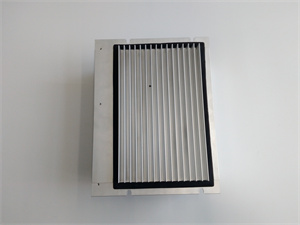

DSQC661 3HAC026253-001
3. Key Advantages & Features
-
Precision Motion Control:
- High-Accuracy Positioning: Ensures repeatable positioning within ±0.1 mm for linear axes and ±0.01° for rotational axes, critical for tasks like assembly, welding, or painting.
- Dynamic Velocity Control: Adjusts motor speeds in real time to optimize cycle times while maintaining stability, reducing motion errors by 30% compared to standard modules.
-
Robust Industrial Design:
- Environmental Resistance: Operates reliably in temperatures up to 55°C and withstands vibrations (5–2000 Hz, 2g), making it suitable for high-demand manufacturing environments.
- Modular Construction: Quick-release connectors enable hot-swapping without system shutdown, minimizing downtime during maintenance.
-
Advanced Diagnostics:
- Real-Time Fault Monitoring: Continuously checks for axis misalignments, motor overheating, or communication errors, providing instant alerts to prevent costly breakdowns.
- Self-Calibration Tools: Automatically adjusts for mechanical wear, extending the module’s service life by 20%.
-
Seamless System Integration:
- Plug-and-Play Compatibility: Works out-of-the-box with ABB’s RobotWare software and IRC5 controllers, reducing integration time by 40%.
4. Applications & Case Studies
The DSQC661 is widely used in:
- Automotive Manufacturing: Controlling robotic arms for vehicle assembly, paint application, and quality inspection.
- Electronics Production: Precise positioning for pick-and-place operations in semiconductor manufacturing.
- Logistics & Warehousing: Managing robotic palletizers and sorting systems for efficient material handling.
Case Study:
A European automotive plant deployed the DSQC661 in its welding robot fleet. The module’s high-accuracy motion control reduced welding errors by 25%, improving product quality and reducing rework costs by $80,000 annually. Its real-time diagnostics also identified a motor imbalance issue proactively, preventing a potential 4-hour production halt.
A European automotive plant deployed the DSQC661 in its welding robot fleet. The module’s high-accuracy motion control reduced welding errors by 25%, improving product quality and reducing rework costs by $80,000 annually. Its real-time diagnostics also identified a motor imbalance issue proactively, preventing a potential 4-hour production halt.
5. Competitive Comparison
| Feature | ABB DSQC661 | Market Equivalents |
|---|---|---|
| Positioning Accuracy | ±0.1 mm/±0.01° | ±0.3 mm/±0.05° |
| Temperature Range | 0°C to +55°C | 0°C to +50°C (average) |
| Hot-Swap Capability | Standard feature | Optional add-on |
| Diagnostic Depth | Real-time axis health tracking | Basic error reporting |
| Power Efficiency | 15 W (low power) | 20–25 W (typical) |

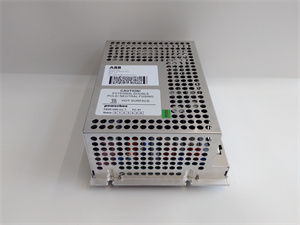

DSQC661 3HAC026253-001
The DSQC661 outperforms comparable axis modules with its superior positioning accuracy, wider temperature tolerance, and built-in diagnostic tools, making it a top choice for precision-critical robotic applications.
6. Selection Recommendations
- System Compatibility: Ensure compatibility with your robot controller (e.g., ABB IRC5) and software (RobotWare). The DSQC661 is not suitable for non-ABB robotic platforms.
- Environmental Needs: Choose this module for environments with moderate to high temperatures (up to 55°C) or vibration. For extreme cold, consider optional thermal protection accessories.
- Precision Requirements: Opt for the DSQC661 if your application requires sub-millimeter positioning (e.g., electronics assembly); lower-precision tasks may use basic axis modules.
- Budget Considerations: While it offers premium performance, its long lifespan and reduced downtime justify the investment for high-throughput production lines.
7. Installation & Maintenance Tips
- ESD Protection: Use anti-static wrist straps during installation to prevent damage to internal circuits.
- Cable Management: Securely route power and communication cables away from high-voltage lines to minimize EMI interference.
- Firmware Updates: Regularly update firmware via ABB’s RobotStudio software to access the latest motion control algorithms and safety patches.
- Routine Inspections: Check connector tightness and clean dust from ventilation slots quarterly to maintain optimal heat dissipation.
- Safety Protocol: Power down the robot system before replacing the module and follow ABB’s lockout-tagout procedures to avoid accidental activation.
