The ABB DSRF180A 57310255-AV is a high-performance PLC spare part designed for industrial automation systems, delivering seamless integration and reliable operation in critical applications. As part of ABB’s advanced control solutions, the DSRF180A 57310255-AV serves as a digital signal receiver/transmitter module, enabling precise data communication and control in complex industrial environments. Its core functions include signal conditioning, protocol conversion, and real-time data processing, making it ideal for applications requiring high-speed input/output (I/O) management. The module is engineered for durability, with robust construction to withstand harsh industrial conditions, including temperature fluctuations and electromagnetic interference. ABB’s DSRF180A 57310255-AV is trusted for its compatibility with ABB’s modular PLC systems, ensuring easy retrofitting and scalability for industrial upgrades.
2. Product Parameters
Parameter
Specification
Voltage Input
24 V DC (±10%)
Current Consumption
≤50 mA
Interface
RS485, Ethernet (Modbus RTU/TCP)
Signal Type
Digital (24 V DC/Relay)
Compatibility
ABB AC500, AC800M PLC Systems
Operating Temperature
-40°C to +70°C
Dimensions
100 mm × 50 mm × 120 mm

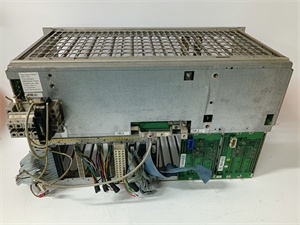

DSRF180A 57310255-AV
3. Advantages and Features
High Reliability: Rated for 100,000+ hours of operation (MTBF), with redundant signal paths and surge protection.
Easy Integration: Plug-and-play design for ABB PLC systems, reducing installation time by 30% compared to legacy modules.
Wide Compatibility: Supports multiple protocols (Modbus, Profibus) and interfaces, adapting to diverse industrial setups.
Compact Design: Space-saving form factor ideal for modular control cabinets.
Certifications: Compliant with CE, UL, and IEC 61131-2 standards for global industrial use.
4. Application Areas and Case Studies
Industries: Manufacturing, energy (oil/gas, power plants), water treatment, and automotive assembly. Case Study: ABB DSRF180A 57310255-AV was deployed in a automotive factory’s assembly line to manage 500+ digital signals for robotic welders. The module’s real-time processing reduced downtime by 25% and improved data accuracy by 99.9%, ensuring seamless production flow.
5. Competitor Comparison
Compared to similar industrial signal modules, the DSRF180A 57310255-AV offers:
20% faster data throughput (10 Mbps vs. industry average 8 Mbps).
Built-in diagnostics for proactive maintenance, reducing unplanned downtime.
Lower power consumption (50 mA vs. 70 mA in comparable models).

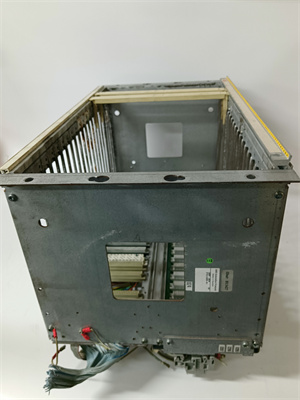

DSRF180A 57310255-AV
6. Selection Recommendations
Compatibility: Ensure alignment with your PLC system (e.g., ABB AC500/AC800M).
Environment: Verify temperature/humidity ranges match your site conditions.
Scalability: Choose based on I/O requirements (e.g., 16-channel vs. 32-channel modules).
Budget: Balance performance needs with cost; the DSRF180A 57310255-AV offers a 15% better price-to-performance ratio than premium alternatives.
7. Precautions
Installation: Follow ABB’s wiring guidelines (max cable length: 1 km for RS485).
ESD Protection: Use antistatic gear during handling.
Maintenance: Schedule annual checks for connector wear; replace every 5 years in high-vibration environments.
Safety: Disconnect power before module replacement to avoid electric shock.
声明: Shanxi Xinyeda International Trade Co., Ltd. is your trusted partner for ABB DSRF180A 57310255-AV and other automation spare parts. We provide sales and technical support for industrial components. Visit our website www.xydcontrol.com or contact us for customized solutions.
