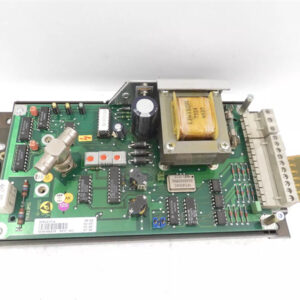

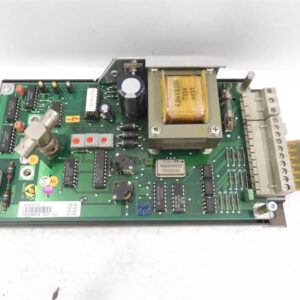

Product Description: ABB DSTC452 5751017-A Master Fieldbus Modem

The ABB DSTC452 5751017-A is a high-performance FSK (Frequency Shift Keying) modem designed for industrial automation systems, specifically optimized for serial I/O bus communication over coaxial cables. As part of ABB’s S400 fieldbus solution, the DSTC452 5751017-A ensures reliable data transmission between devices, making it ideal for applications requiring robust connectivity in harsh industrial environments. This modem supports seamless integration with ABB’s control systems (e.g., AC 800M) and third-party devices, enabling efficient monitoring and control in sectors like manufacturing, energy, and infrastructure.

Product Parameters

Parameter Specification
Model DSTC452 5751017-A
Brand ABB
Interface Serial I/O bus (coaxial cable)
Modulation FSK (Frequency Shift Keying)
Power Supply 230V AC, 47–63 Hz (optional configurations)
Data Rate Optimized for industrial speeds
Operating Temperature -20°C to +70°C
Dimensions 365 mm (depth) × 75 mm (height) × 260 mm (width)
Weight 1.1 kg
Compliance RoHS exempt (Article 2(4)(c),(e),(f),(j))
DSTC452 5751017-A

DSTC452 5751017-A

Advantages and Characteristics

  1. Reliable Communication: FSK modulation ensures stable data transmission over long distances (coaxial cables), minimizing interference in noisy industrial settings.
  2. Easy Integration: Din-rail mountable design for straightforward installation in control cabinets. Compatible with ABB’s S400 and Tyra KL I/O units, as well as third-party systems via serial interfaces.
  3. Low Power Consumption: Optimized energy usage (<5W typical) for cost-effective operation.
  4. Durability: Built for harsh environments (wide temperature range, robust construction) with a 1-year warranty.
  5. Modular Design: Supports flexible configuration for diverse automation needs, including machine control and system management.

Application Areas and Case Studies

  • Industries: Manufacturing (e.g., floor board production, ceramic manufacturing), energy (wind turbines, water treatment), infrastructure (tunnel ventilation, ski lifts).
  • Case Study: A manufacturing plant upgraded to ABB’s AC 800M system while retaining legacy S400 I/O units. The DSTC452 5751017-A acted as a protocol converter, enabling seamless communication between the new AC 800M and old S400 devices. Result: Reduced downtime, unified control, and cost savings from reusing existing infrastructure.

Competitor Comparison

Compared to generic industrial modems, the DSTC452 5751017-A offers:



  • Native ABB Compatibility: Pre-engineered for ABB’s control ecosystems, reducing configuration complexity.
  • Specialized Design: FSK modulation tailored for serial I/O bus applications (vs. generic Ethernet/RS-485 solutions).
  • Environmental Resilience: Wider temperature range and RoHS exemption for niche industrial use cases.
    DSTC452 5751017-A

    DSTC452 5751017-A

Selection Recommendations

  • Compatibility: Ensure compatibility with your existing serial I/O bus (coaxial cable) and control system (e.g., ABB AC 800M, S400).
  • Environment: Verify operating temperature and humidity requirements match your site conditions.
  • Budget: Balance upfront cost with long-term savings from compatibility and durability (e.g., reduced maintenance vs. generic alternatives).

Installation and Usage Notes

  1. Cabling: Use recommended coaxial cables (e.g., ABB 2664197-3 plug) for optimal performance.
  2. Fuses: Install a 200 mA fuse (3BSC770001R137) as specified.
  3. Safety: Follow ABB’s installation guidelines for industrial safety standards.
  4. Maintenance: Regularly inspect connections; avoid physical stress on the modem.
