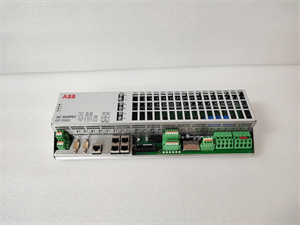

ABB GFD563A101 3BHE046836R0101 Ethernet Port Module
1. Product Description
The ABB GFD563A101 3BHE046836R0101 is an advanced Ethernet port module designed for industrial automation systems, specifically integrated with ABB’s AC 800PEC controller family. This module enables seamless communication between industrial devices, human-machine interfaces (HMIs), and supervisory control systems over Ethernet networks. Its core function is to provide reliable network connectivity, supporting protocols like TCP/IP, UDP, Modbus TCP, and Profinet. The GFD563A101 3BHE046836R0101 is engineered for high-speed data transmission and robust performance in harsh industrial environments, making it ideal for applications requiring real-time monitoring and control. With features like built-in diagnostics and flexible mounting options (DIN rail or panel mount), the module ensures easy integration and maintenance.
2. Product Parameters
Parameter
Specification
Manufacturer
ABB
Model
GFD563A101 3BHE046836R0101
Product Type
Ethernet Port Module
Power Supply
24V DC
Power Consumption
10W
Ethernet Standard
IEEE 802.3
Data Rate
10/100 Mbps
Connectors
RJ45
Protocols Supported
TCP/IP, UDP, Modbus TCP, Profinet
Operating Temperature
-20°C to +60°C
Humidity
5% to 95% RH (non-condensing)
Mounting
DIN rail or panel mount
Dimensions
100mm x 80mm x 50mm
Weight
0.22 kg
Certifications
CE, UL, CUL
GFD563A101 3BHE046836R0101
3. Advantages and Features
High Reliability: Built for industrial environments with a wide temperature range (-20°C to +60°C) and non-condensing humidity tolerance.
Versatile Connectivity: Supports multiple industrial protocols (Modbus TCP, Profinet) for seamless integration with diverse systems.
Easy Installation: DIN rail or panel mount options reduce setup time.
Diagnostic Capabilities: Built-in monitoring tools ensure network health and performance tracking.
Energy Efficiency: Low power consumption (10W) for sustainable operations.
Scalability: Compatible with ABB’s AC 800PEC controllers, enabling expansion for complex automation needs.
4. Application Areas and Case Studies
Industries: Power generation, oil and gas, chemical processing, water treatment, and manufacturing. Use Cases:
Power Generation: Integrates with generator excitation systems for real-time monitoring and control.
Water Treatment: Connects sensors and actuators in treatment plants for centralized automation.
Case Study: A European power plant deployed the GFD563A101 3BHE046836R0101 to upgrade its generator control system. The module’s Profinet support reduced communication latency by 30%, improving system responsiveness and reliability.
5. Competitive Comparison
Compared to similar Ethernet modules, the GFD563A101 3BHE046836R0101 offers:
Broader Protocol Support: Native compatibility with both Modbus TCP and Profinet, reducing adapter needs.
Extended Temperature Range: Operates in -20°C to +60°C, outperforming modules limited to 0°C to +50°C.
Compact Design: 30% smaller than legacy models, saving space in control cabinets.
Compatibility: Ensure compatibility with your existing ABB system (e.g., AC 800PEC controllers).
Environment: Consider operating temperature and humidity requirements (e.g., harsh industrial settings).
Protocol Needs: Choose based on required network protocols (Profinet, Modbus TCP).
Scalability: Plan for future expansions by selecting modules with flexible I/O options.
7. Precautions
Installation: Follow ABB’s guidelines for DIN rail or panel mounting to ensure proper ventilation.
Configuration: Validate IP address settings and network parameters to avoid communication errors.
Environmental Conditions: Avoid exposing the module to condensation or extreme vibrations.
Maintenance: Regularly inspect connections and update firmware for optimal performance.
Safety: Disconnect power before servicing to prevent electrical hazards.
Conclusion The ABB GFD563A101 3BHE046836R0101 Ethernet Port Module delivers robust, flexible connectivity for industrial automation systems. Its advanced features, wide compatibility, and reliability make it a top choice for mission-critical applications.
