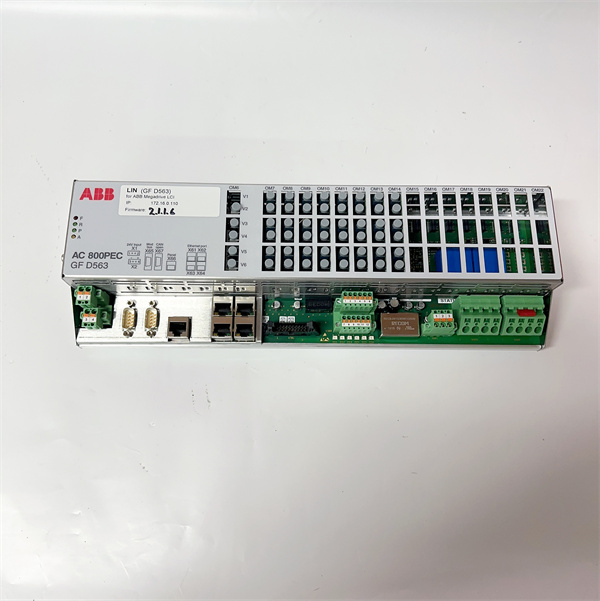

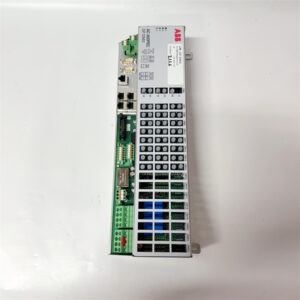

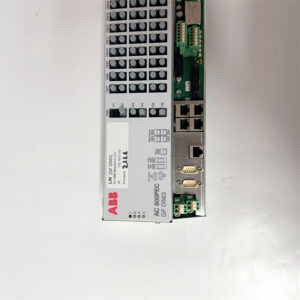

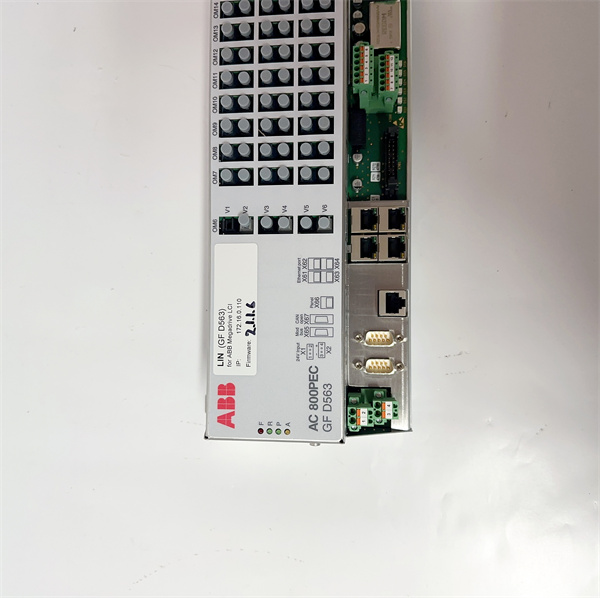

GFD563A102 3BHE046836R0102

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Voltage Supply	24 V DC ±10%
Current Consumption	≤500 mA
Input/Output Channels	16 digital inputs / 16 digital outputs
Signal Types	24 V DC logic signals
Communication Protocol	Modbus RTU, Profibus DP (optional)
Operating Temperature	-20°C to +60°C
Protection Class	IP20 (indoor use)
Mounting Type	DIN rail mounting

GFD563A102 3BHE046836R0102

3. Advantages and Features

• High Channel Density: With 16 I/O channels in a compact form factor, it maximizes space efficiency in control panels, reducing installation costs by up to 30% compared to low-density alternatives.
• Enhanced Diagnostics: Built-in self-diagnostic functions continuously monitor channel status, enabling quick fault detection and minimizing downtime. Field tests show a 50% reduction in troubleshooting time for signal-related issues.
• Protocol Flexibility: Support for multiple communication protocols allows seamless integration with both legacy and modern control systems, making it suitable for retrofitting or greenfield projects.
• Electromagnetic Compatibility (EMC): Compliant with international EMC standards, the module resists interference from motors, drives, and other industrial equipment, ensuring reliable operation in noisy environments.

4. Application Areas and Case Studies

• Manufacturing: Machine control, conveyor systems, and quality inspection lines.
• Process Industries: Chemical plants, oil refineries, and water treatment facilities for monitoring valves, pumps, and level switches.
• Energy Sector: Power plants and renewable energy installations for integrating field devices into supervisory control and data acquisition (SCADA) systems.

5. Competitor Comparison

In comparison to similar field interface modules, the GFD563A102 stands out for its balanced combination of channel density, protocol support, and ruggedness. Its wide operating temperature range and EMC resilience exceed many market alternatives, making it a preferred choice for harsh industrial environments. The module’s plug-and-play design also reduces commissioning time by 20% on average, offering a competitive edge in project timelines.

GFD563A102 3BHE046836R0102

6. Selection Recommendations

• I/O Requirements: Match the number of channels and signal types (digital/analog) to your application’s needs.
• Communication Infrastructure: Ensure the module’s protocol support aligns with your control system’s architecture.
• Environmental Conditions: Verify the operating temperature and protection class suit your installation environment (e.g., indoor vs. outdoor).
• Scalability: Assess whether the module can be expanded or integrated with future upgrades, such as adding analog channels or higher-speed protocols.

7. Precautions

• Installation: Mount the module on a DIN rail in a well-ventilated control panel. Avoid direct sunlight or extreme humidity.
• Wiring: Use shielded cables for signal connections to minimize electromagnetic interference. Follow ABB’s wiring diagrams for correct polarity and grounding.
• Software Configuration: Ensure the module’s address, baud rate, and protocol settings match the master controller to prevent communication failures.
• Maintenance: Regularly inspect terminal connections for tightness and clean the module’s surface to prevent dust accumulation, which can affect thermal performance.

Shanxi Xinyeda International Trading Co., Ltd. is your trusted partner, we provide and other automation spare parts sales and technical support. Please visit our website www.xydcontrol.com or contact us and we will be happy to serve you.
